3-1393247-8

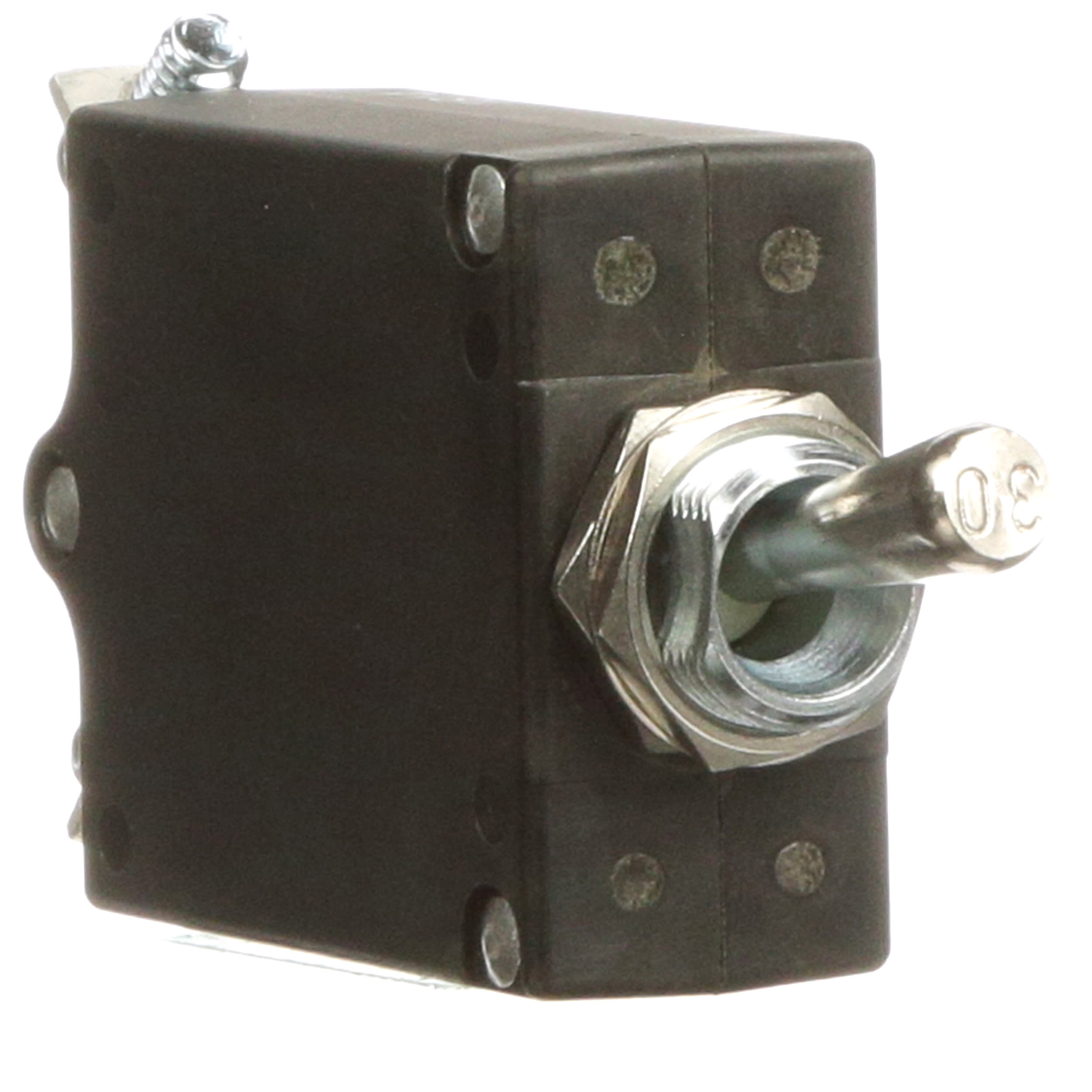

Circuit Breaker Thermal Panel Mount 30A 240VAC 50VDC 0 Pole W31 Series | TE Connectivity 3-1393247-8
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1393247-8 by TE Connectivity / P&B and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1393247-8
| Part Name | 3-1393247-8 |
| Manufacturer | TE Connectivity / P&B |
| Category | Circuit Breakers, Fuses & Protection |
| Mounting Bushing | 15/32-32 Threaded Bushing .32" Long Double "D", Silver Color |
| Current Rating (A) | 30 |
| Voltage Rating DC (V) | 50 |
| Toggle Color | Silver with Amp Rate Marking |
| Illuminated | No |
| Pole Configuration | 1 |
| TE Internal Number | 3-1393247-8 |
| Circuit Breaker Style | Toggle |
| Product Type | Circuit Breaker |
| Mounting Hardware Packaging | Assembled to Bushing |
| Voltage Rating AC (V) | 240 |
| Trip Time at 200% | 6 – 22 |
| Termination Type | 8-32 Screws 90° to Each Other |
| Panel Cutout | .47 (Diameter) |
| Interrupt Capacity | 1000A @ 50VDC or 240VAC |
| Illumination Type | No Light |
| Circuit Function | Series Trip |
| Mounting Type | Panel Mount |
| Circuit Breaker Type | Thermal |
| Mounting Options | Two Hex Nuts/Lockwasher |
| Actuator Type | Push-Pull |
| Earthing Switch | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
