3-1415538-9
Electromechanical Relay 6VDC 172Ohm 5A SPDT(20x10x10)mm THT Industrial Relay
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1415538-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

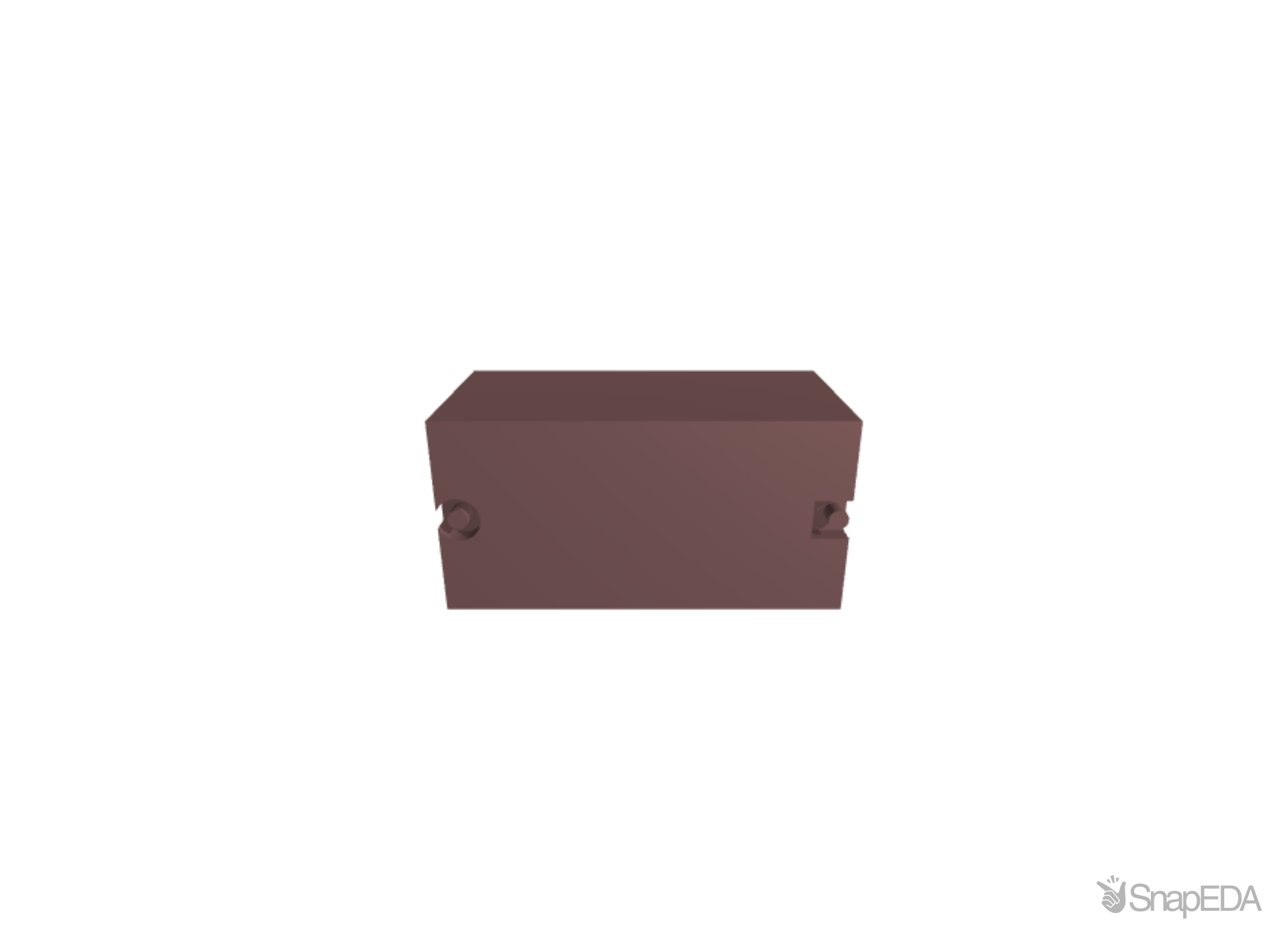

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1415538-9
| Part Name | 3-1415538-9 |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | .1764 |
| Insulation Clearance Between Contact & Coil | .126 |
| Contact Limiting Making Current (A) | 5 |
| Height Class (Mechanical) | 9 – 10 |
| Product Width | 10 |
| Insulation Initial Resistance | 10000000 |
| Coil Power Rating DC | 209 |
| Contact Limiting Continuous Current (A) | 5 |
| Contact Switching Voltage (Max) (V) | 400 |
| Coil Resistance | 172 |
| Contact Current Class (A) | 5 – 10 |
| Contact Arrangement | 1 Form C (CO) |
| Contact Voltage Rating (V) | 250 |
| Contact Number of Poles | 1 |
| Contact Plating Material | Gold |
| TE Internal Number | 3-1415538-9 |
| Product Height | .394 |
| Insulation Initial Dielectric Between Coil & Contact Class | 3500 – 4000 |
| Width Class (Mechanical) | 8 – 10 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | .787 |
| Insulation Clearance Class | 2.5 – 4 |
| Insulation Creepage Class | 3 – 5.5 |
| Coil Voltage Rating (V) | 6 |
| Packaging Method | Box & Tube |
| Environmental Ambient Temperature (Max) | 185 |
| Insulation Special Features | Tracking Index of Relay Base PTI250 |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Environmental Ambient Temperature Class | 70 – 85 |
| Length Class (Mechanical) | 16 – 20 |
| Contact Limiting Short-Time Current (A) | 5 |
| Contact Limiting Breaking Current (A) | 5 |
| Coil Power Rating Class | 200 – 300 |
| Contact Current Rating (Max) (A) | 5 |
| Insulation Creepage Between Contact & Coil | .157 |
| Environmental Category of Protection | RTII |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | AgNi90/10 |
