3-1419108-5
Electromechanical Relay 12VDC 360Ohm 16A SPST-NO (( 29mm 12.7mm 15.7mm)) THT Power Relay
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1419108-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

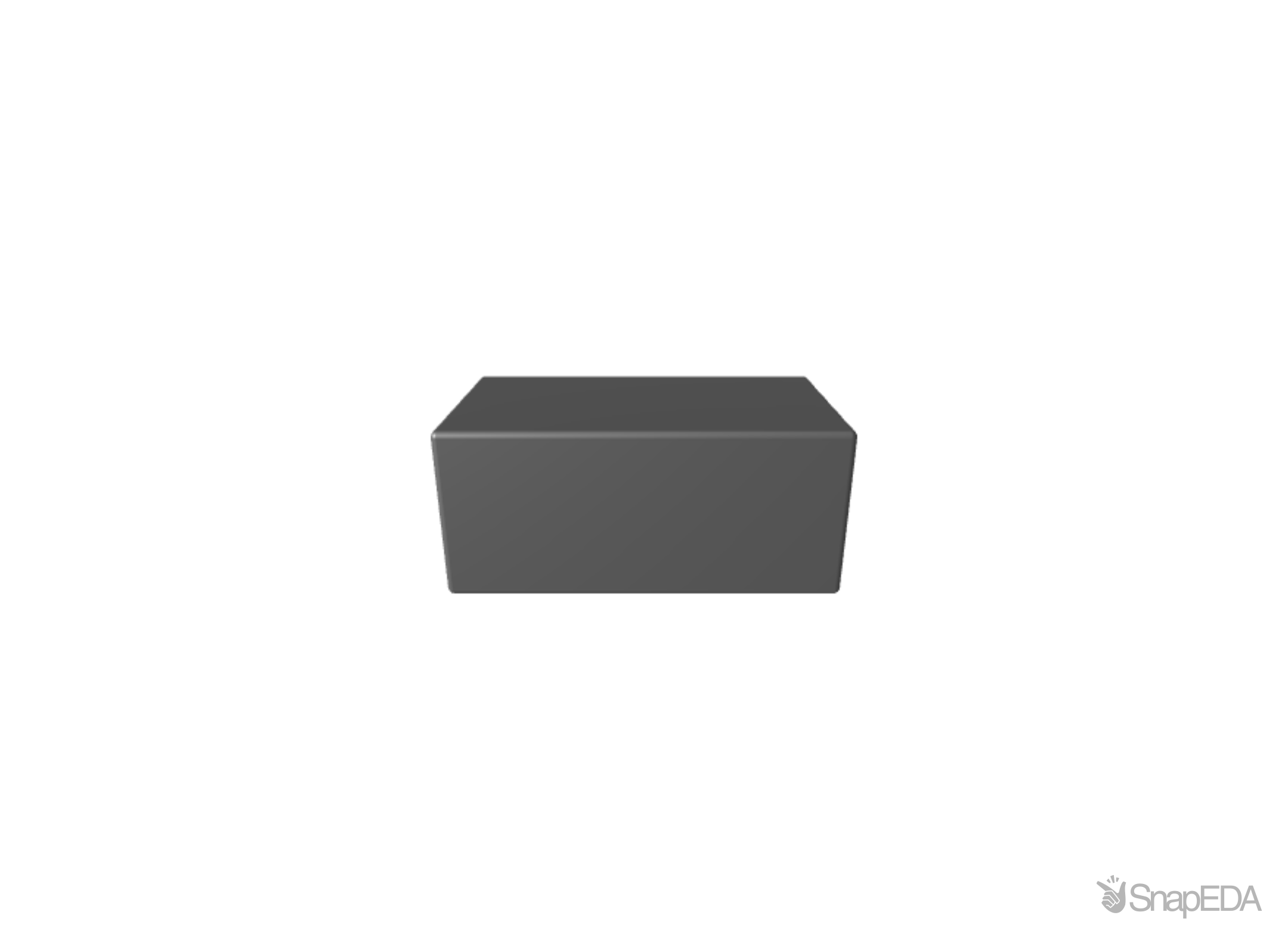

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1419108-5
| Part Name | 3-1419108-5 |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 5000 |
| Product Weight | 14 |
| Coil Special Features | UL Coil Insulation Class F |
| Contact Limiting Making Current (A) | 30 |
| Height Class (Mechanical) | 15 – 16 |
| Product Width | .5 |
| Contact Material | AgNi90/10 |
| Coil Power Rating DC | 400 |
| Contact Limiting Continuous Current (A) | 16 |
| Contact Switching Voltage (Max) (V) | 400 |
| Coil Resistance | 360 |
| Contact Current Class (A) | 10 – 20 |
| Contact Arrangement | 1 Form A (NO) |
| Contact Number of Poles | 1 |
| Insulation Clearance Between Contact & Coil | 10 |
| TE Internal Number | 3-1419108-5 |
| Product Height | .618 |
| Insulation Initial Dielectric Between Coil & Contact Class | 4000 – 5000 |
| Width Class (Mechanical) | 12 – 16 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Socket |
| Product Length | 29 |
| Insulation Clearance Class | 8 |
| Coil Voltage Rating (V) | 12 |
| Packaging Method | Tube |
| Environmental Ambient Temperature (Max) | 185 |
| Length Class (Mechanical) | 25 – 30 |
| Insulation Special Features | Tracking Index of Relay Base PTI250 |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| Contact Voltage Rating (V) | 250 |
| Contact Limiting Breaking Current (A) | 16 |
| Coil Power Rating Class | 300 – 400 |
| Contact Current Rating (Max) (A) | 16 |
| Insulation Creepage Between Contact & Coil | .394 |
| Environmental Category of Protection | RTIII |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Insulation Creepage Class | 8 |
