3-1437653-5
SnapVerified
Buchanan Conn Term Strip Barrier 10Pole 9.53mmPitch SnglRow 22-12 #6 25A 300V | TE Connectivity 3-1437653-5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1437653-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

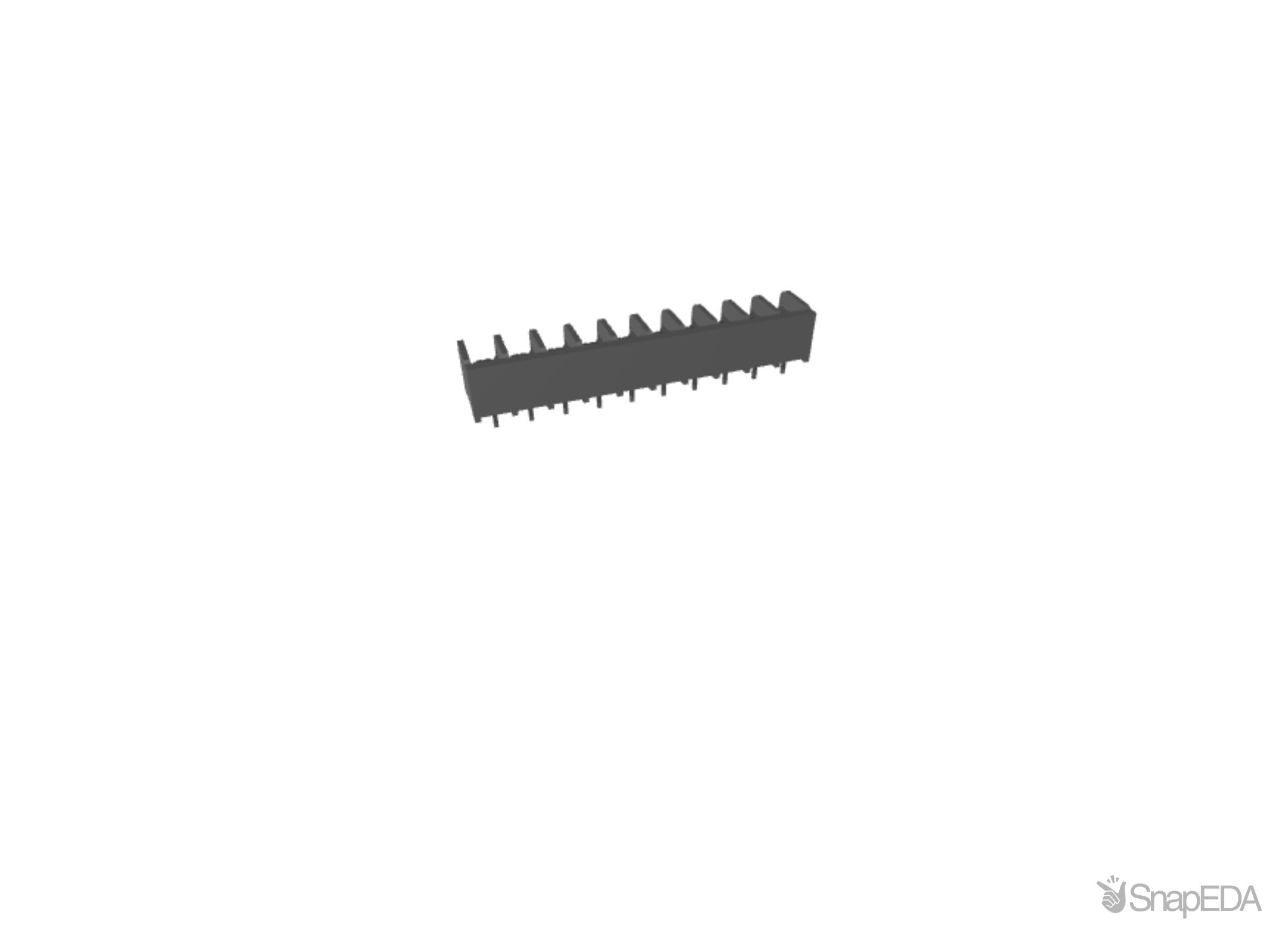

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1437653-5
| Part Name | 3-1437653-5 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Category | Connectors |
| Centerline (Pitch) | .375 |
| Top Hardware | Wire Clamp Combo Head |
| Housing Material | Thermoplastic |
| Screw Plating Material | Zinc Chromate |
| Barrier Strip Style | Tri-Barrier |
| Screw Size | 6-32 |
| Screw Head Type | Combo Phil-Slot |
| Number of Positions | 10 |
| Current Rating (Max) (A) | 25 |
| Block Style | Open Bottom with Standoffs |
| TE Internal Number | 3-1437653-5 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Terminal Material | Copper Alloy |
| Packaging Method | Package |
| Packaging Quantity | 115 |
| Length | 3.811 |
| RoHS | True |
| Terminal Plating Finish | Bright |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Current Rating (A) | 5 |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Mounting Insert | Without |
| Voltage (V) | 600 |
| Terminal Plating Material | Tin |
| Wire Size | 22 – 12 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 3-1437653-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
341
|
|
Visit Site | |
| Farnell UK |
3,573
|
|
Visit Site | |
| Heilind Americas |
|
4,830 x $3.81
|
Visit Site | |
| Interstate Connecting Components |
|
4,830 x $3.81
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Newark |
8,800
|
1 x $4.96
|
Visit Site | |
| Onlinecomponents |
1,760
|
5,000 x $3.59
|
Visit Site | |
| Powell Electronics |
26
|
|
Visit Site | |
| Sager |
|
4,830 x $4.63
|
Visit Site | |
| TME |
3,970
|
|
Visit Site | |
| TTI Americas |
3,445
|
|
Visit Site | |
| Verical |
8,800
|
19 x $3.37
|
Visit Site |
No issues have been reported for the 3-1437653-5
