3-1534796-5
AMP DUOPLUG MK2 CONNECTOR 5P
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1534796-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

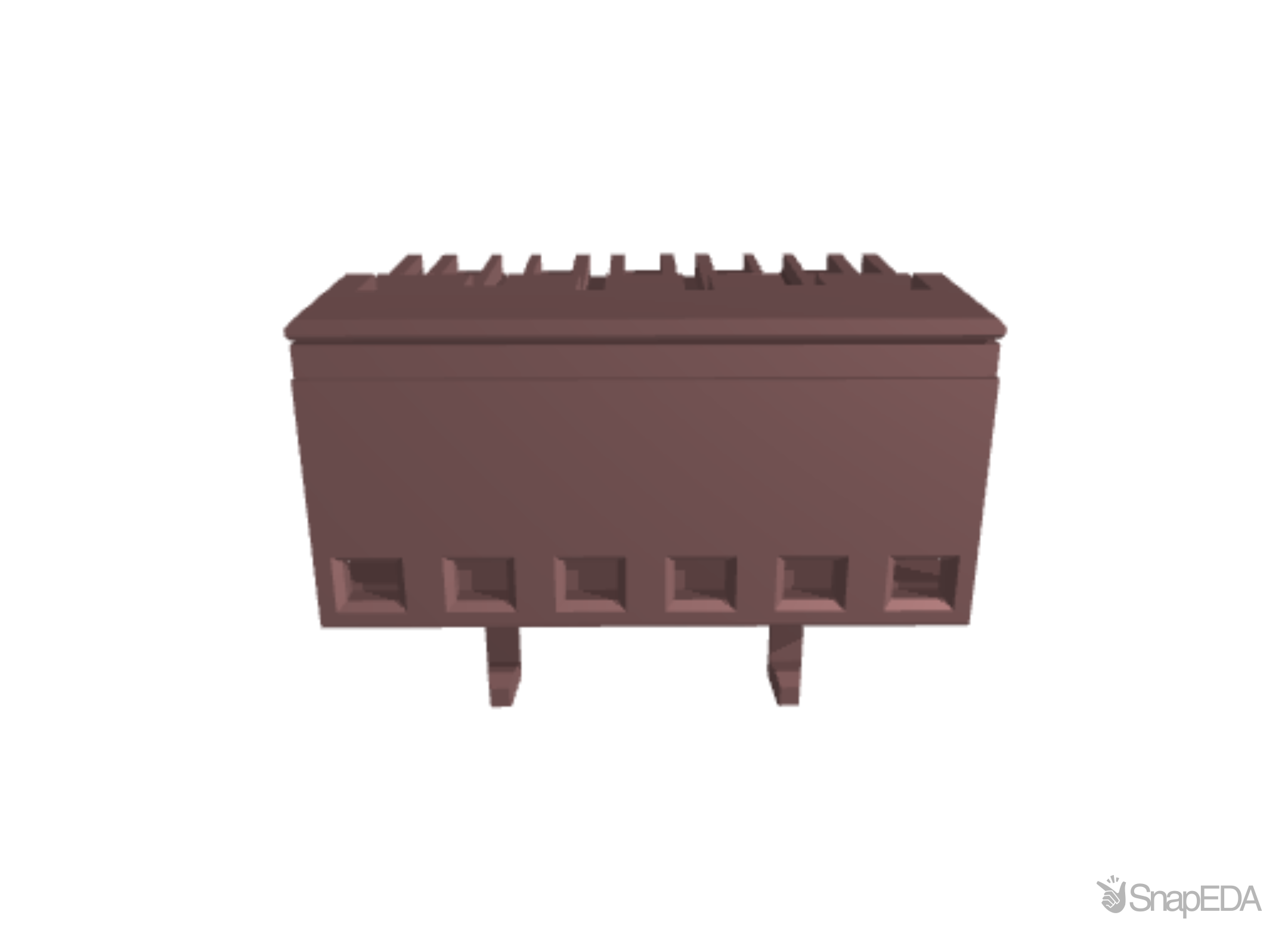

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1534796-5
| Part Name | 3-1534796-5 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Zeilenanzahl | 1 |
| Centerline (Pitch) | 2.5 |
| Circuit Application | Signal |
| Housing Entry Configuration | Both Ends Open |
| Housing Material | PA 6 GF |
| Wire/Cable Type | Discrete Wire |
| PCB Contact Termination Area Plating Material | Tin |
| Operating Voltage (V) | 250 |
| Connector Style | Receptacle |
| Height | .287 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Retention Type | Locking Lance |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .059 |
| TE Internal Number | 3-1534796-5 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Housing Color | Natural |
| Contact Base Material | Copper Tin |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Operating Temperature Range | -40 – 110 |
| Packaging Method | Tray |
| Packaging Quantity | 2618 |
| Number of Positions | 5 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mating Retention | Without |
| Card Entry Style | Side |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-2 |
| Contact Mating Area Plating Material Thickness | 3 – 6 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 2 |
| Contact Retention | With |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Socket |
| Accepts Wire Insulation Diameter Range | 1.2 – 1.6 |
| Wire Size | .22 – .35 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 3-1534796-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
18,647
|
|
Visit Site | |
|
★ Featured
|
1,440
|
1,420 x $0.24
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Mouser |
|
20,944 x $0.35
|
Visit Site | |
| Newark |
29,331
|
|
Visit Site | |
| Onlinecomponents |
5,867
|
|
Visit Site | |
| Powell Electronics |
19,358
|
|
Visit Site | |
| Sager |
|
10,472 x $0.36
|
Visit Site | |
| TE Store |
18,648
|
|
Visit Site | |
| TME |
29,331
|
|
Visit Site | |
| Verical |
29,331
|
|
Visit Site |
No issues have been reported for the 3-1534796-5
If you experienced any issues with this part, please report it.
