3-1703639-1

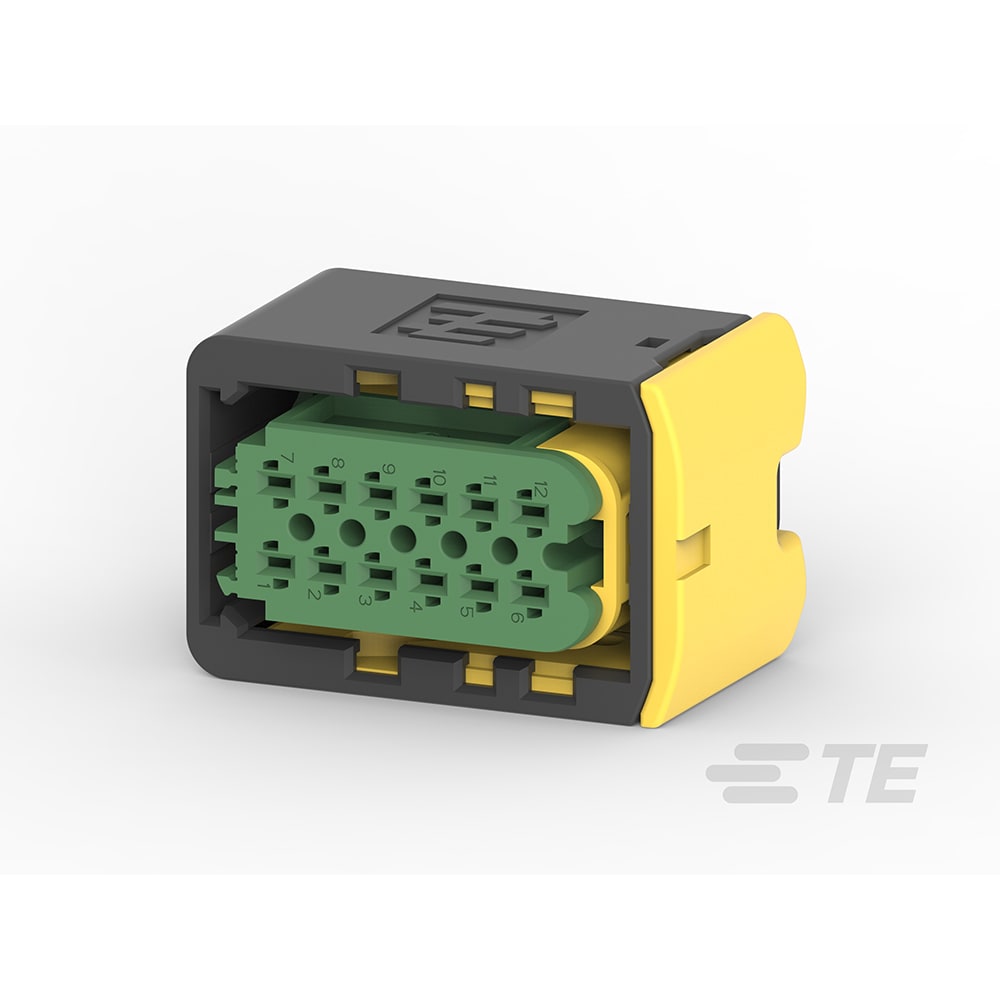

12POS,AMP MCP1.5K,REC HSG,ASSY,CODC | TE Connectivity 3-1703639-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1703639-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

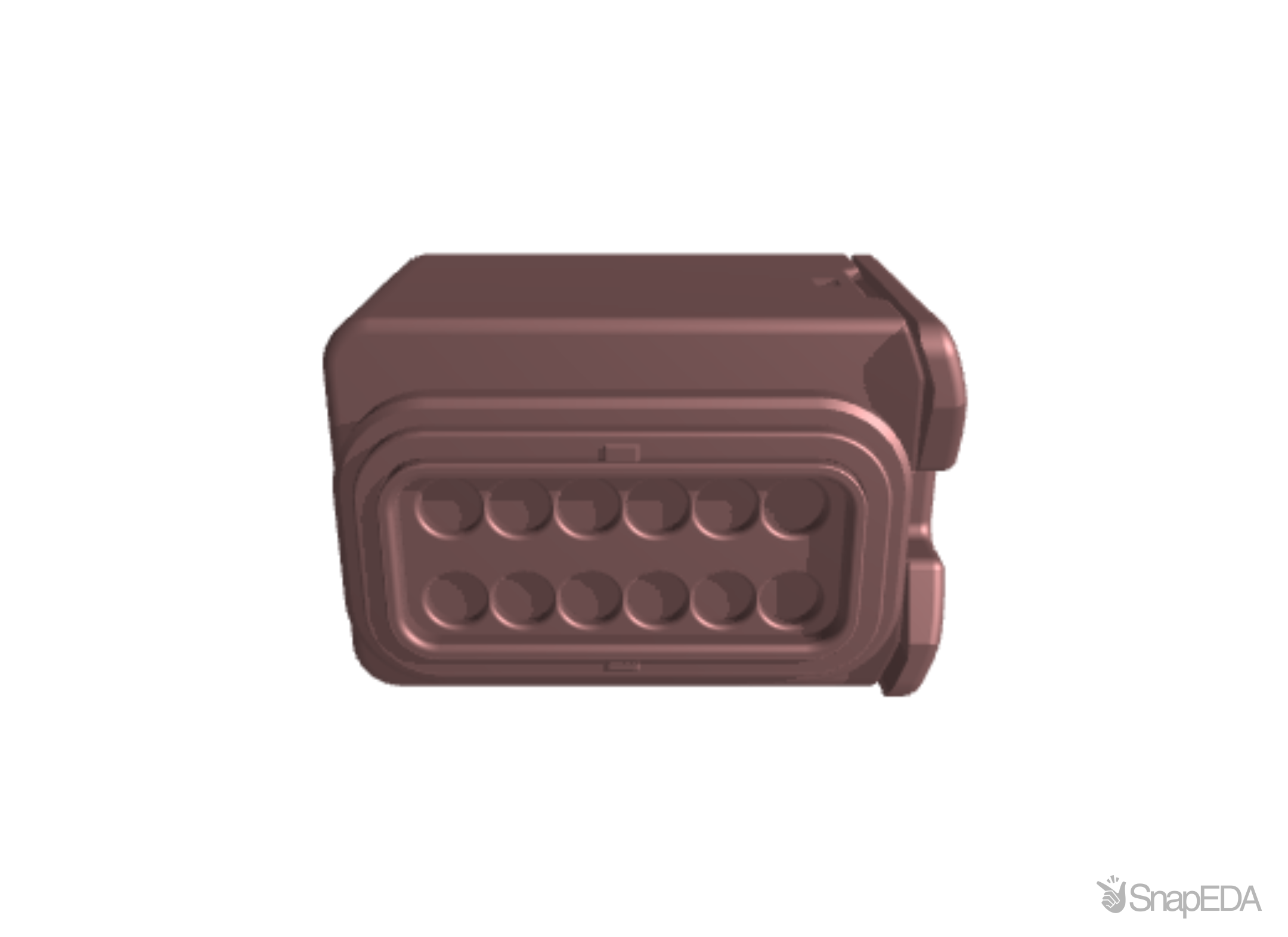

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1703639-1
| Part Name | 3-1703639-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .157 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| UL Flammability Rating | UL 94V-0 |
| Width | 1.012 |
| Operating Voltage (V) | 60 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 12 |
| Operating Temperature Range | -40 – 284 |
| TE Internal Number | 3-1703639-1 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Sealable | Yes |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 24 |
| Polarized | Yes |
| Hybrid Connector | No |
| Degree of Protection | IP67 |
| Packaging Method | Box |
| Packaging Quantity | 300 |
| Body Material | PBT GF |
| Cable Exit Angle | Other |
| Serviceable | Yes |
| RoHS | True |
| Mating Tab Width | 1.6 |
| Strain Relief | No |
| Color | Black |
| Length | 54.1 |
| Height | 31.25 |
| Primary Locking Feature | On the Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 3-1703639-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,226
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
1,219
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
1,224
|
|
Visit Site | |
| Onlinecomponents |
3
|
|
Visit Site | |
| Powell Electronics |
10
|
|
Visit Site | |
| Sager |
|
300 x $2.16
|
Visit Site | |
| TE Connectivity |
260
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| element14 Singapore |
1,219
|
|
Visit Site |
No issues have been reported for the 3-1703639-1
If you experienced any issues with this part, please report it.
