3-1734742-7
SnapVerified
37 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1734742-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

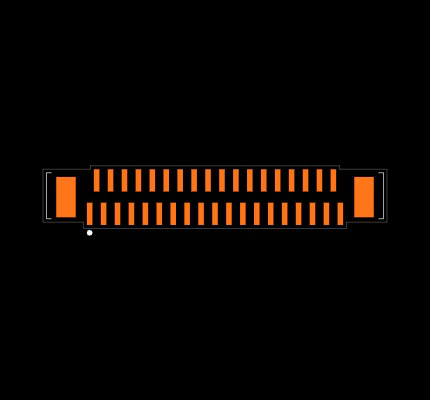

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1734742-7
| Part Name | 3-1734742-7 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .0197 |
| Circuit Application | Signal |
| Housing Material | PA 9T GF |
| Wire/Cable Type | FPC/FFC |
| Operating Voltage (V) | 50 |
| Circuit Identification Feature | Without |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Flexible Printed Circuit (FPC) |
| Contact Design | Single Beam |
| PCB Mount Retention | With |
| TE Internal Number | 3-1734742-7 |
| PCB Mount Orientation | Vertical |
| Connector System | Flex-to-Board |
| Connector Height | .1633 |
| Number of Rows | 1 |
| Housing Color | Black |
| Connector Width | .1496 |
| Flex Cable Thickness | .012 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal |
| Connector Length | 24.2 |
| Insertion Force Type | Zero Insertion Force (ZIF) |
| Operating Temperature Range | -4 – 185 |
| Shielded | No |
| Packaging Method | Tape |
| Connector Type | Connector Assembly |
| Packaging Quantity | 1000 |
| Contact Layout | Staggered Type A |
| Contact Type | Socket |
| Contact Termination Area Plating Material | Gold |
| Number of Positions | 37 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | Without |
| Contact Mating Area Plating Material Thickness | .007 |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Location | Bottom |
| Contact Termination Area Plating Thickness | 120 |
| FPC Actuator Type | Stuffer (Plunger Style) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
