3-1761603-1
SnapVerified
HEADER, PIN, IDC, AMP-LATCH, 34 POS, LOW PROFILE, PCB, VERTICAL, BLUE | TE Connectivity 3-1761603-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1761603-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

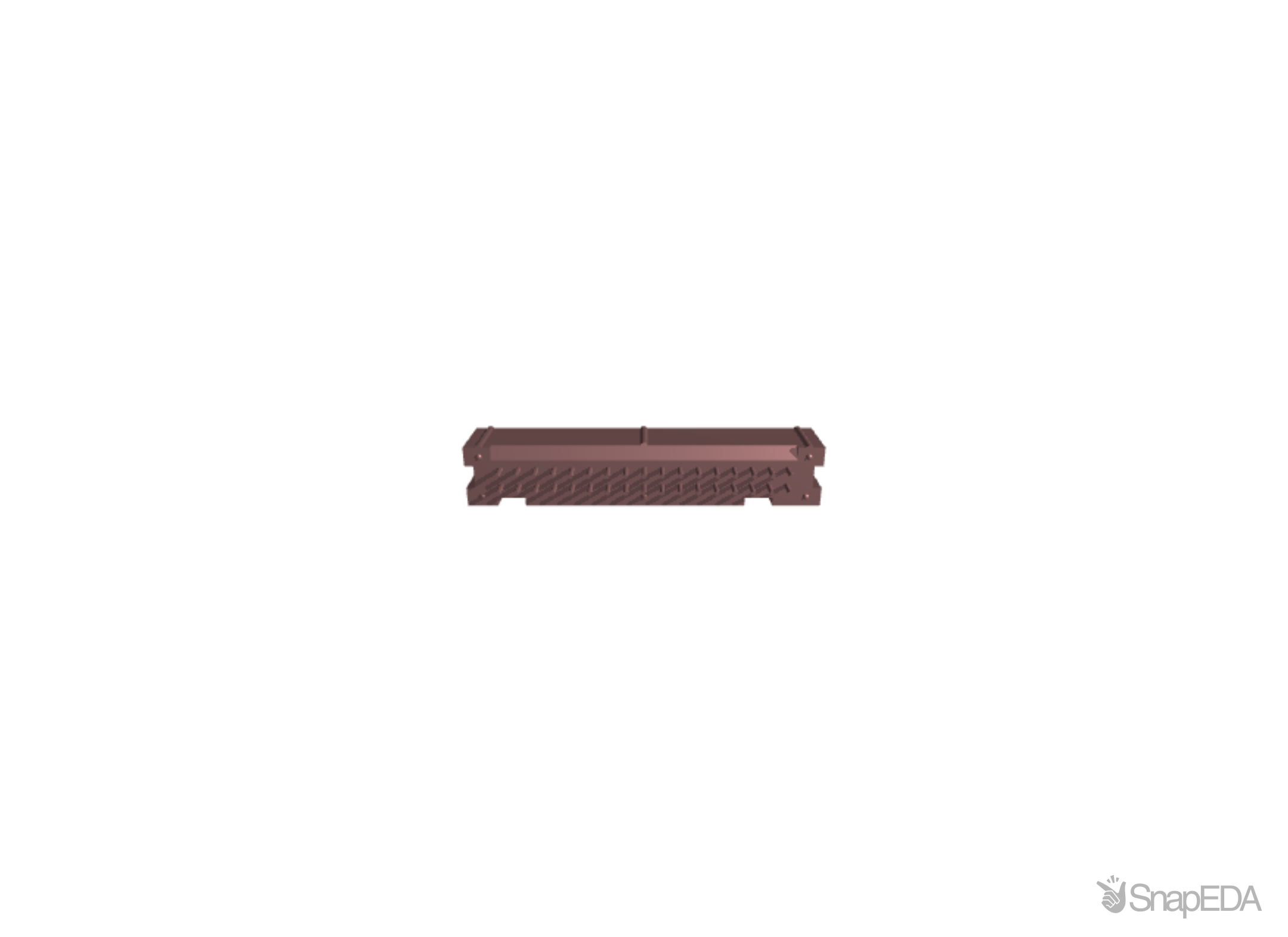

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1761603-1
| Part Name | 3-1761603-1 |
| Manufacturer | TE Connectivity |
| Wire-to-Board | |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | High |
| Circuit Application | Signal |
| Housing Style | 4-Sided |
| Housing Material | PBT |
| Insulation Resistance | 1000 5000 |
| PCB Contact Termination Area Plating Material | Tin |
| Operating Voltage (V) | 250 |
| Connector Style | Plug |
| Ejection Latches | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Low |
| PCB Mount Retention | Without |
| Connector System | Wire-to-Board |
| Panel Mount Feature | Without |
| Board Standoff | Without |
| TE Internal Number | 3-1761603-1 |
| PCB Mount Orientation | Vertical |
| PCB Mount Alignment | Without |
| Termination Method to Printed Circuit Board | Through Hole |
| Number of Rows | 2 |
| Housing Color | Blue |
| Header Type | Pin Header |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Housing Entry Style | Top |
| Contact Shape | Square |
| Mating Retention | With |
| Operating Temperature Range | -65 to 105 |
| Packaging Method | Package |
| Connector Type | Header |
| Packaging Quantity | 50 |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 34 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | 3.81 |
| RoHS | True |
| Polarization | With |
| Contact Base Material | Phosphor Bronze |
| Termination Post Length | 2.6 |
| Post Size | .025 |
| Length | 2 |
| Height | .35 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | 30 |
| Connector Mounting Type | Board Mount |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 100 |
| ??? | AMP-Latch Receptacle |
| Mating Connector Lock | Without |
| Daisy Chain | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Series | AMP-LATCH |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 34 |
| Contact Material | Phosphor Bronze |
Inventory for the 3-1761603-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
378
|
|
Visit Site | |
|
★ Featured
|
1,311
|
1 x $4.95
|
Visit Site | |
|
★ Featured
|
1,416
|
|
Visit Site | |
| Arrow Electronics |
8,707
|
1 x $4.37
|
Visit Site | |
| Avnet America |
1,134
|
1 x $3.26
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
22,551
|
|
Visit Site | |
| Conrad |
22,618
|
|
Visit Site | |
| Farnell UK |
20,358
|
|
Visit Site | |
| Heilind Americas |
|
2,000 x $5.60
|
Visit Site | |
| Newark |
83
|
|
Visit Site | |
| Onlinecomponents |
12,869
|
|
Visit Site | |
| Powell Electronics |
14,948
|
|
Visit Site | |
| RS UK |
323
|
1 x $4.99
|
Visit Site | |
| Sager |
|
2,000 x $7
|
Visit Site | |
| TTI Europe |
1,950
|
50 x $5.74
|
Visit Site | |
| Verical |
1,556
|
2 x $3.70
|
Visit Site | |
| element14 Singapore |
171
|
|
Visit Site |
No issues have been reported for the 3-1761603-1
