3-1879537-0
CRGV2010 1% 1M1 3000V
Availability: Out of Stock
Package Type: 2010
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1879537-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

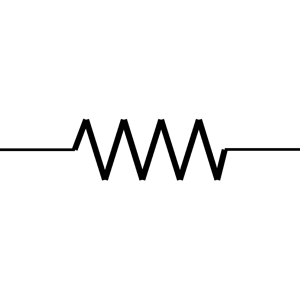

Symbol
No web preview
This Symbol is Available for

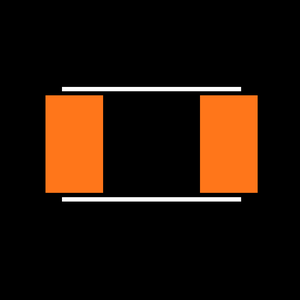

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1879537-0
| Part Name | 3-1879537-0 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 5 x 2.5 x .55 |
| Product Type | Fixed Resistor |
| Voltage Rating (V) | 200 |
| Number of Terminations | 2 |
| Resistor Type | High Value/High Voltage Resistor |
| Package | 2010 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 3-1879537-0 |
| Temperature Coefficient | ±200 |
| Resistance | 1.1M |
| Number of Resistors | 1 |
| Element Type | Thick Film |
| Termination Type | Solder |
| Power Rating | .5 |
| Size Code | 2010 |
| Tolerance | 1% |
| Resistance Range | 1MΩ – 1GΩ |
| RoHS | True |
