3-1971906-6
SnapVerified
Conn Wire to Board HDR 12 POS 3.3mm Solder ST Thru-Hole Tray
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-1971906-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

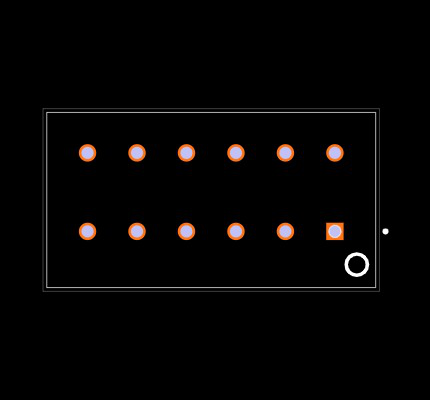

Footprint
No web preview
This Footprint is Available for

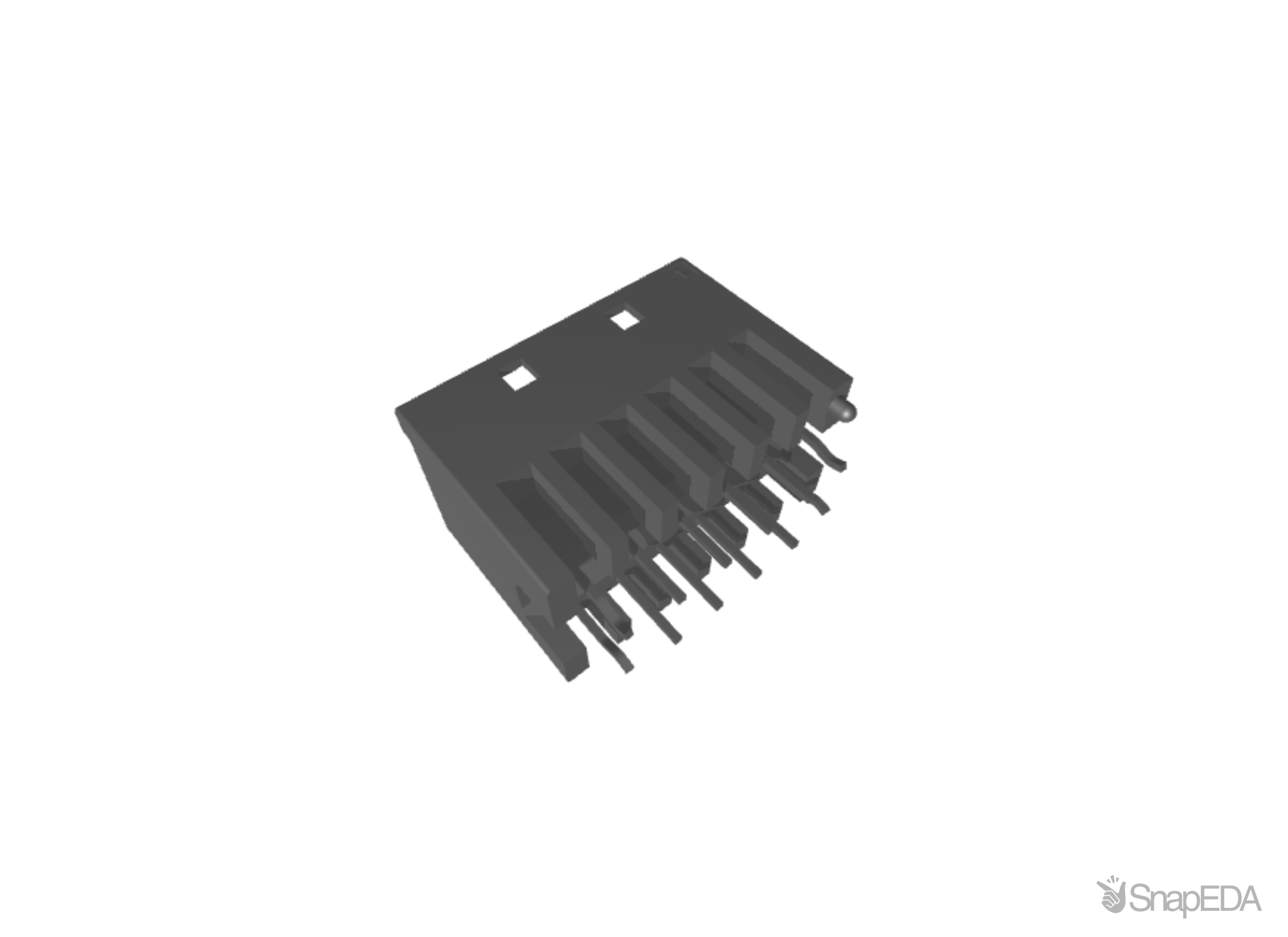

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-1971906-6
| Part Name | 3-1971906-6 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .129 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 GF |
| Number of Power Positions | 12 |
| Operating Voltage (V) | 250 |
| Number of Positions | 12 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 3-1971906-6 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Housing Type | Receptacle |
| Housing Color | Red |
| Number of Signal Positions | 12 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -30 – 105 |
| Number of Rows | 2 |
| Packaging Method | Box & Tray |
| Packaging Quantity | 175 |
| Contact Termination Area Plating Material | Tin |
| Contact Mating Area Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Product Type | Header Assembly |
| Contact Retention | With |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | .205 |
| Contact Current Rating (Max) (A) | 4 |
| Contact Mating Area Plating Thickness | 2 |
| Contact Type | Tab |
| Glow Wire Rating | GWT 750°C (Without Flame) |
| Wire Size | 414.44 – 1045.97 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 3-1971906-6 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
145
|
|
Visit Site | |
| Onlinecomponents |
698
|
|
Visit Site |
No issues have been reported for the 3-1971906-6
If you experienced any issues with the symbol or footprint, please report it.
