3-2328724-9
SnapVerified
39 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-2328724-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

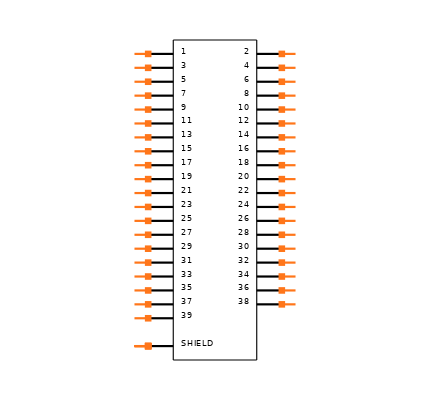

Symbol
No web preview
This Symbol is Available for

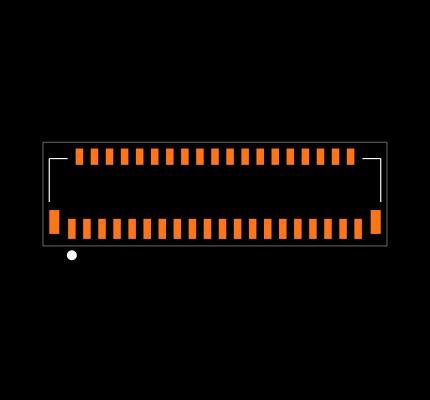

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-2328724-9
| Part Name | 3-2328724-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .3 |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Wire/Cable Type | FPC/FFC |
| Operating Voltage (V) | 30 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Standard Flat |
| TE Internal Number | 3-2328724-9 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Connector Height | 1 |
| Number of Rows | 2 |
| Housing Color | Natural |
| Flex Cable Thickness | .008 |
| Sealable | No |
| Operating Temperature Range | -40 – 185 |
| Shielded | No |
| Packaging Method | Tape & Reel |
| Connector Type | Connector Assembly |
| Contact Configuration | Signal |
| Contact Layout | Inline |
| Contact Type | Socket |
| Contact Termination Area Plating Material | Gold |
| Number of Positions | 39 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Copper Alloy |
| Stamped | No |
| Color | Black/Natural |
| Contact Current Rating (Max) (A) | .5 |
| Type of Connector | Easy Mating |
| Contact Mating Location | Bottom |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
