3-5435668-4
Alcoswitch, DIP sw,PCB,sealed,SPST,4 ps,flush rocker | TE Connectivity 3-5435668-4
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-5435668-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

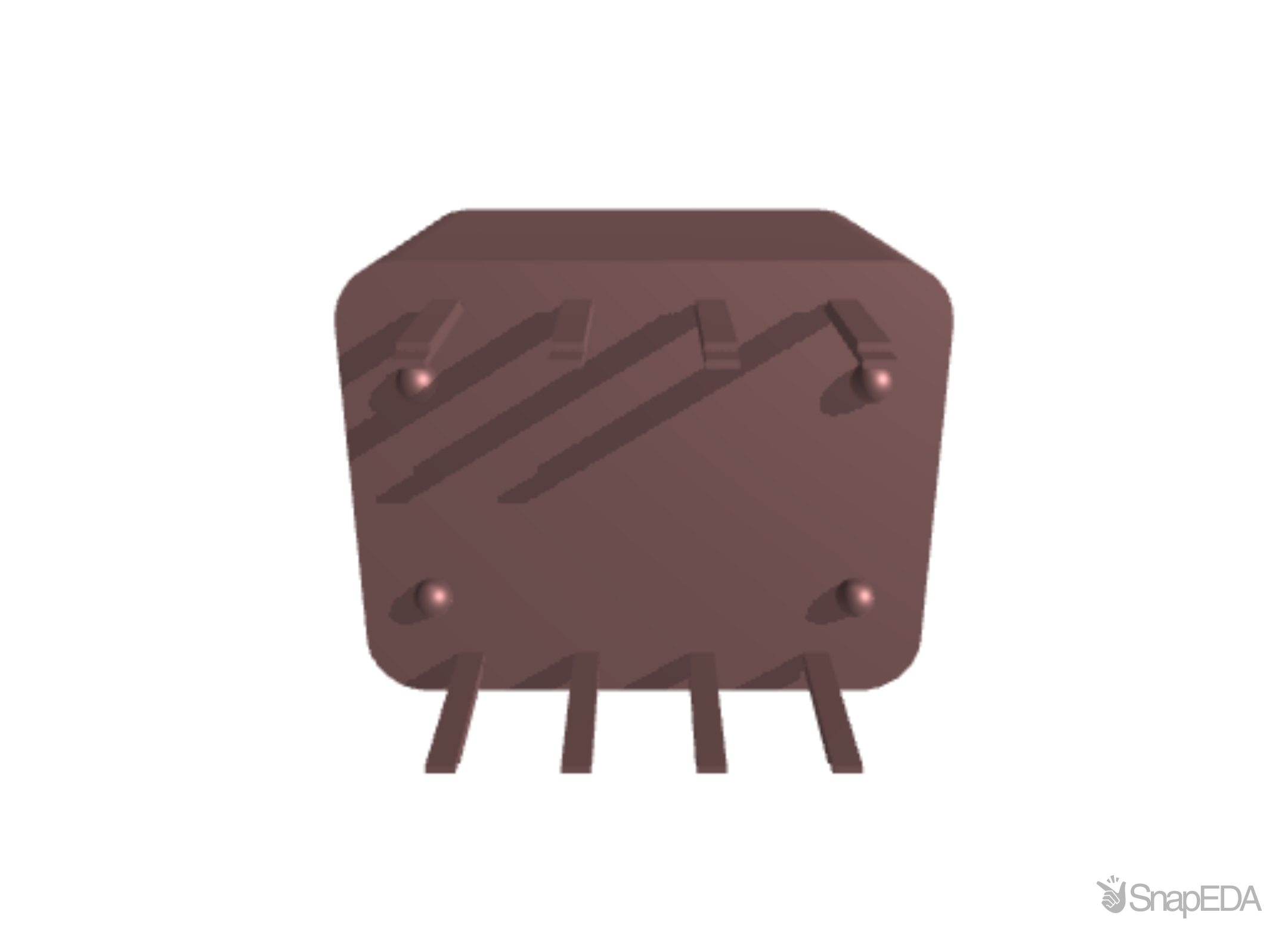

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-5435668-4
| Part Name | 3-5435668-4 |
| Manufacturer | TE Connectivity |
| Category | Switches |
| Low Profile | Yes |
| Voltage Rating (V) | 40 |
| Packaging Method | Tube |
| Packaging Quantity | 25 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester GF |
| Length | 12.19 |
| Sealed | Yes |
| Contact Mating Area Plating Material | Gold |
| Seal Type | Tape |
| Centerline | 2.54 |
| Number of Positions | 4 |
| Actuator Style | Rocker (Top Actuated) |
| Mounting Angle | Vertical |
| Product Type | Switch |
| Mounting Type | Through Hole |
| Auto-Insertable | No |
| Termination Post Length | 3.56 |
| Contact Current Rating (A) | 1 |
| Solder Tail Contact Plating | Tin |
| Number of Switches | 4 |
| TE Internal Number | 3-5435668-4 |
| Height | 7.36 |
| Contact Mating Area Plating Thickness | 30 |
| Housing Color | Blue |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Contact Base Material | Copper Alloy |
| Switch Type | DIP |
