3-641216-3
SnapVerified
MTA-100 HEADER GOLD, 03P MTA100 HDR ASSY FL/RA LF | TE Connectivity 3-641216-3
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-641216-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

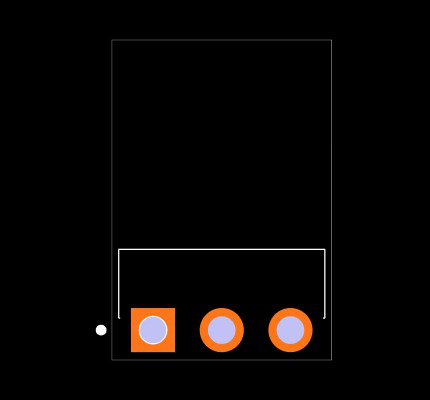

Footprint
No web preview
This Footprint is Available for

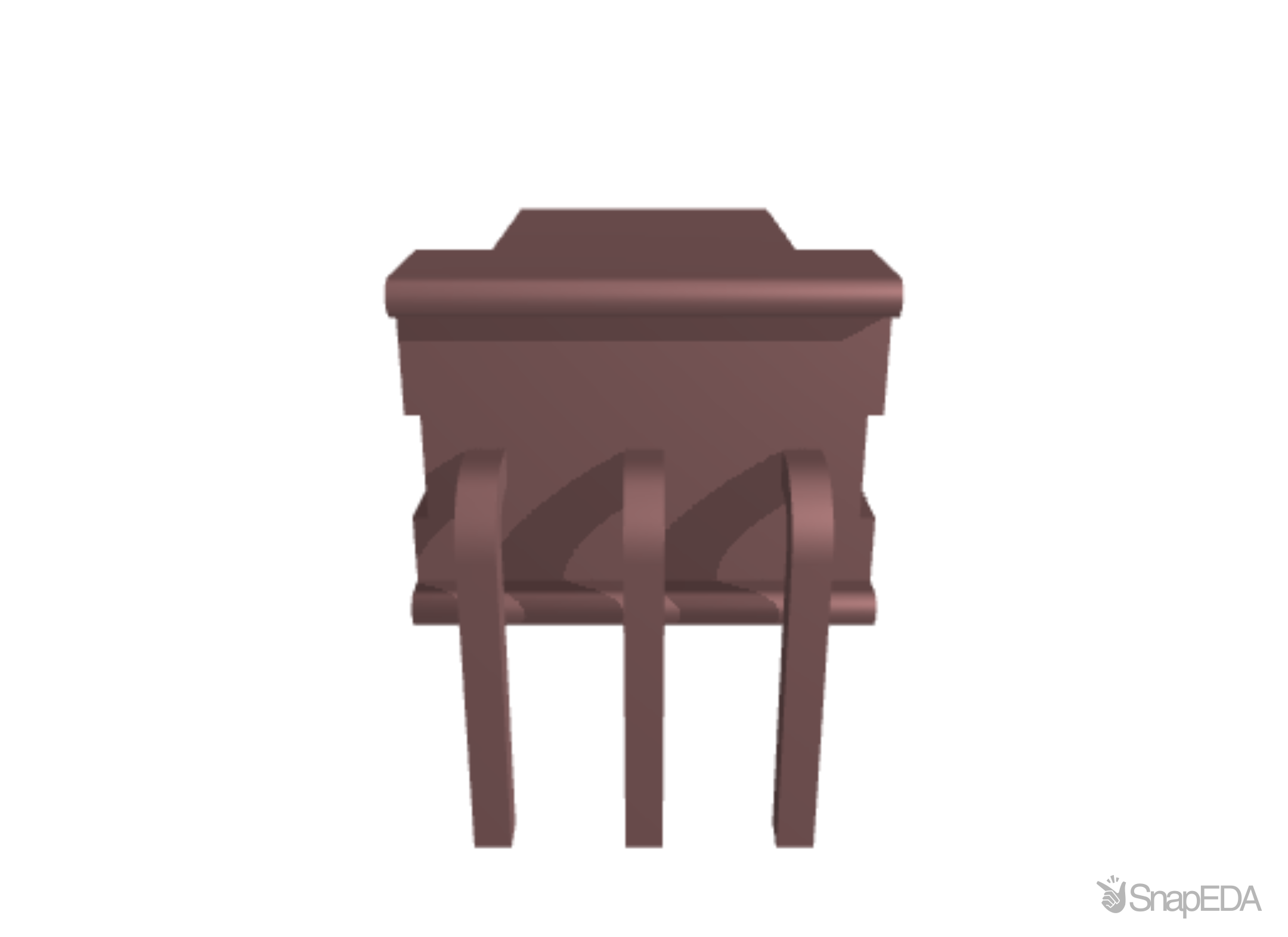

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-641216-3
| Part Name | 3-641216-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Contact Underplating Material Thickness | 1.27 |
| Mating Retention Type | Friction Lock |
| Housing Material | Polyester - GF |
| Operating Voltage (V) | 250 |
| CSA File Number | LR7189 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | .14 |
| PCB Connector Assembly Type | PCB Mount Header |
| UL 定格 | Recognized |
| TE Internal Number | 3-641216-3 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Connector Height | .31 |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 150 – 350 |
| Header Type | Unshrouded |
| Contact Mating Area Plating Material Finish | Bright |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Housing Color | Natural |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 10.16 |
| UL File Number | E28476 |
| Operating Temperature Range | -67 – 221 |
| Contact Layout | Inline |
| Strain Relief | Without |
| Contact Underplating Material | Nickel |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Agency/Standard | UL |
| Sealable | No |
| Number of Positions | 3 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| CSA Rating | Certified |
| Right Angle Bending Side | Front |
| RoHS | True |
| Mating Retention | With |
| 端子の下地めっきの材料 | Nickel |
| Mating Post Length | .295 |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 5 |
| Contact Retention | Without |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Termination Method to Wire & Cable | Solder |
