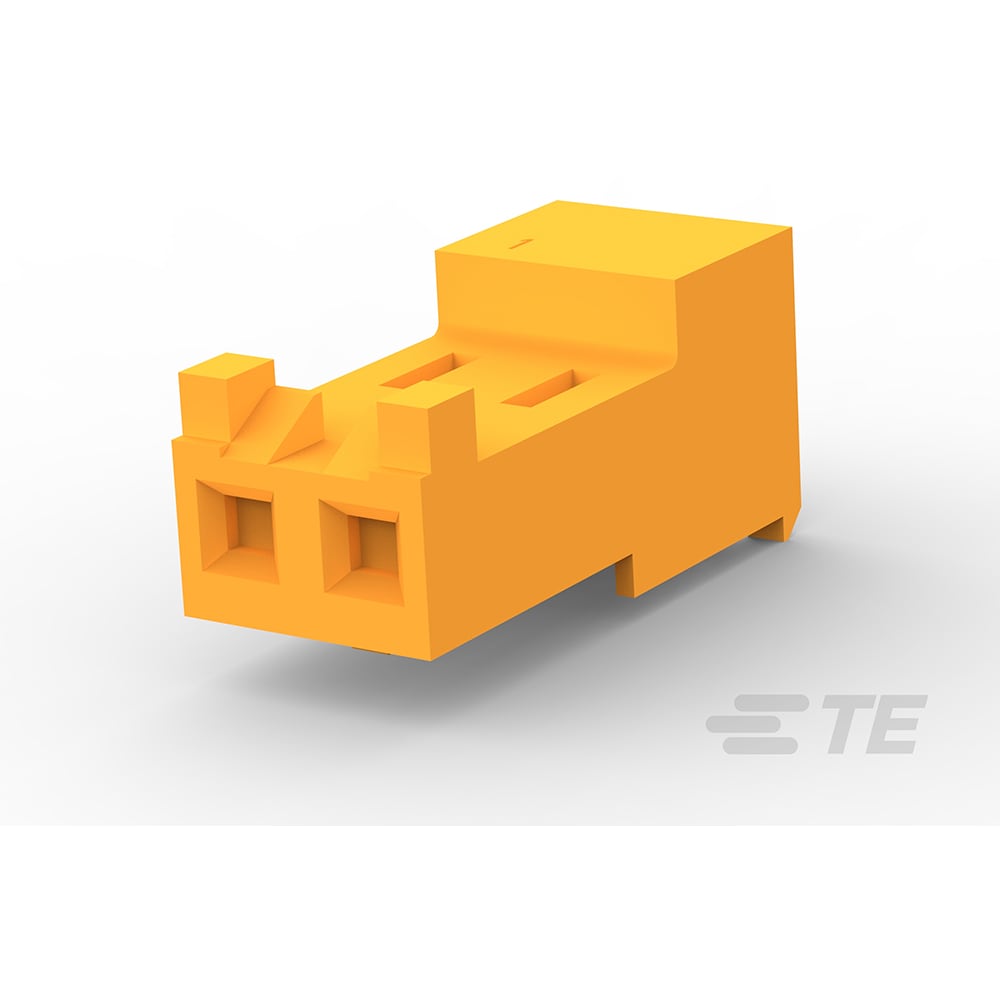

3-644460-2
Connector Assembly 2 Position MTA156 18AWG ORA MTA156 Series | TE Connectivity 3-644460-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-644460-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-644460-2
| Part Name | 3-644460-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarizing Tab |
| Centerline (Pitch) | 3.96 |
| Circuit Application | Power & Signal |
| Underplate Material Thickness | 1.27 – 1.77 |
| UL Flammability Rating | UL 94V-2 |
| Housing Material | Nylon |
| Wire & Cable IDC Installation Type | Closed End |
| Number of Power Positions | 2 |
| Operating Voltage (V) | 600 |
| For Use With | MTA .156 Header |
| Wire Type | Stranded |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Retention Type | Locking Lance |
| PCB Mount Retention | Without |
| Contact Layout | Inline |
| Contact Current Rating (Max) (A) | 7 |
| TE Internal Number | 3-644460-2 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Agency/Standard Number | E28476 |
| Housing Color | Orange |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Contact Mating Area Plating Thickness | .076 |
| Length | 7.92 |
| Operating Temperature Range | -67 – 221 |
| Number of Positions | 2 |
| Wire/Cable Type | Discrete Wire |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 500 |
| Agency/Standard | CSA |
| Contact Termination Area Plating Material | Tin |
| 端子の下地めっきの材料 | Nickel |
| Cable Exit Angle | 90° |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash |
| CSA Rating | Certified |
| RoHS | True |
| Contact Termination Area Plating Thickness | .38 |
| Mating Retention | With |
| Strain Relief | With |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| PCB Mount Alignment | Without |
| Mating Retention Type | Locking Ramp |
| Height | 9.02 |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Retention | With |
| Product Type | Connector Assembly |
| Connector Profile | Standard |
| Contact Type | Socket |
| Accepts Wire Insulation Diameter Range | 2.41 |
| Wire Size | .8 – .9 |
| Sealable | No |
