3-647477-3
03P MTA100 CONN ASSY F/T LF
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3-647477-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

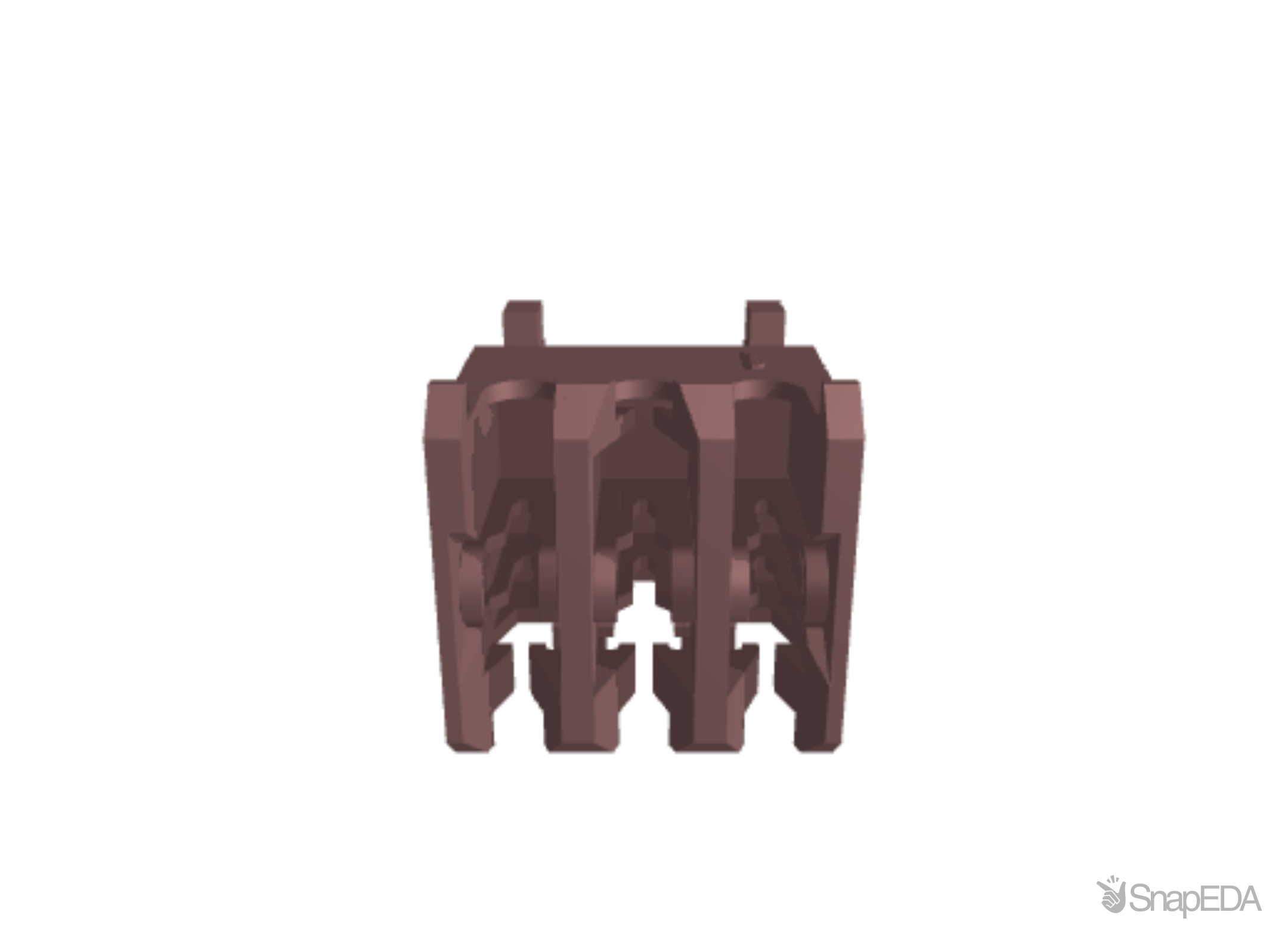

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3-647477-3
| Part Name | 3-647477-3 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94V-2 |
| ???? | Red |
| Width | 7.75 |
| Wire/Cable Type | Stranded |
| Operating Voltage (V) | 250 |
| Product Style | Assembly |
| Connector Style | Receptacle |
| UL Rating | Recognized |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Retention Type | Locking Lance |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Contact Layout | In-line |
| CSA File Number | LR 7189 |
| Contact Plating Material | Gold |
| TE Internal Number | 3-647477-3 |
| Panel Gasket | No |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Contact Underplating Material | Nickel |
| Sealable | No |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Retention | With |
| UL File Number | E28476 |
| Operating Temperature Range | -55 to 105 |
| Shielded | No |
| Packaging Method | Tape |
| Housing Type | Receptacle Housing |
| Packaging Quantity | 500 |
| Connector Type | Connector Assembly |
| Agency/Standard | UL |
| Length | 7.62 |
| Number of Positions | 3 |
| Mating Alignment | With |
| CSA Rating | Certified |
| Insertion Force | Standard |
| RoHS | True |
| Housing Material | Nylon 6/6 |
| Panel Mount | No |
| Product Type | Connector |
| Mating Retention Type | Locking Ramp |
| Height | .52 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 5 |
| Shape | Rectangular |
| Contact Retention | With |
| Contact Type | Female |
| Number of Cavities | 3 |
| Wire Size | .3 .4 |
| Connection Type | Connector Assembly |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
