3006P-7-201LF
Trimmer, potentiometer 200R 10% 3006P | Bourns 3006P-7-201LF
Availability: In Stock
Package Type: NSOIC-8
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3006P-7-201LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

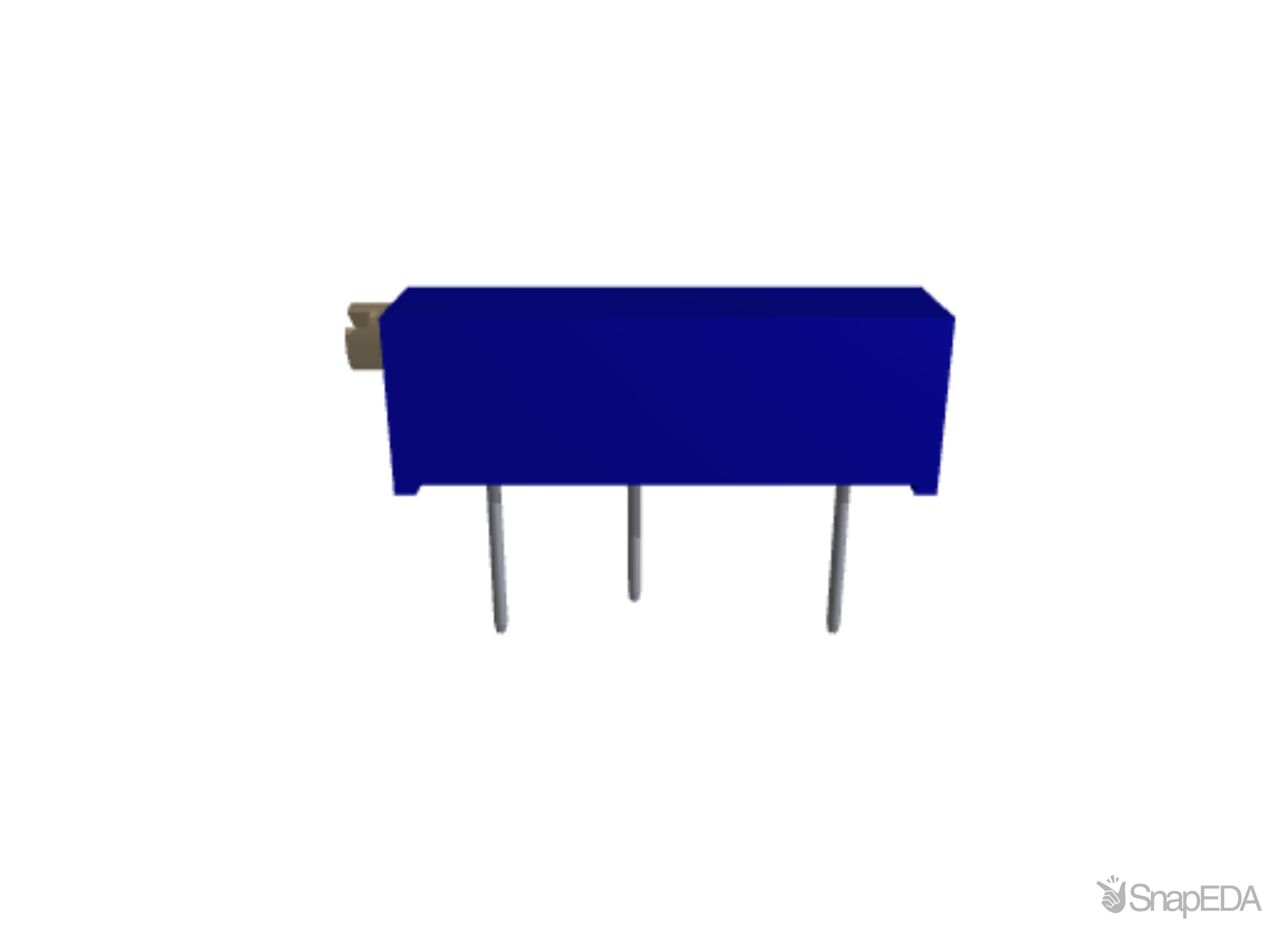

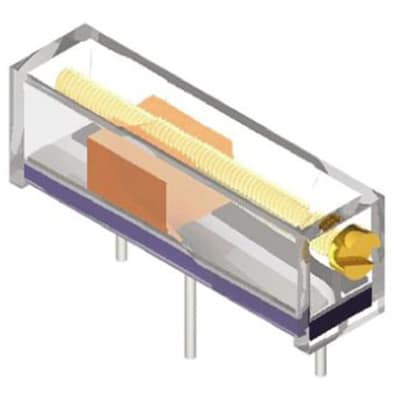

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3006P-7-201LF
| Part Name | 3006P-7-201LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 2.36 mm |
| Orientation | Side Adjust |
| Mounting Type | Through Hole |
| Series | 3006 |
| Termination Style | Pin |
| Number Of Turns | 15 |
| Temperature Coefficient | ±100 (ppm/°C) |
| Length | 19.05 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Distrelec Product Id | 30036825 |
| Power Rating | 0.75 (W) |
| Maximum Resistance | 200 (Ω) |
| Tolerance | ±10 (%) |
| Maximum Operating Temperature | +125 (°C) |
