31386-2001

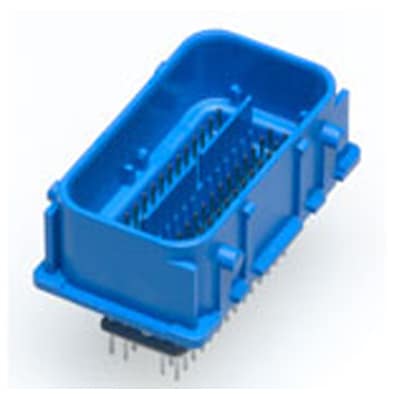

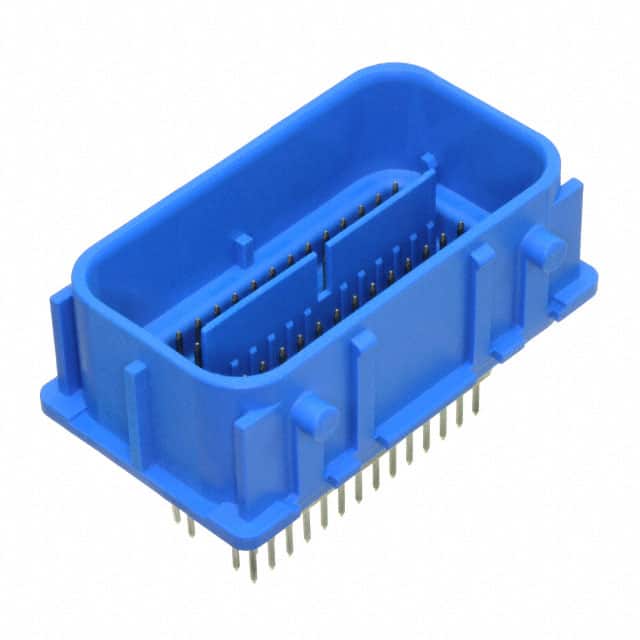

MX123 56CKT BLUE G SHRD ASSY 313862001 | Molex Incorporated 31386-2001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 31386-2001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

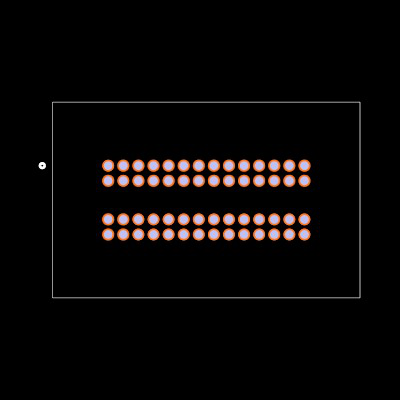

Footprint
No web preview
This Footprint is Available for

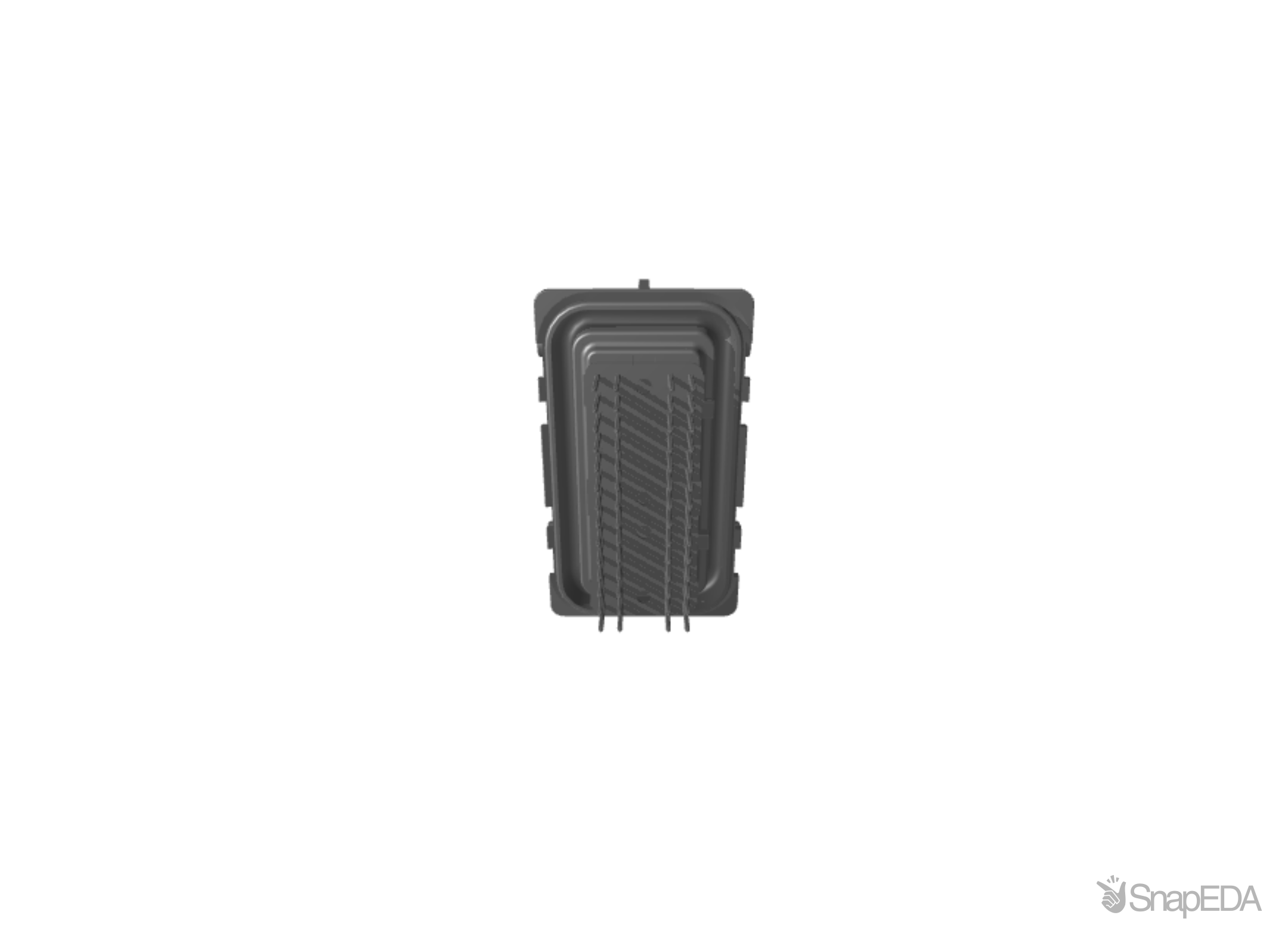

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 31386-2001
| Part Name | 31386-2001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 11 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Ip Rating | IP6K7, IP6K8, IP6K9K |
| Gender | Male |
| Colour | Blue |
| Series Number | 31386 |
| Height | 30 (mm) |
| Width | 51.44 (mm) |
| Depth | 15.25 (mm) |
| Number Of Rows | 4 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 56 |
| Type | PCB Header |
| Maximum Operating Temperature | +125 (°C) |
| Contact Material | Copper Alloy |
