320563
Te Connectivity 320563 / Tyco 320563 / Amp 320563 / Terminal, Ring Tongue, Pidg Wire Size: 16-14 Awg
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 320563 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

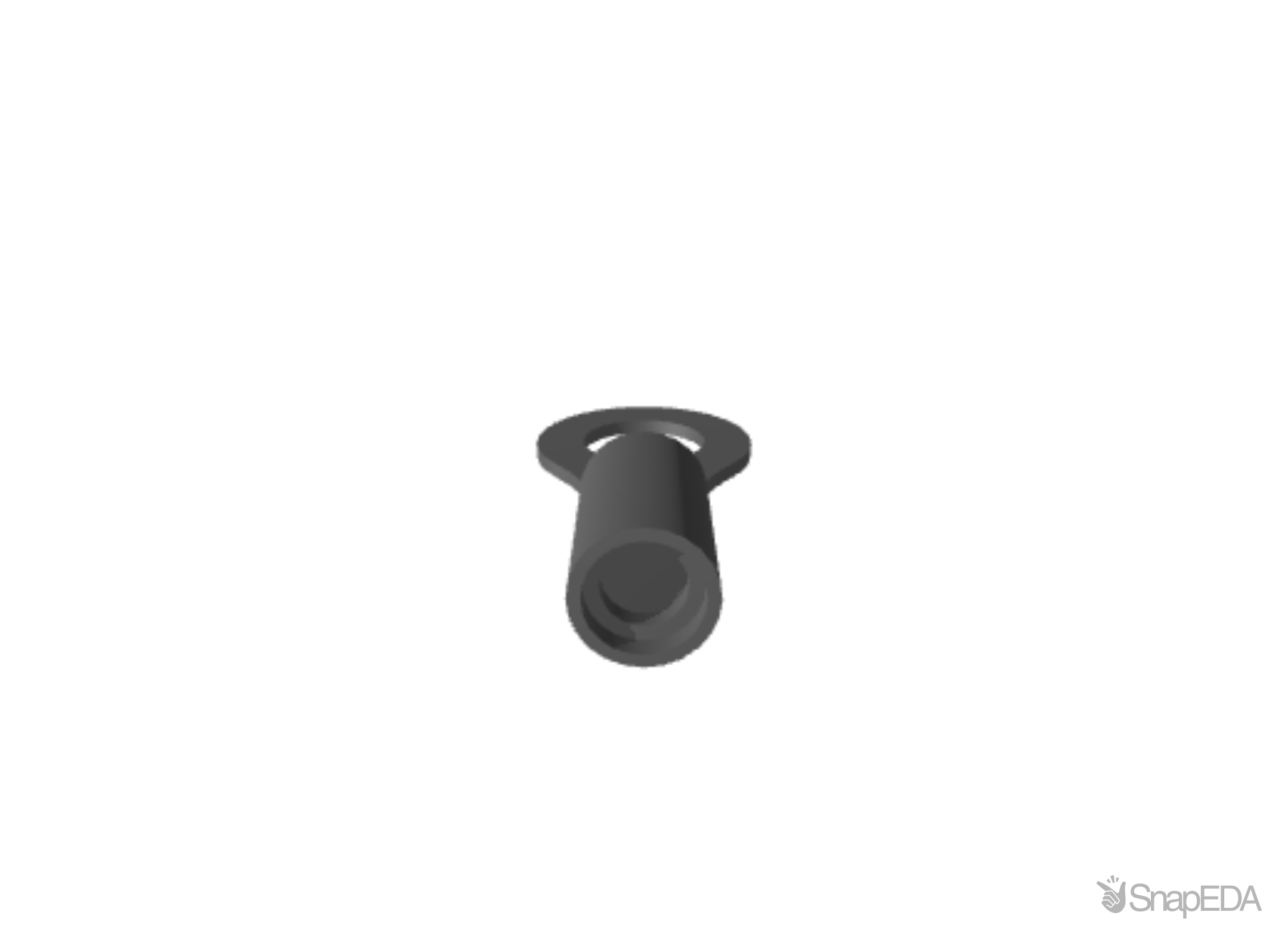

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 320563
| Part Name | 320563 |
| Manufacturer | TE Connectivity |
| Current Rating (A) | 1 |
| Wire Insulation Diameter (Max) | .15 |
| Military Part Class | Class I |
| Wire Insulation Diameter | .105 – .15 |
| Support Style | Non - Insulation Support |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | Yes |
| Plating Material | Copper |
| TE Internal Number | 320563 |
| Voltage (Max) (V) | 300 |
| Stud Diameter | .25 |
| Overall Length | 1.14 |
| Sealable | No |
| Wire Insulation Support | With |
| Number of Holes | 1 |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Ring Tongue |
| Packaging Method | Loose Piece |
| Packaging Quantity | 500 |
| Terminal Orientation | Straight |
| Barrel Type | Closed Barrel |
| RoHS | True |
| Shape Description | RING-041 |
| Weight per Piece | 1.495 |
| Heavy Duty | No |
| Stud Size | M6 |
| Government Qualified | Yes |
| Tongue Thickness | .79 |
| Wire Size | 1.25 – 2 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Minimum Wire Size Mm | 1 (mm²) |
| Maximum Wire Size Mm | 2.6 (mm²) |
| Series | PIDG |
| Colour | Blue |
| Minimum Wire Size Awg | 16 (AWG) |
| Stud Size | M6 |
| Inner Ring Diameter | 6.35 (mm) |
| Outer Ring Diameter | 11.9 (mm) |
| Contact Plating | Tin |
| Overall Length | 27.38 (mm) |
| Insulation | Insulated |
| Maximum Wire Size Awg | 14 (AWG) |
| Insulation Material | Nylon |
| Contact Material | Copper |
