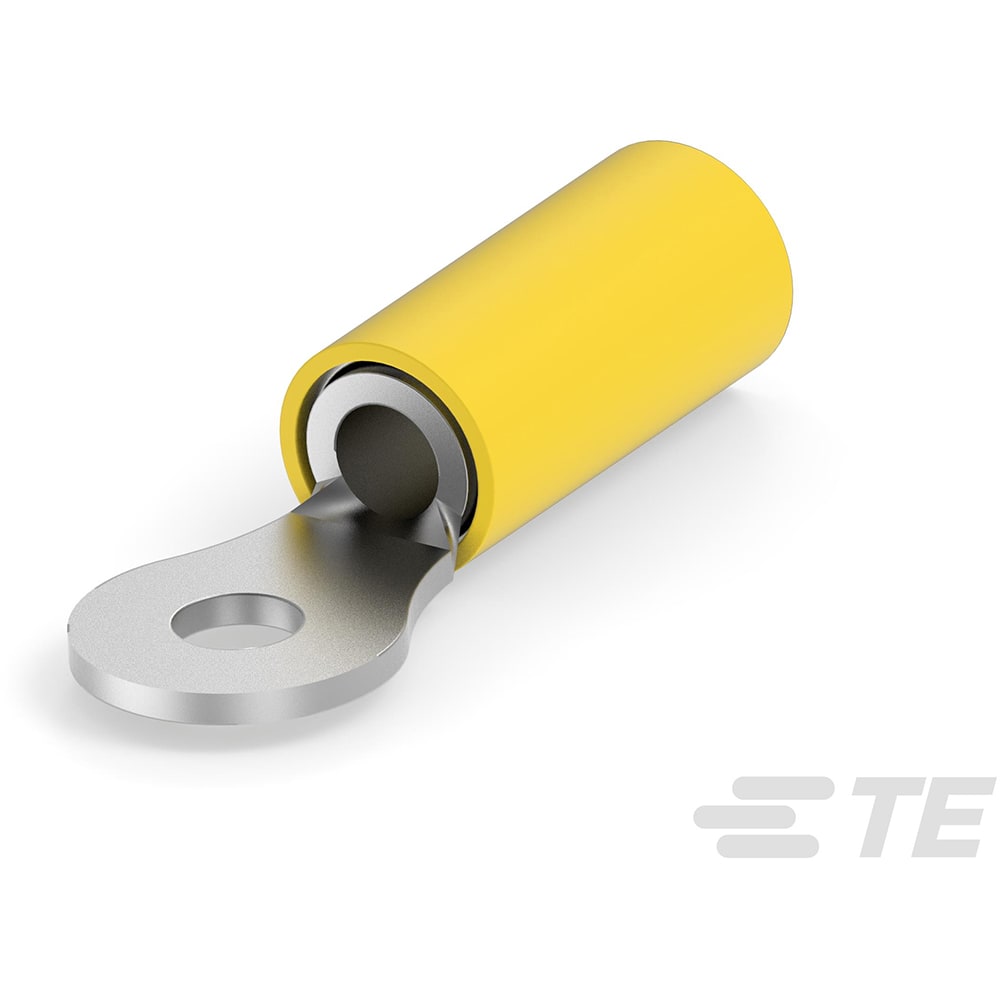

Terminal Ring Tongue, 12-10AWG, 6, Straight Closed Barrel, PIDG Series | TE Connectivity 320567
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 320567 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 320567
| Part Name | 320567 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Current Rating (A) | 1 |
| Wire Insulation Diameter (Max) | .23 |
| Military Part Class | Class I |
| Wire Insulation Diameter | 3.81 – 5.842 |
| Support Style | Non - Insulation Support |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | Yes |
| Plating Material | Copper |
| TE Internal Number | 320567 |
| Voltage (Max) (V) | 300 |
| Stud Diameter | .145 |
| Overall Length | 27.51 |
| Sealable | No |
| Wire Insulation Support | With |
| Number of Holes | 1 |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Ring Tongue |
| Packaging Method | Box |
| Packaging Quantity | 500 |
| Terminal Orientation | Straight |
| Barrel Type | Closed Barrel |
| RoHS | True |
| Shape Description | RING-041 |
| Weight per Piece | 2.247 |
| Heavy Duty | No |
| Stud Size | #6 |
| Government Qualified | Yes |
| Tongue Thickness | .031 |
| Wire Size | 12 – 10 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | PIDG |
| Minimum Wire Size (Mm²) | 2.6 (mm²) |
| Minimum Wire Size (Awg) | 12 (AWG) |
| Colour | Yellow |
| Maximum Wire Size (Mm²) | 6.6 (mm²) |
| Stud Size | M3.5 |
| Maximum Wire Size (Awg) | 10 (AWG) |
| Contact Plating | Tin |
| Overall Length | 27.51 (mm) |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Contact Material | Copper |
