3266X-1-102LF
1/4" Sq, Thru-Hole, TRIMMER, 1 Kilohms, Cermet, 12 Turns, Pwr-Rtg 0.25W | Bourns 3266X-1-102LF
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3266X-1-102LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

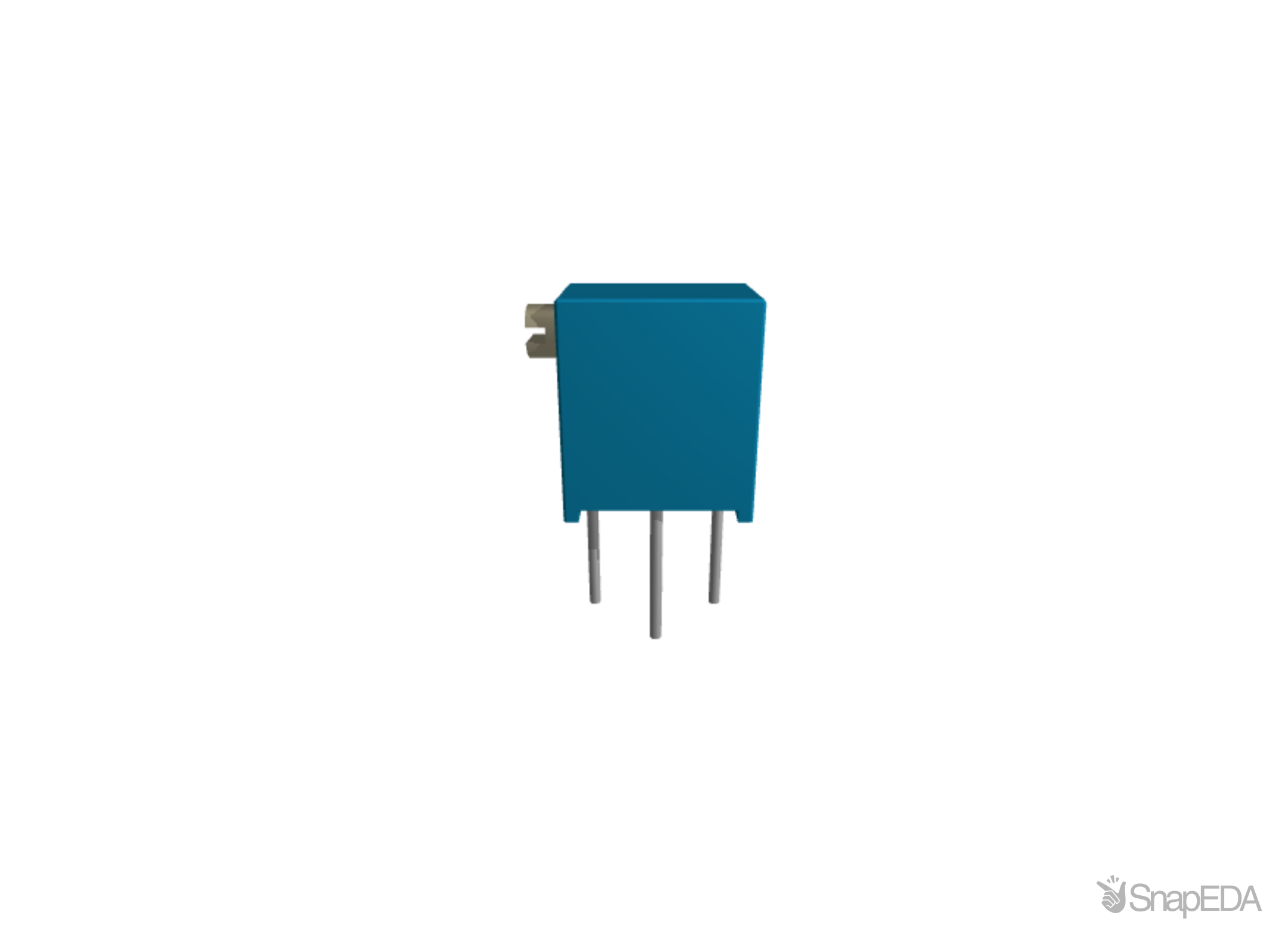

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3266X-1-102LF
| Part Name | 3266X-1-102LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 1.78 mm |
| Orientation | Side Adjust |
| Mounting Type | Through Hole |
| Series | 3266 |
| Termination Style | Pin |
| Number Of Turns | 12 |
| Temperature Coefficient | ±100 (ppm/°C) |
| Length | 7.73 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.25 (W) |
| Maximum Resistance | 1 (kΩ) |
| Tolerance | ±10 (%) |
| Maximum Operating Temperature | +150 (°C) |
Inventory for the 3266X-1-102LF by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
300
|
385 x $0.88
|
Visit Site | |
| Arrow Asia |
1
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
324
|
|
Visit Site | |
| Conrad |
24
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Newark |
749
|
|
Visit Site | |
| RS UK |
2
|
|
Visit Site | |
| TME |
63
|
|
Visit Site | |
| TTI Europe |
1,300
|
|
Visit Site | |
| Verical |
85
|
|
Visit Site |
No issues have been reported for the 3266X-1-102LF
