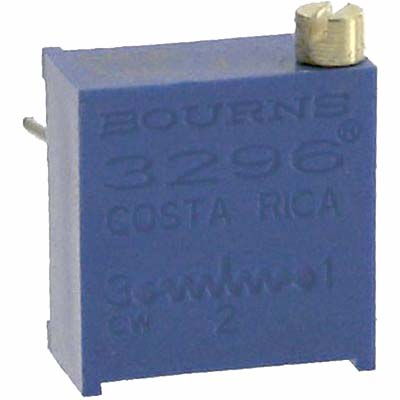

3296P-1-203LF
Trimmer, Cermet, Rest 20 Kilohms, PCB, 25 Turns, Pwr-Rtg 0.5W | Bourns 3296P-1-203LF
Availability: In Stock
Package Type: NON-STANDARD-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3296P-1-203LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

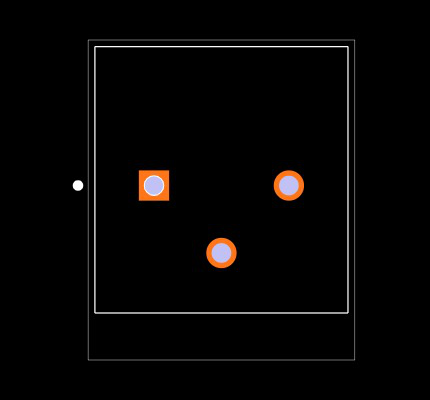

Footprint
No web preview
This Footprint is Available for

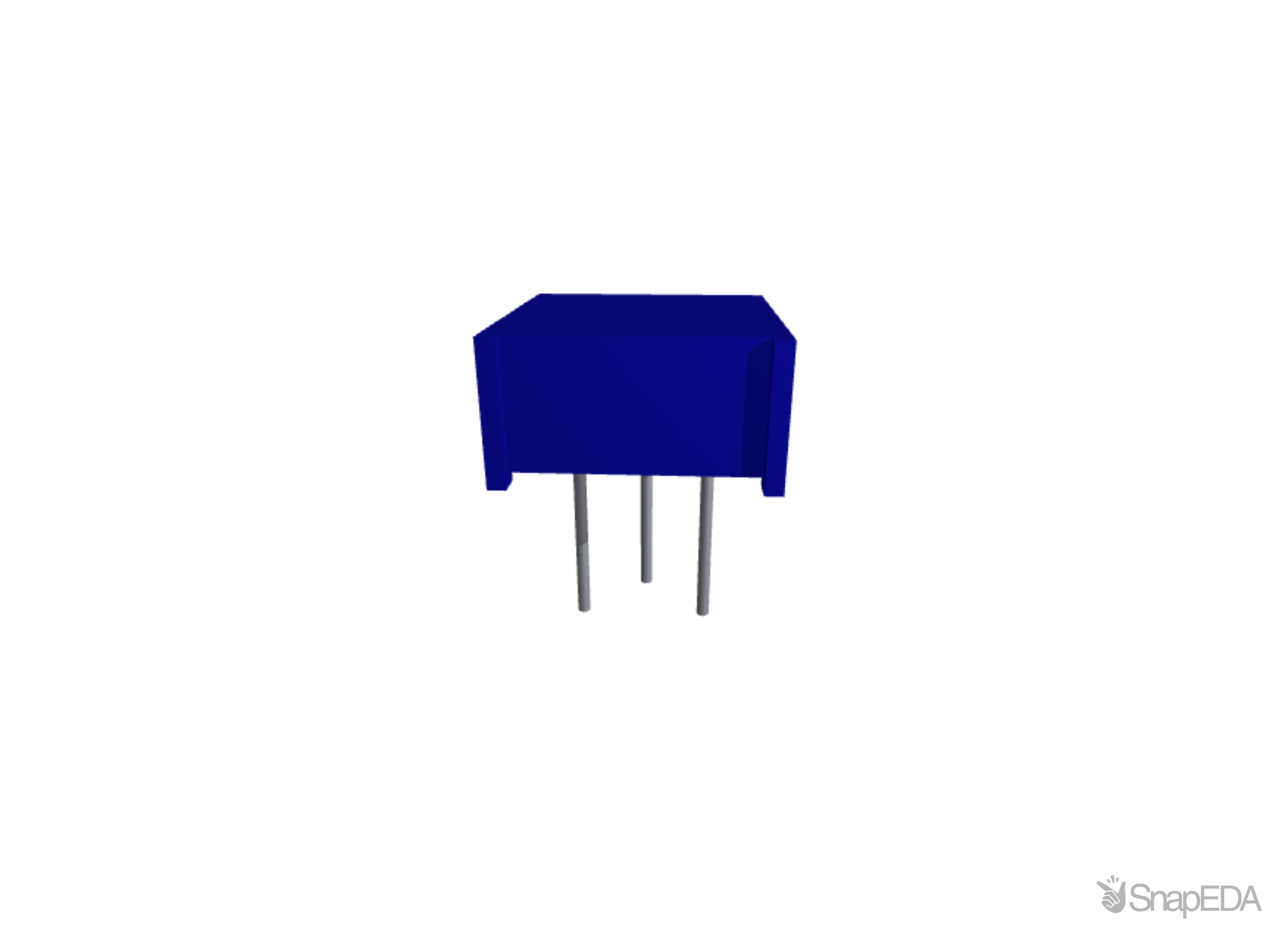

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3296P-1-203LF
| Part Name | 3296P-1-203LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 2.19 mm |
| Orientation | Side Adjust |
| Mounting Type | Through Hole |
| Series | 3296 |
| Termination Style | Pin |
| Number Of Turns | 25 |
| Temperature Coefficient | ±100 (ppm/°C) |
| Length | 9.53 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.5 (W) |
| Maximum Resistance | 20 (kΩ) |
| Tolerance | ±10 (%) |
| Maximum Operating Temperature | +125 (°C) |
