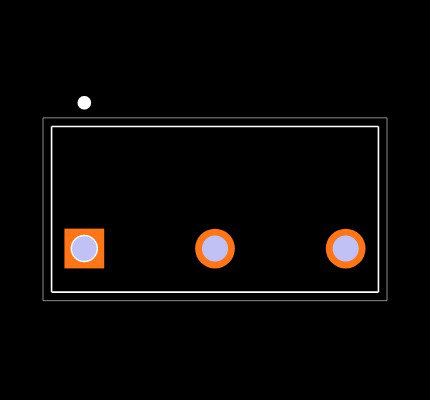

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
3299W-1-202LF

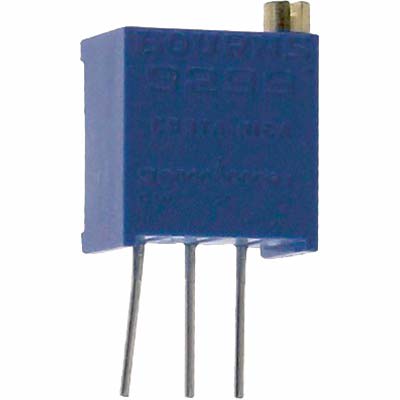

Trimmer, Cermet, Rest 2 Kilohms, PCB, 25 Turns, Pwr-Rtg 0.5W | Bourns 3299W-1-202LF
Availability: In Stock
Package Type: DIP-3
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3299W-1-202LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

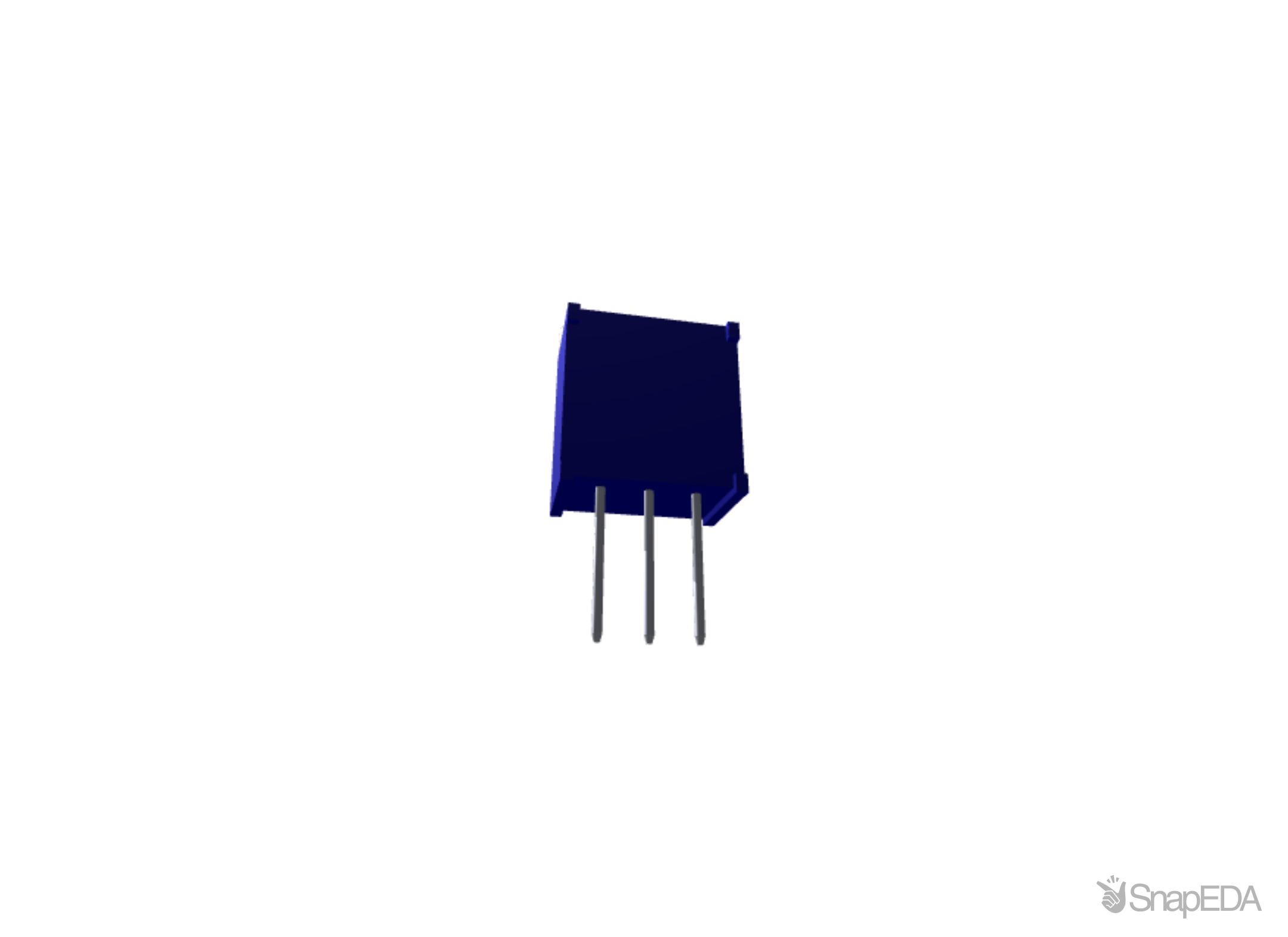

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3299W-1-202LF
| Part Name | 3299W-1-202LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 2.29 mm |
| Orientation | Top Adjust |
| Mounting Type | Through Hole |
| Series | 3299 |
| Termination Style | Pin |
| Number Of Turns | 25 |
| Temperature Coefficient | ±100 (ppm/°C) |
| Length | 9.53 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.5 (W) |
| Maximum Resistance | 2 (kΩ) |
| Tolerance | ±10 (%) |
| Maximum Operating Temperature | +125 (°C) |
