3310C-001-103L

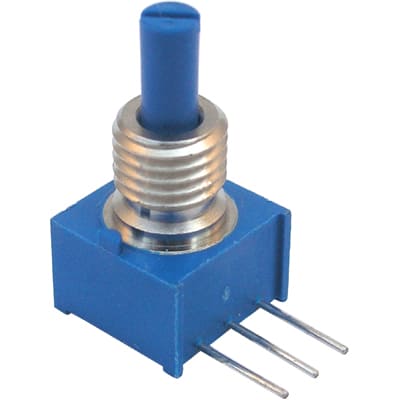

Potentiometer Conductive Plastic 10k Power 0.25W Shaft Dia 0.125In 3310 Series | Bourns 3310C-001-103L
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3310C-001-103L by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

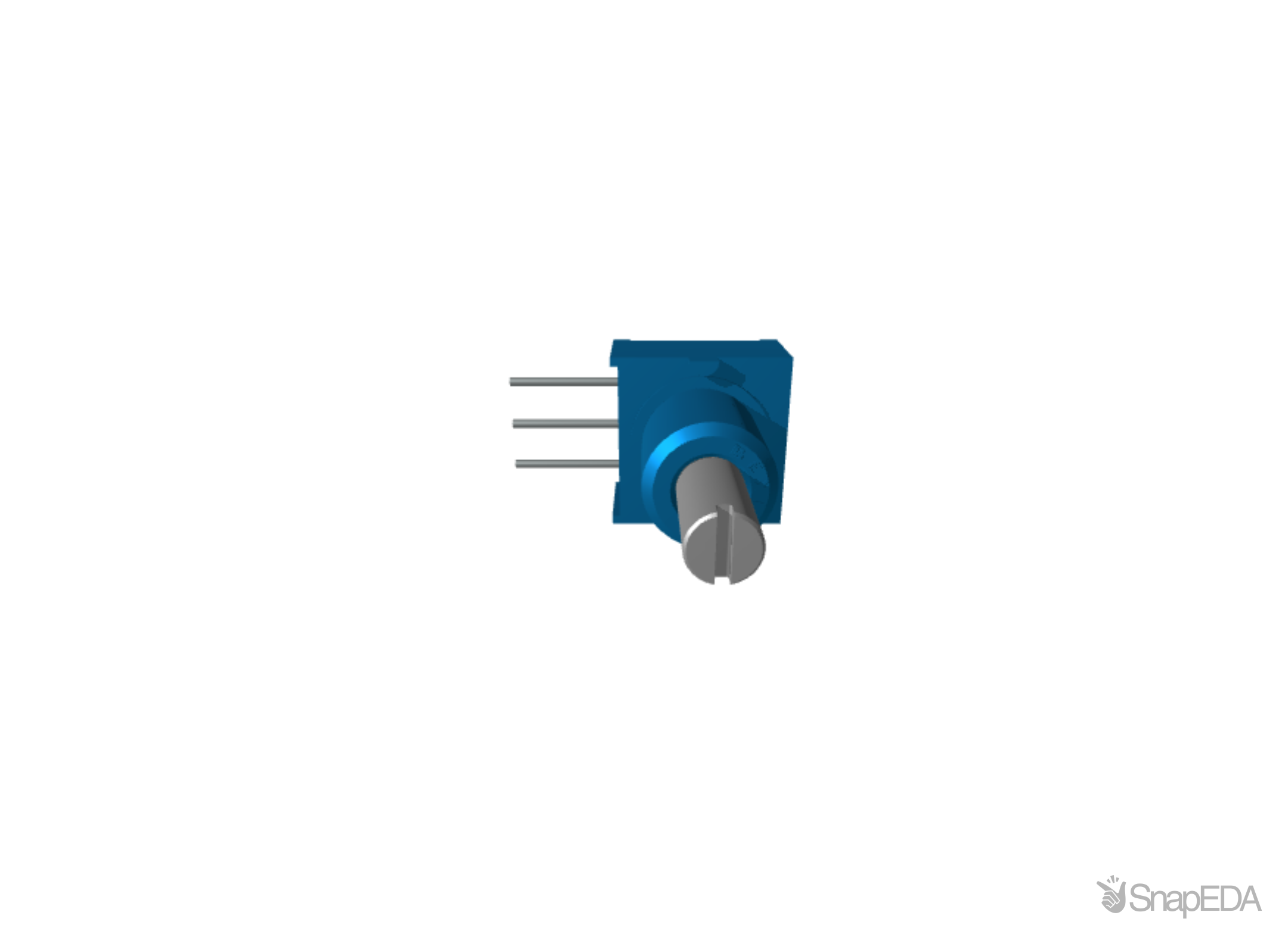

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3310C-001-103L
| Part Name | 3310C-001-103L |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Element Material | Conductive Plastic |
| Shaft Diameter | 3.18 mm |
| Potentiometer Type | Rotary |
| Series | 3310 |
| Termination Style | PC Pin |
| Number Of Gangs | 1 |
| Number Of Turns | 1 |
| Shaft Length | 12.7 (mm) |
| Actuator Type | Slotted Shaft |
| Electrical Taper | Linear |
| Power Rating | 0.25 (W) |
| Maximum Resistance | 10 (kΩ) |
| Tolerance | ±20 (%) |
Inventory for the 3310C-001-103L by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,244
|
|
Visit Site | |
|
★ Featured
|
488
|
|
Visit Site | |
|
★ Featured
|
200
|
192 x $1.81
|
Visit Site | |
| Arrow Electronics |
2
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
55
|
|
Visit Site | |
| Chip One Stop |
39
|
|
Visit Site | |
| Conrad |
17
|
|
Visit Site | |
| Farnell UK |
466
|
|
Visit Site | |
| Newark |
446
|
|
Visit Site | |
| Onlinecomponents |
510
|
|
Visit Site | |
| RS Americas |
1
|
|
Visit Site | |
| RS UK |
198
|
|
Visit Site | |
| TME |
150
|
|
Visit Site | |
| TTI Americas |
5,580
|
10 x $2.54
|
Visit Site | |
| Verical |
500
|
|
Visit Site | |
| element14 Singapore |
446
|
|
Visit Site |
No issues have been reported for the 3310C-001-103L
If you experienced any issues with this part, please report it.
