3310Y-001-104L

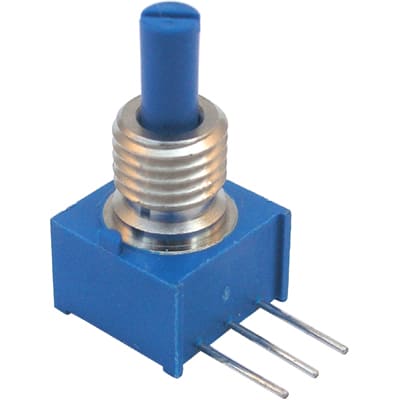

Potentiometer Panel Control 9mm Square Base Power 0.25W 100 kOhm 3310 Series | Bourns 3310Y-001-104L
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3310Y-001-104L by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

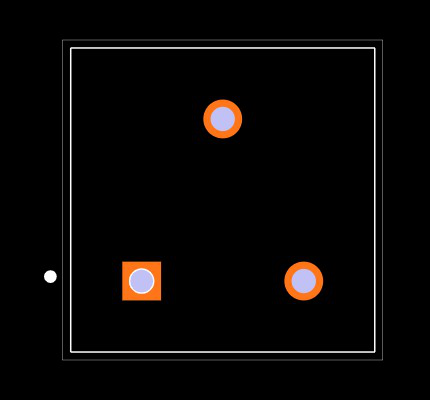

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3310Y-001-104L
| Part Name | 3310Y-001-104L |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 3.18 mm |
| Actuator Type | Slotted Shaft |
| Mounting Type | Panel Mount, Through Hole |
| Potentiometer Type | Rotary |
| Series | 3310 |
| Termination Style | PC Pin |
| Number Of Gangs | 1 |
| Number Of Turns | 1 |
| Shaft Length | 12.7 (mm) |
| Maximum Resistance | 100 (kΩ) |
| Electrical Taper | Linear |
| Power Rating | 0.25 (W) |
| Element Material | Conductive Plastic |
| Tolerance | ±20 (%) |
