33462
Terminal Ring Tongue 8AWG Stud Sz 5/16 | TE Connectivity 33462
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 33462 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

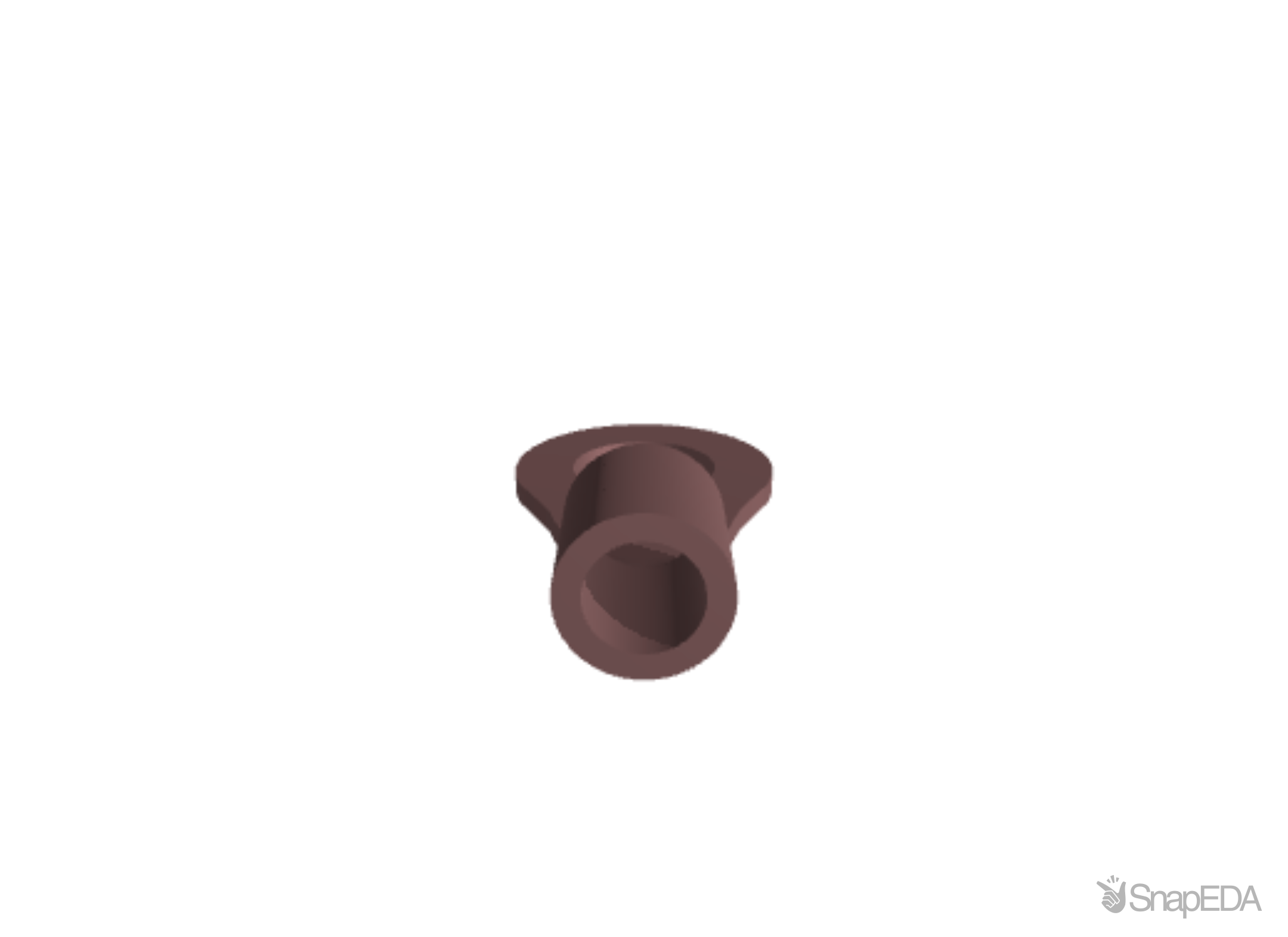

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 33462
| Part Name | 33462 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Current Rating (A) | 1 |
| Inspection Slot | No |
| Operating Temperature Range | 338 |
| Terminal & Splice Type | Ring Tongue |
| Barrel Type | Closed Barrel |
| Packaging Method | Loose Piece |
| Packaging Quantity | 100 |
| Support Style | Non - Insulation Support |
| Terminal Orientation | Offset |
| Wire/Cable Type | Copper |
| Terminal Angle | Straight |
| Number of Holes | 1 |
| Shape Description | RING-048 |
| Insulated | No |
| Wire Size | 8 |
| Barrel Inside Diameter | .172 |
| Plating Material | Tin |
| Heavy Duty | No |
| Government Qualified | No |
| TE Internal Number | 33462 |
| Stud Size | 5/16 |
| Stud Diameter | .328 |
| Overall Length | 29.67 |
| Tongue Thickness | .047 |
| Sealable | No |
| Wire Insulation Support | Without |
