3386F-1-202TLF

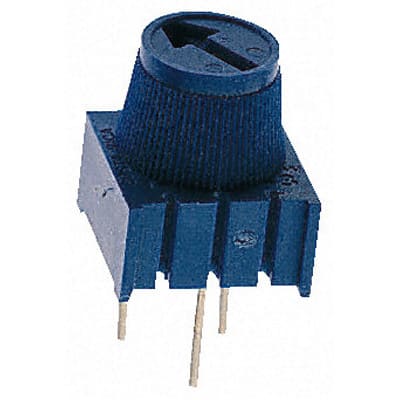

3/8" Sq, Thru-Hole, TRIMMER, 2 Kilohms, Cermet, Single Turn | Bourns 3386F-1-202TLF
Availability: In Stock
Package Type: 3386F-3
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3386F-1-202TLF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

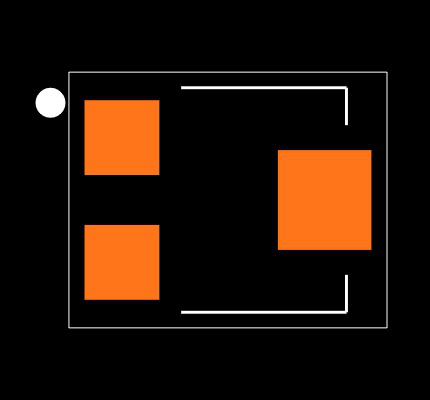

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

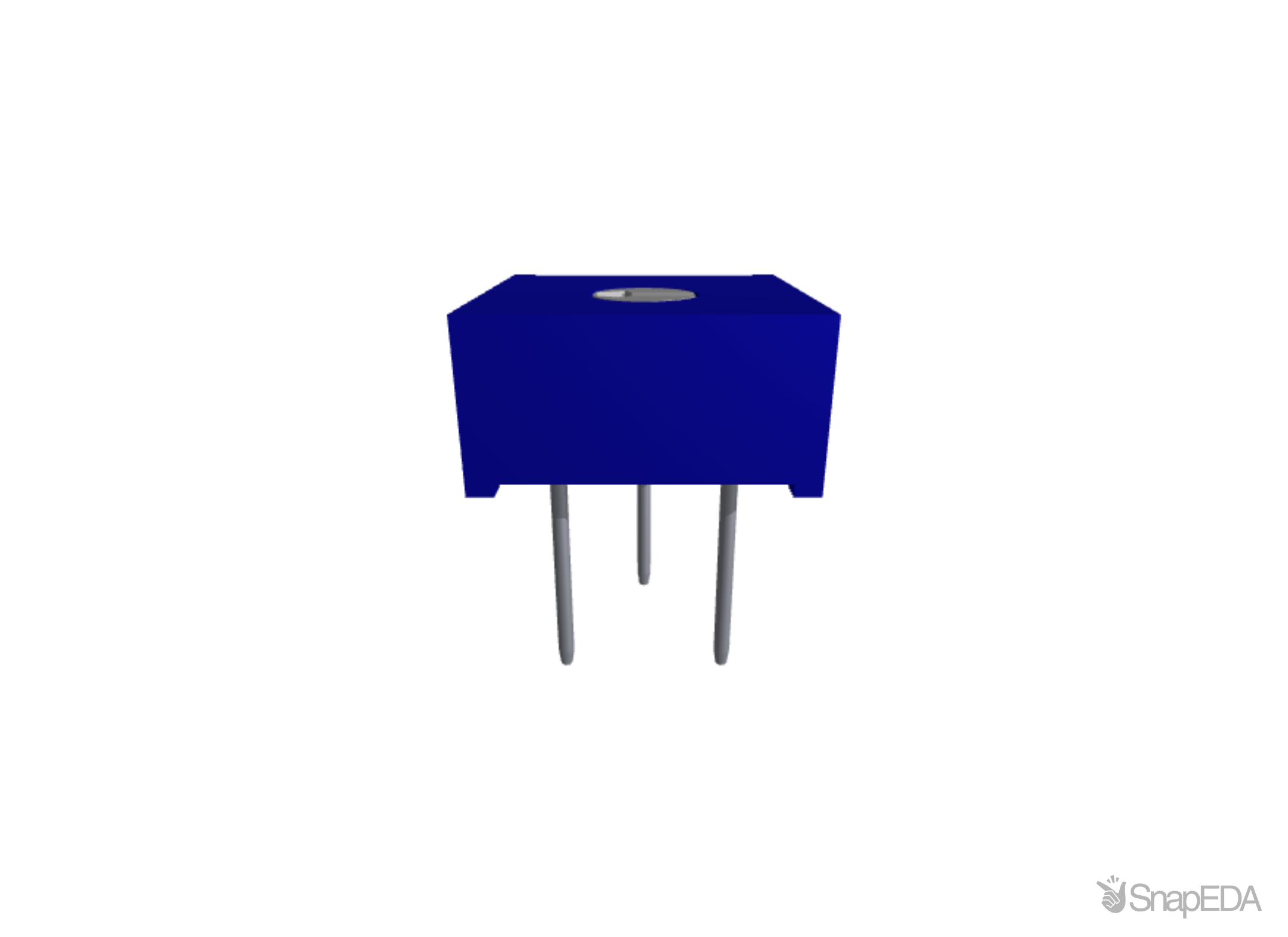

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3386F-1-202TLF
| Part Name | 3386F-1-202TLF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 5.59 mm |
| Orientation | Top Adjust |
| Mounting Type | Through Hole |
| Series | 3386 |
| Termination Style | Pin |
| Number Of Turns | 1 |
| Temperature Coefficient | ±100 (ppm/°C) |
| Length | 9.53 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.5 (W) |
| Maximum Resistance | 2 (kΩ) |
| Tolerance | ±10 (%) |
| Maximum Operating Temperature | +125 (°C) |
Inventory for the 3386F-1-202TLF by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
364
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
200 x $1.79
|
Visit Site | |
| Chip One Stop |
166
|
107 x $1.39
|
Visit Site | |
| Farnell UK |
141
|
|
Visit Site | |
| Newark |
141
|
|
Visit Site | |
| Onlinecomponents |
34
|
|
Visit Site | |
| RS UK |
233
|
50 x $2.17
|
Visit Site | |
| TME |
166
|
|
Visit Site | |
| Verical |
166
|
59 x $1.06
|
Visit Site | |
| element14 Singapore |
141
|
|
Visit Site |
No issues have been reported for the 3386F-1-202TLF
If you experienced any issues with this part, please report it.
