34115
Terminal Ring Tongue, 22-16AWG, 3/8 Straight Closed Barrel, Solistrand Series | TE Connectivity 34115
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34115 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

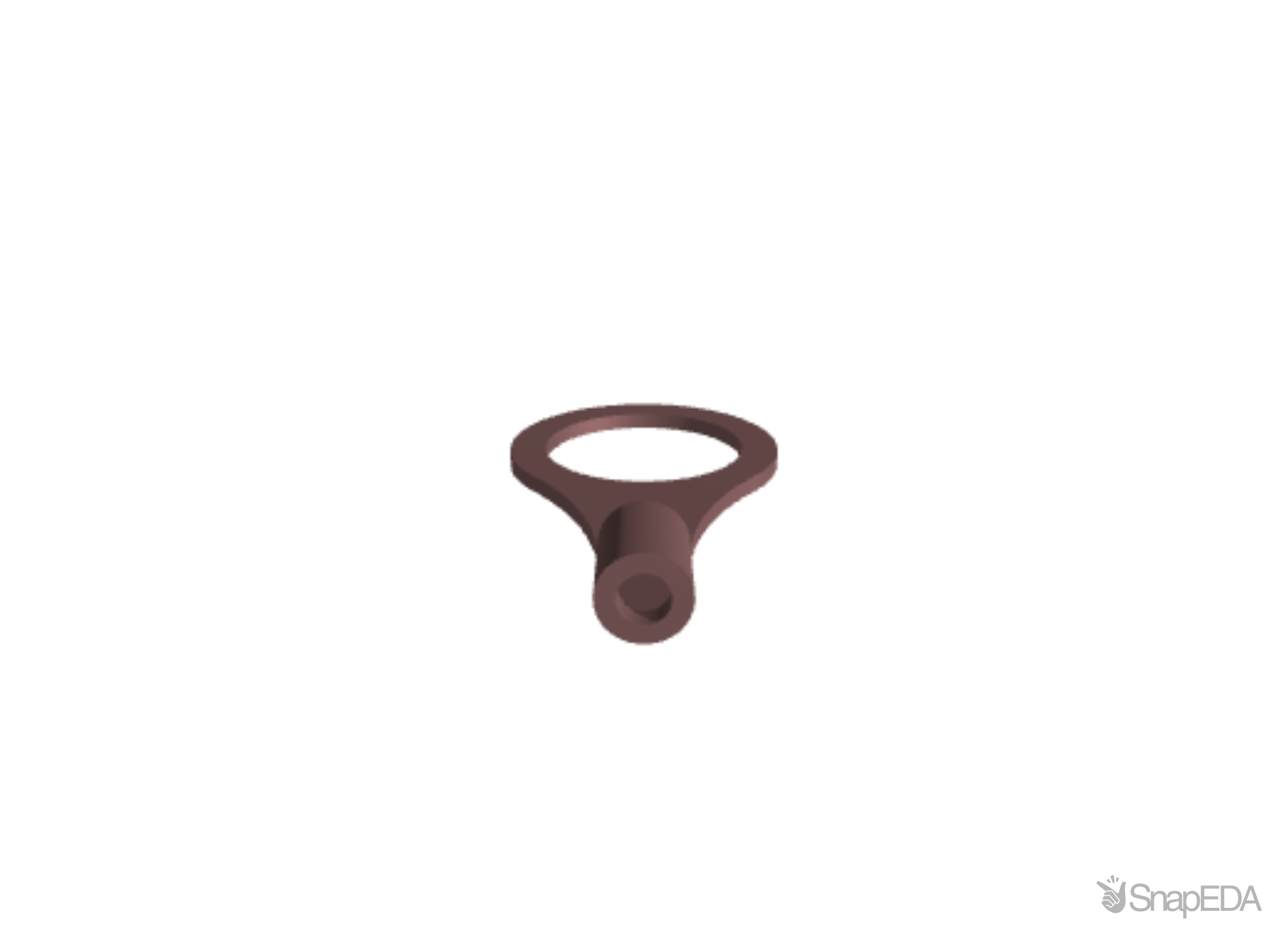

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34115
| Part Name | 34115 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Current Rating (A) | 1 |
| Inspection Slot | No |
| Operating Temperature Range | 170 |
| Terminal & Splice Type | Ring Tongue |
| Military Part Class | Class II |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Support Style | Non - Insulation Support |
| Terminal Orientation | Offset |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Number of Holes | 1 |
| Shape Description | RING-048 |
| Insulated | No |
| Wire Size | .3 – 1.42 |
| Barrel Inside Diameter | 1.549 |
| Plating Material | Copper |
| Heavy Duty | No |
| Barrel Type | Closed Barrel |
| Weight per Piece | 7.619 |
| TE Internal Number | 34115 |
| Stud Size | 3/8 |
| Stud Diameter | 9.91 |
| Overall Length | 25.27 |
| Government Qualified | Yes |
| Tongue Thickness | .79 |
| Sealable | No |
| Wire Insulation Support | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.26 (mm²) |
| Maximum Wire Size Mm | 1.65 (mm²) |
| Series | SOLISTRAND |
| Minimum Wire Size Awg | 22 (AWG) |
| Stud Size | M10 |
| Contact Plating | Tin |
| Overall Length | 25.27 (mm) |
| Insulation | Uninsulated |
| Maximum Wire Size Awg | 16 (AWG) |
| Contact Material | Copper |
Inventory for the 34115 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,700
|
750 x $0.22
|
Visit Site | |
|
★ Featured
|
10,514
|
|
Visit Site | |
|
★ Featured
|
11,359
|
|
Visit Site | |
| Onlinecomponents |
4,899
|
|
Visit Site | |
| Verical |
255
|
255 x $0.17
|
Visit Site |
No issues have been reported for the 34115
