3413.0221.22

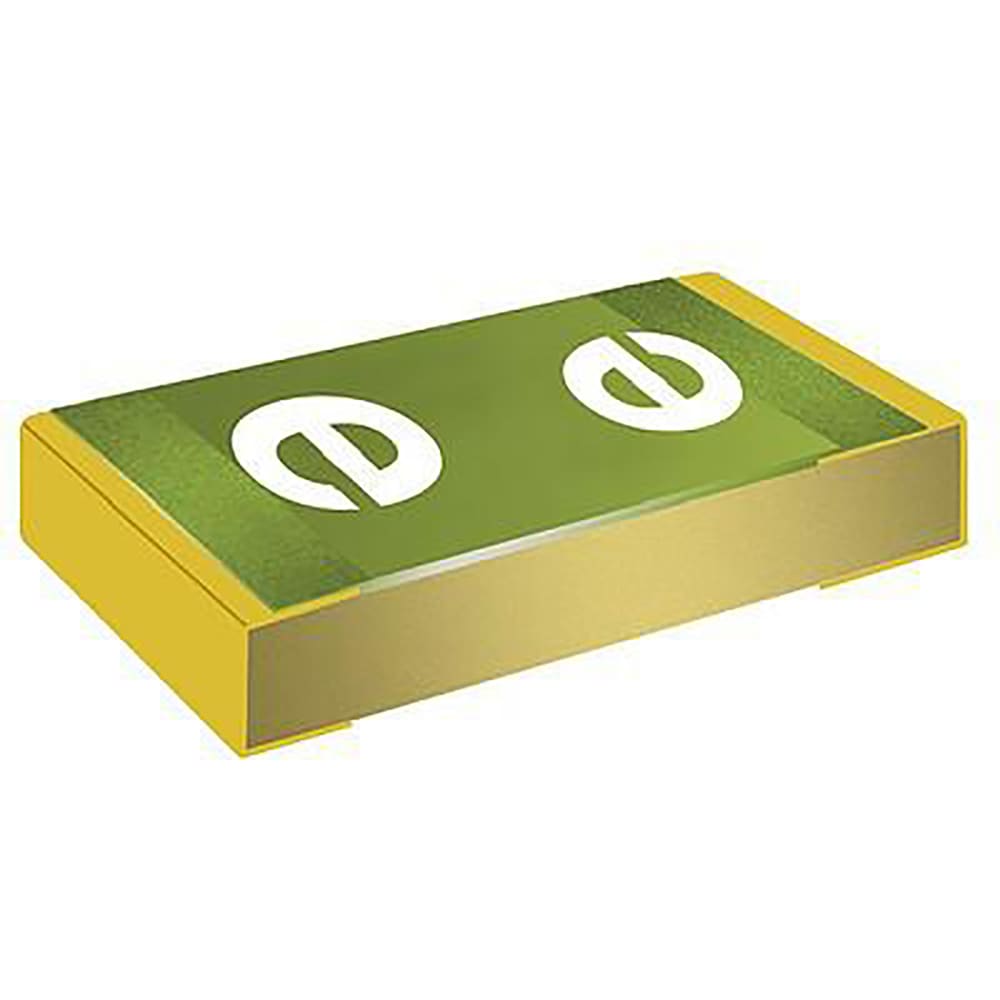

Fuse Quick-Acting 3.2x1.6mm 3.15A 32VAC/63DC Epoxyd Glass PCB/SMT Taped-1000 | Schurter 3413.0221.22
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3413.0221.22 by Schurter and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

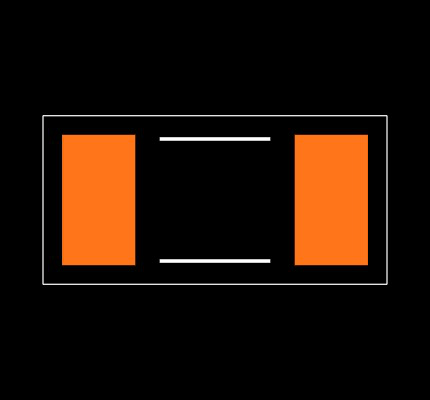

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3413.0221.22
| Part Name | 3413.0221.22 |
| Manufacturer | Schurter |
| Category | Circuit Breakers, Fuses & Protection |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3.15 (A) |
| Dimensions | 3.2 x 1.6 x 0.6 (mm) |
| Voltage Rating (V) | 32 V ac, 63 (V dc) |
| Terminal Material | Tin Plated Copper Alloy |
| Body Material | Epoxy Glass |
| Body Length | 3.2 (mm) |
| Fuse Speed | F |
| Body Height | 0.6 (mm) |
| Breaking Capacity At Maximum Voltage Rating (V) | 63 A @ 32 V ac, 63 A @ 63 V dc |
| Body Width | 1.6 (mm) |
| Maximum Operating Temperature | +90 (°C) |
| Minimum Operating Temperature | -55 (°C) |
Inventory for the 3413.0221.22 by Schurter from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,353
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Onlinecomponents |
1,000
|
|
Visit Site | |
| RS Americas |
1,000
|
|
Visit Site | |
| Sager |
9,000
|
|
Visit Site | |
| Verical |
1,000
|
|
Visit Site |
No issues have been reported for the 3413.0221.22
