34131
Terminal Inline, Individual Openings (Parallel) Connector Crimp 16-22 AWG Red
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34131 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

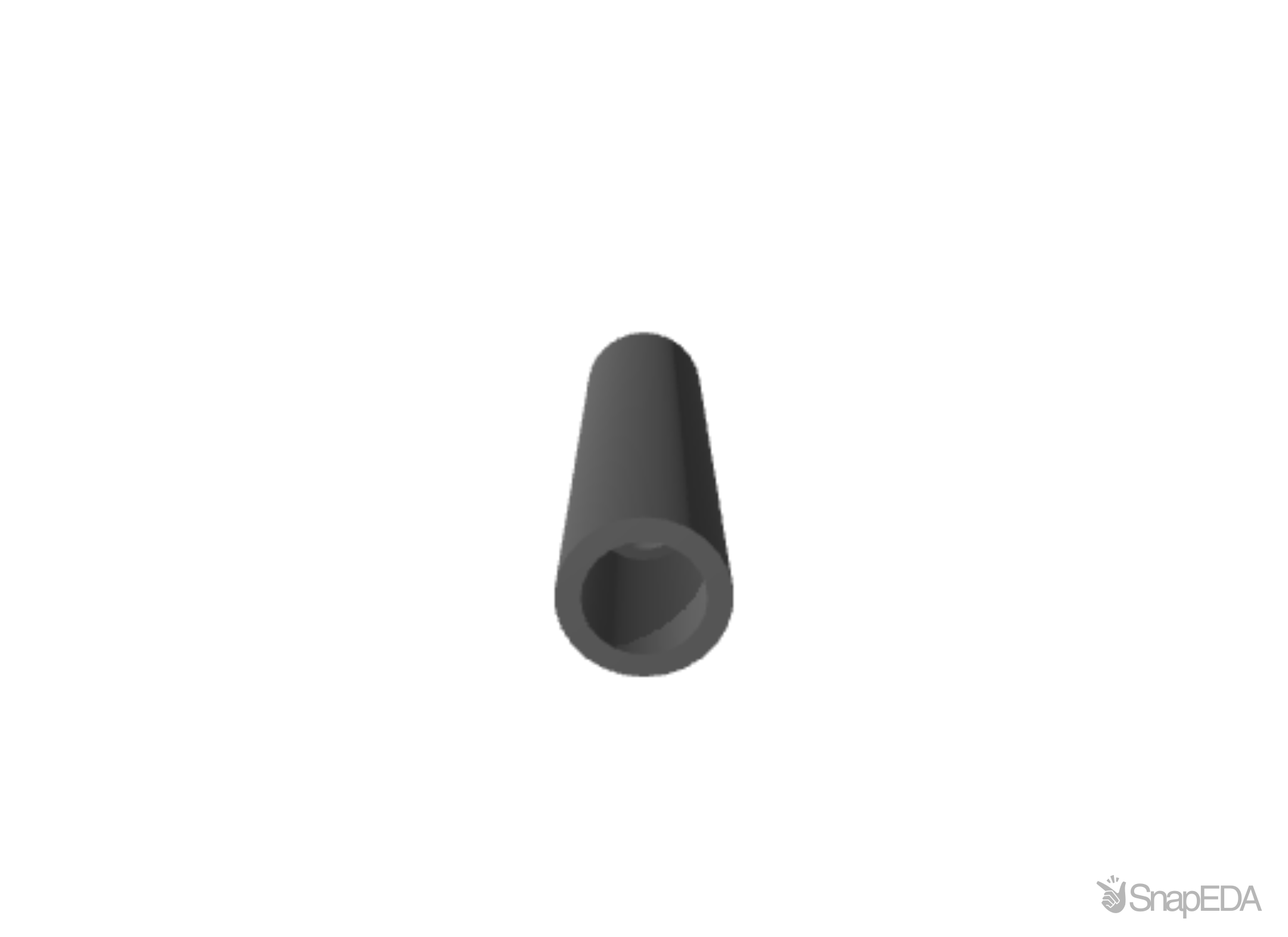

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34131
| Part Name | 34131 |
| Manufacturer | TE Connectivity |
| Wire Insulation Diameter (Max) | .12 |
| Serrated | Yes |
| Support Style | Insulation Support |
| Wire/Cable Type | Copper |
| Insulated | Yes |
| Splice Type | Parallel Splice |
| Plating Material | Tin |
| Contact Plating Material | Tin |
| TE Internal Number | 34131 |
| Military Category | No |
| Overall Length | 19.304 |
| Product Type | Splice |
| Wire Insulation Support | With |
| Operating Temperature Range | 221 |
| Terminal & Splice Type | Splice |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Splice Features | Standard |
| Insulation Sleeve Material | Vinyl |
| Barrel Type | Closed Barrel |
| Splice Material | Copper |
| RoHS | True |
| Sealable | No |
| Weight per Piece | .66 |
| Color | Red |
| Heavy Duty | No |
| Accessory Type | Splice |
| Government Qualified | No |
| Wire Size | 22 – 16 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
