34690-0160

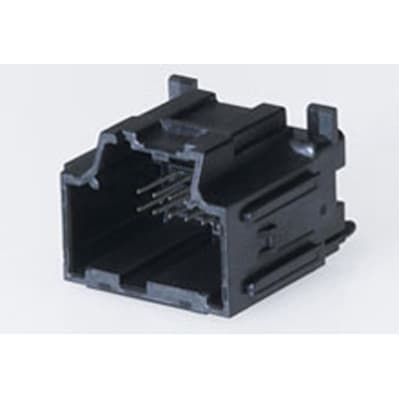

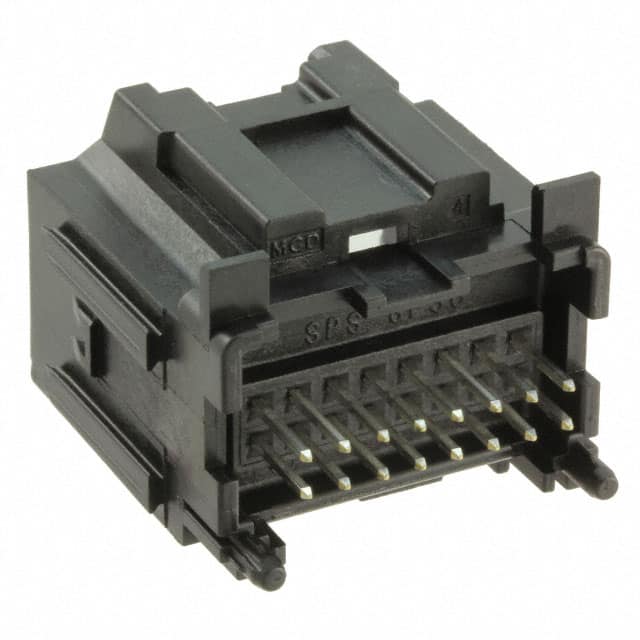

STAC64 Series, 16 Way Through Hole Plug PCB Connector | Molex Incorporated 34690-0160
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34690-0160 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

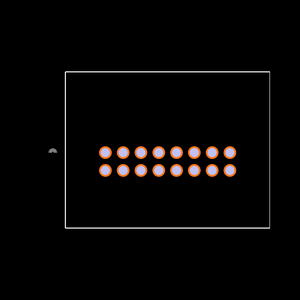

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34690-0160
| Part Name | 34690-0160 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Current Rating (A) | 10 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Gender | Male |
| Colour | Black |
| Height | 15.86 (mm) |
| Housing Material | Thermoplastic |
| Width | 28.96 (mm) |
| Depth | 28.05 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Series | Stac64 |
| Number Of Contacts | 16 |
| Type | PCB Connector |
| Maximum Operating Temperature | +100 (°C) |
| Series Number | 34690 |
Inventory for the 34690-0160 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,152
|
|
Visit Site | |
|
★ Featured
|
60
|
250 x $1.40
|
Visit Site | |
| Verical |
616
|
616 x $1.20
|
Visit Site |
No issues have been reported for the 34690-0160
If you experienced any issues with the symbol or footprint, please report it.
