34691-0120

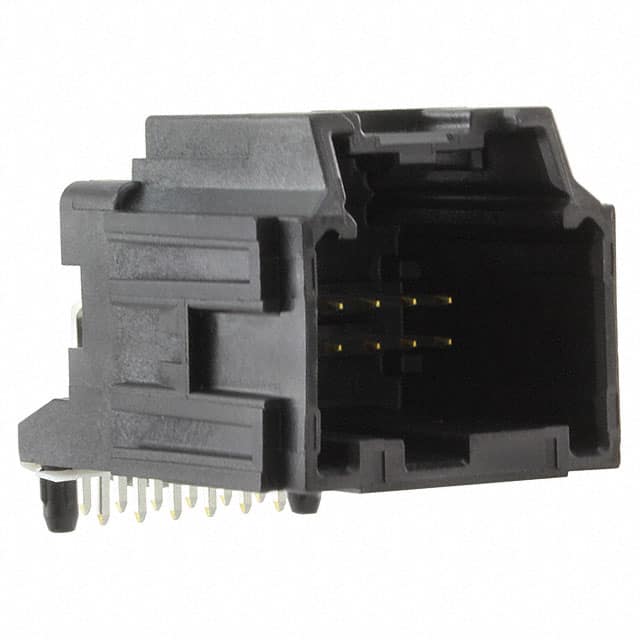

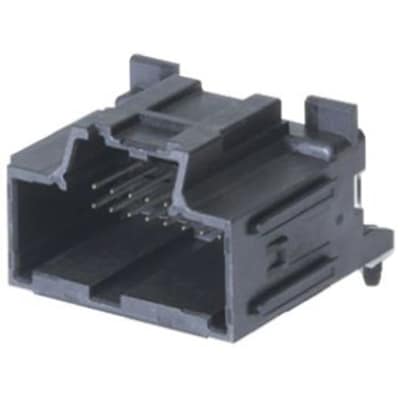

STAC64 Series, 12 Way Through Hole Plug PCB Connector | Molex Incorporated 34691-0120
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34691-0120 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

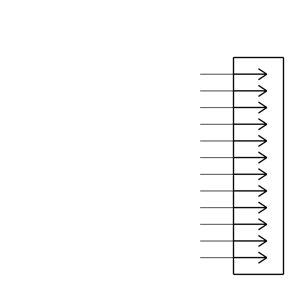

Symbol
No web preview
This Symbol is Available for

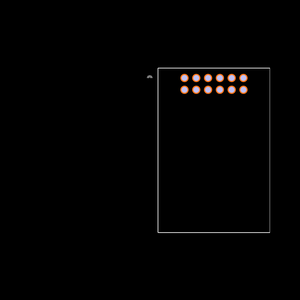

Footprint
No web preview
This Footprint is Available for

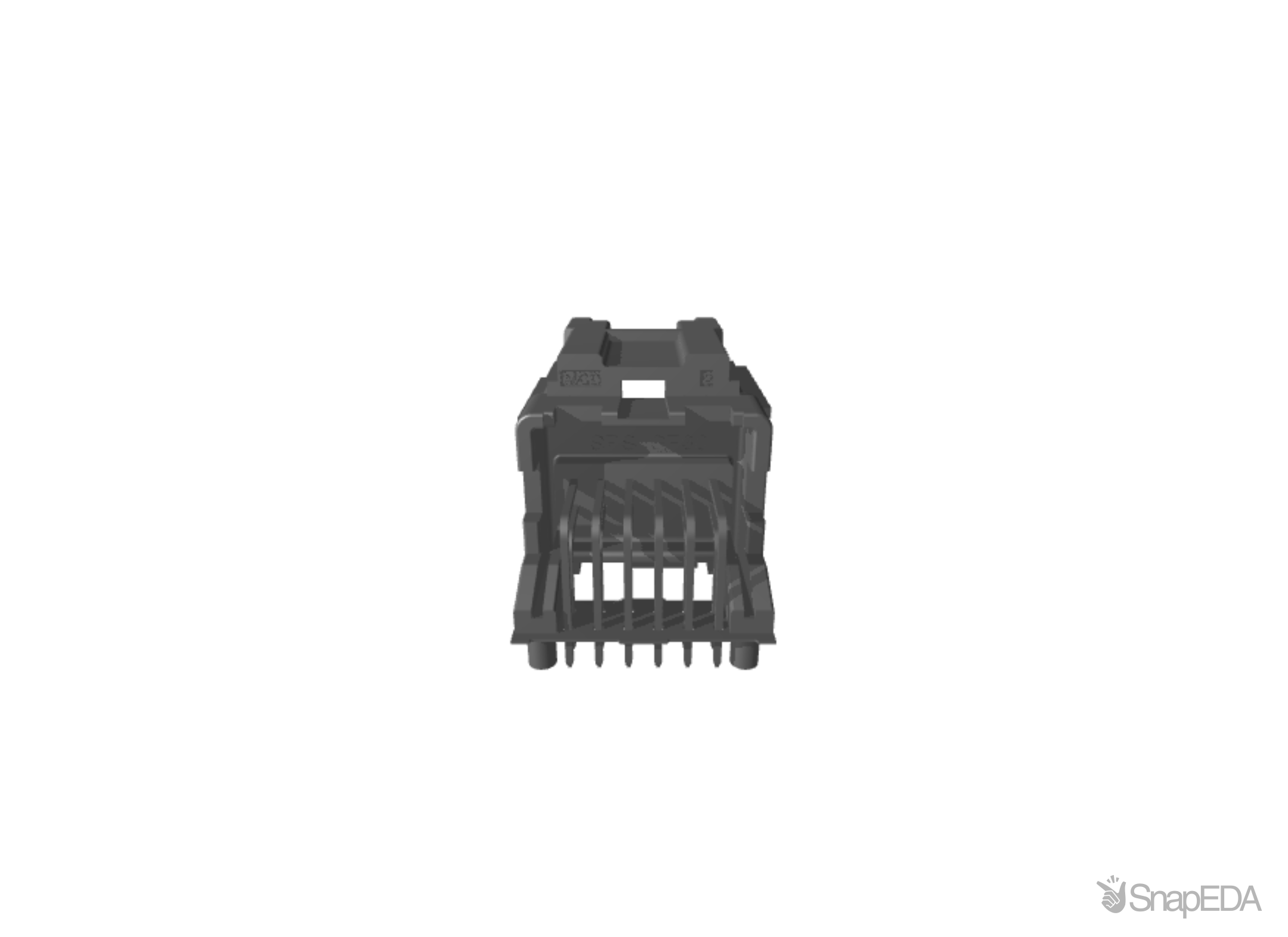

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34691-0120
| Part Name | 34691-0120 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 10 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Series | Stac64 |
| Colour | Black |
| Series Number | 34691 |
| Height | 22.05 (mm) |
| Housing Material | Thermoplastic |
| Width | 23.88 (mm) |
| Depth | 31.89 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Gender | Male |
| Number Of Contacts | 12 |
| Type | PCB Connector |
| Maximum Operating Temperature | +100 (°C) |
| Contact Material | Brass |
