34826-0124
Conn Shrouded Header (4 Sides) HDR 12 POS 2mm Solder RA Thru-Hole Mini 50 Automotive Tray
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 34826-0124 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

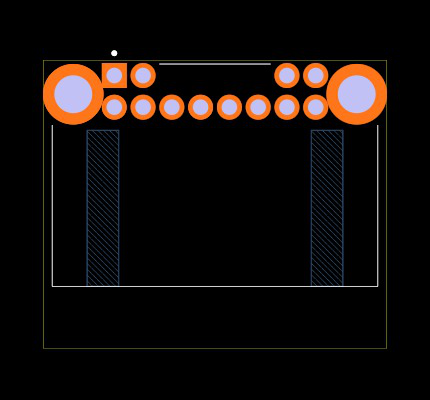

Footprint
No web preview
This Footprint is Available for

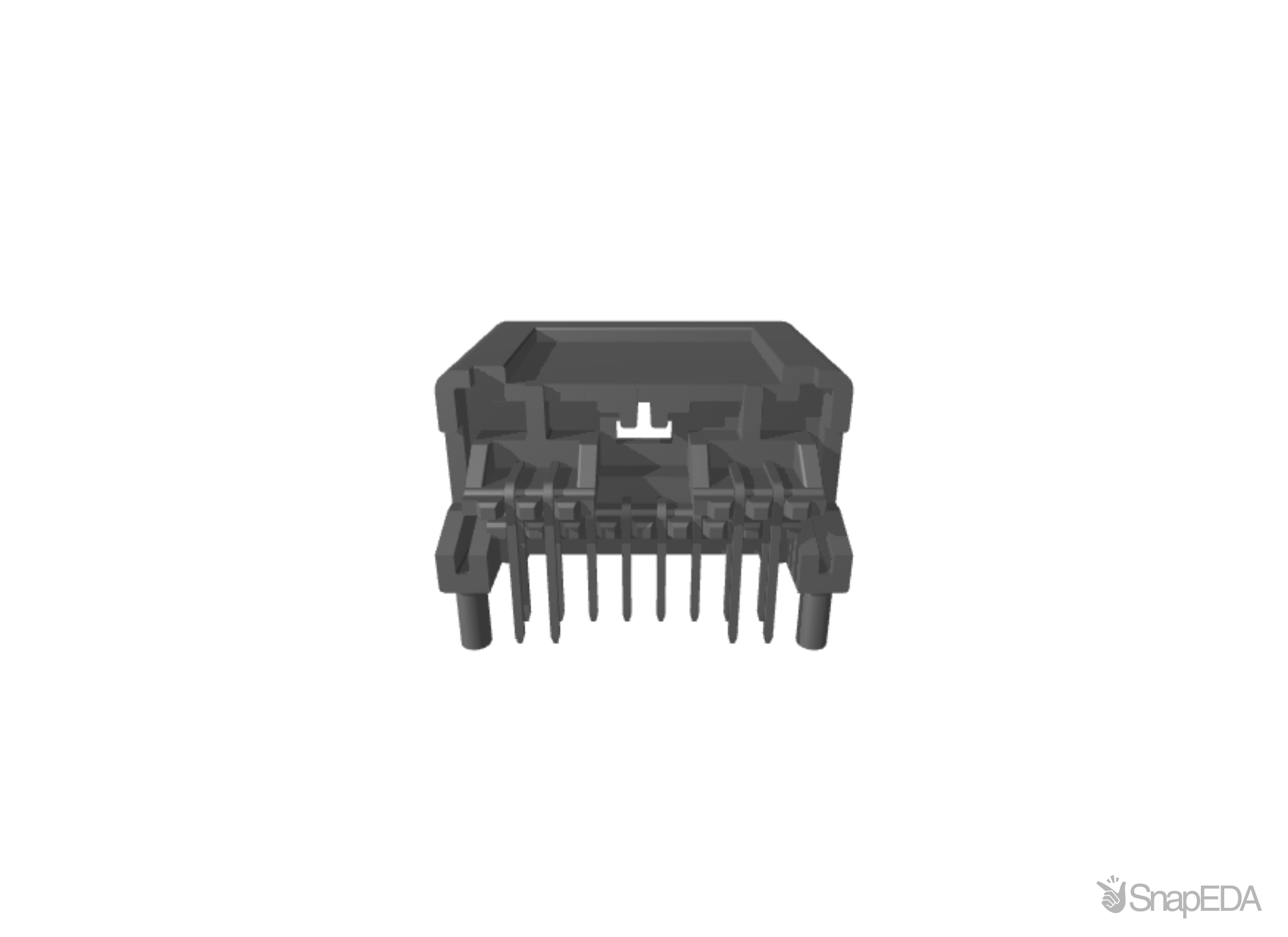

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 34826-0124
| Part Name | 34826-0124 |
| Manufacturer | Molex |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Type | PCB Header |
| Series | Mini50 |
| Current Rating (A) | 4 (A) |
| Contact Plating | Tin over Nickel |
| Mounting Type | Through Hole |
| Gender | Male |
| Colour | Black |
| Termination Method | Solder |
| Height | 15.87 (mm) |
| Housing Material | Thermoplastic |
| Width | 22.63 (mm) |
| Depth | 19.5 (mm) |
| Number Of Rows | 2 |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Brass |
| Number Of Contacts | 12 |
| Maximum Operating Temperature | +105 (°C) |
| Series Number | 34826 |
Inventory for the 34826-0124 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
975
|
|
Visit Site | |
| Conrad |
125,428
|
|
Visit Site | |
| Farnell UK |
112,886
|
|
Visit Site | |
| Heilind Americas |
146
|
|
Visit Site | |
| Newark |
558
|
|
Visit Site | |
| Powell Electronics |
82,782
|
|
Visit Site | |
| RS UK |
55
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| element14 Singapore |
558
|
|
Visit Site |
No issues have been reported for the 34826-0124
