3502330KFT
330 kOhms ±1% 2W Chip Resistor 2010 (5025 Metric) Thick Film
Availability: In Stock
Package Type: 5025
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3502330KFT by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

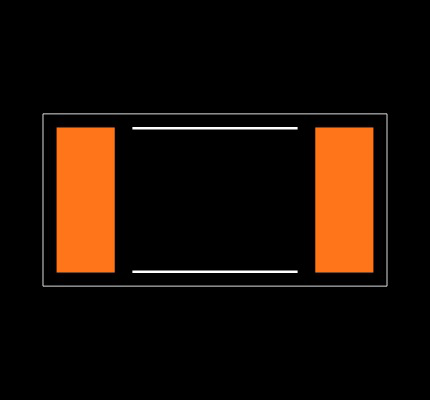

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3502330KFT
| Part Name | 3502330KFT |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 5 x 2.5 x 1.1 |
| Product Type | Fixed Resistor |
| Voltage Rating (V) | 200 |
| Element Type | Thick Film |
| Resistor Type | Power Resistor |
| Size Code | 2010 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 3-2176398-4 |
| Temperature Coefficient | ±100 |
| Resistance | 330K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | 2 |
| Element Material | Metal Film |
| Tolerance | 1% |
| Resistance Range | 1kΩ – 1MΩ |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Package Case | 2010 (5025M) |
| Series | 3502 |
| Resistance | 330 (kΩ) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 2 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Tolerance | ±1 (%) |
