350429-4
SnapVerified
Header Vert pcb 3 way Pin Mate-n-Lok | TE Connectivity 350429-4
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 350429-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

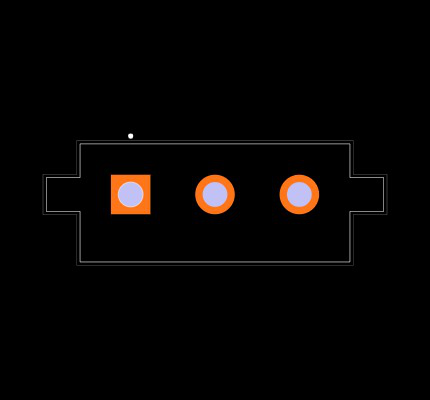

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 350429-4
| Part Name | 350429-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 6.35 |
| Agency/Standard | UL |
| Circuit Application | Power |
| Underplate Material Thickness | 1.27 |
| UL Flammability Rating | UL 94V-2 |
| Housing Material | Nylon |
| Width | 7.62 |
| Contact Termination Area Plating Thickness | 100 |
| Operating Voltage (V) | 600 |
| For Use With | Mates with Plug Housing (Using Socket Contacts) |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Through Hole |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.57 |
| Termination Post & Tail Length | .12 |
| CSA File Number | LR7189 |
| TE Internal Number | 350429-4 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Product Type | Header |
| Multiple Contact Types | Without |
| Mating Retention | With |
| Length | 20.32 |
| Operating Temperature Range | -40 – 221 |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 100 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 3 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| CSA Rating | Certified |
| VDE Tested | Yes |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Contact Retention | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| Mating Retention Type | Positive Lock |
| Height | 13.97 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 12 |
| Contact Mating Area Plating Thickness | 30 – 36 |
| Connector Mounting Type | Board Mount |
| Contact Type | Pin |
| Number of Power Positions | 3 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
