350539-1
SnapVerified
Connector Shell Commercial MATE-N-LOK Pin 2 13 250 VAC Nylon Natural | TE Connectivity 350539-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 350539-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

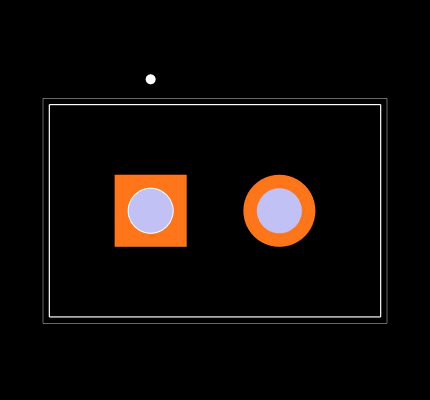

Footprint
No web preview
This Footprint is Available for

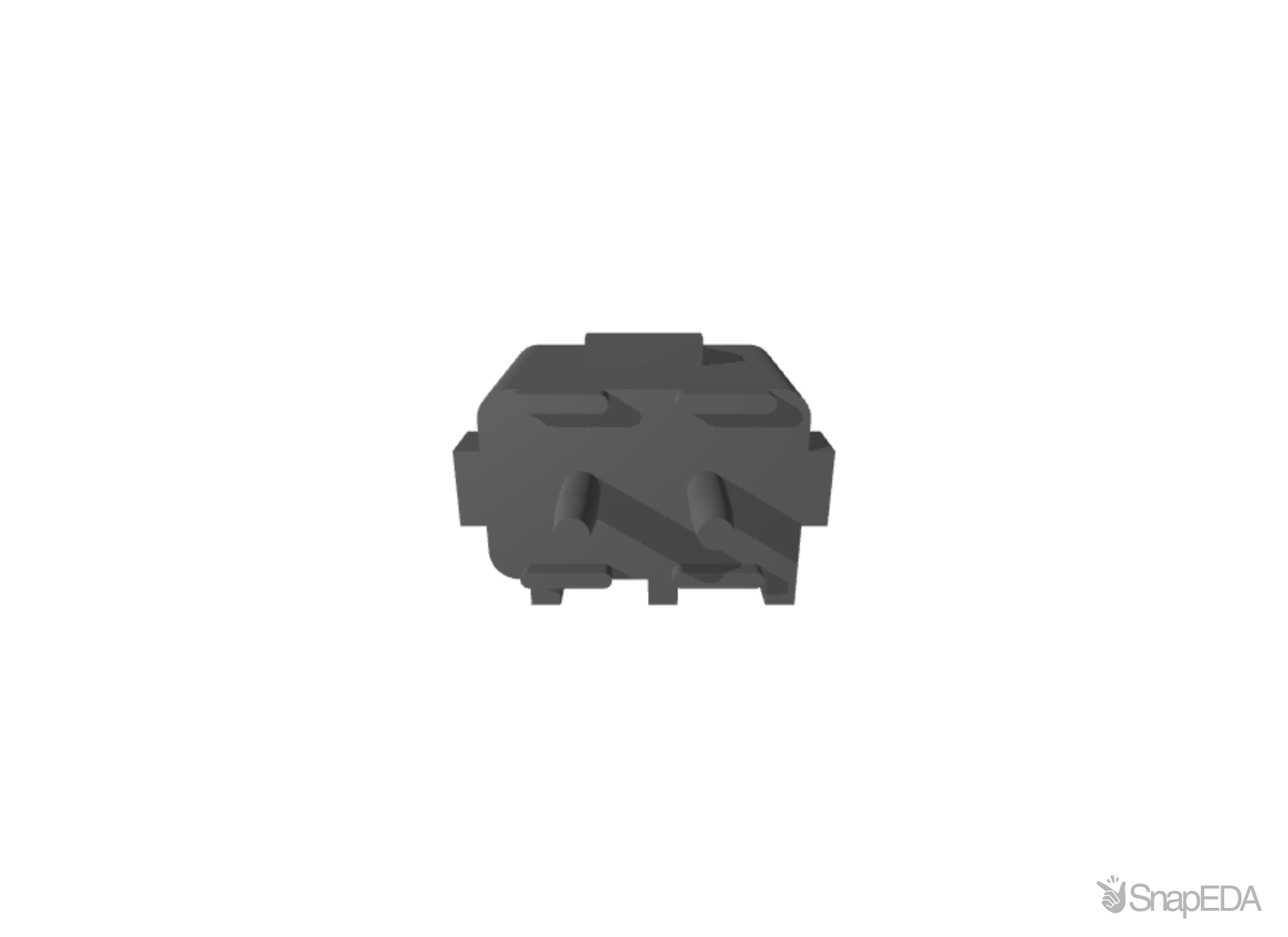

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 350539-1
| Part Name | 350539-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 5.08 |
| Agency/Standard | CSA |
| Circuit Application | Power |
| Underplate Material Thickness | 50 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon |
| Width | .375 |
| Number of Power Positions | 2 |
| Operating Voltage (V) | 250 |
| For Use With | Socket (Plug) Housing |
| UL Rating | Certified |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 2 |
| PCB Thickness (Recommended) | 1.57 |
| Termination Post & Tail Length | .12 |
| CSA File Number | LR16455 |
| TE Internal Number | 350539-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Number of Signal Positions | 0 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Bag |
| Housing Type | Receptacle |
| Packaging Quantity | 100 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Length | .515 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| VDE Tested | Yes |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Product Type | Header |
| Contact Retention | Without |
| Mating Retention Type | Positive Lock |
| Height | .33 |
| Contact Current Rating (Max) (A) | 12 |
| Contact Mating Area Plating Thickness | .76 – .91 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 100 |
