35202R2JT
3520 2R2 5%
Availability: In Stock
Package Type: 6432
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 35202R2JT by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

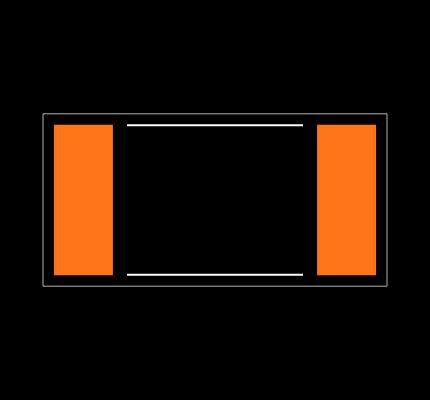

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 35202R2JT
| Part Name | 35202R2JT |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 6.4 x 3.2 x .6 |
| Voltage Rating (V) | 200 |
| Element Type | Thick Film |
| Resistor Type | Power Resistor |
| Package | 2512 |
| Resistance Range | Up to 1kΩ |
| TE Internal Number | 3-1622820-4 |
| Temperature Coefficient | ±200 |
| Resistance | 2.2 |
| Packaging Method | Taped & Reeled |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | 1 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Size Code | 2512 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 2512 (6432M) |
| Series | 3520 |
| Resistance | 2.2 (Ω) |
| Temperature Coefficient | ±350 (ppm/°C) |
| Tolerance | ±5 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 1 (W) |
| Maximum Operating Temperature | +125 (°C) |
| Technology | Thick Film |
