352033RJT
Resistor, Thick Film, Res 33 Ohms, Pwr-Rtg 1 W, Tol 5%, SMT, 2512 | TE Connectivity 352033RJT
Availability: In Stock
Package Type: 6432
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 352033RJT by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

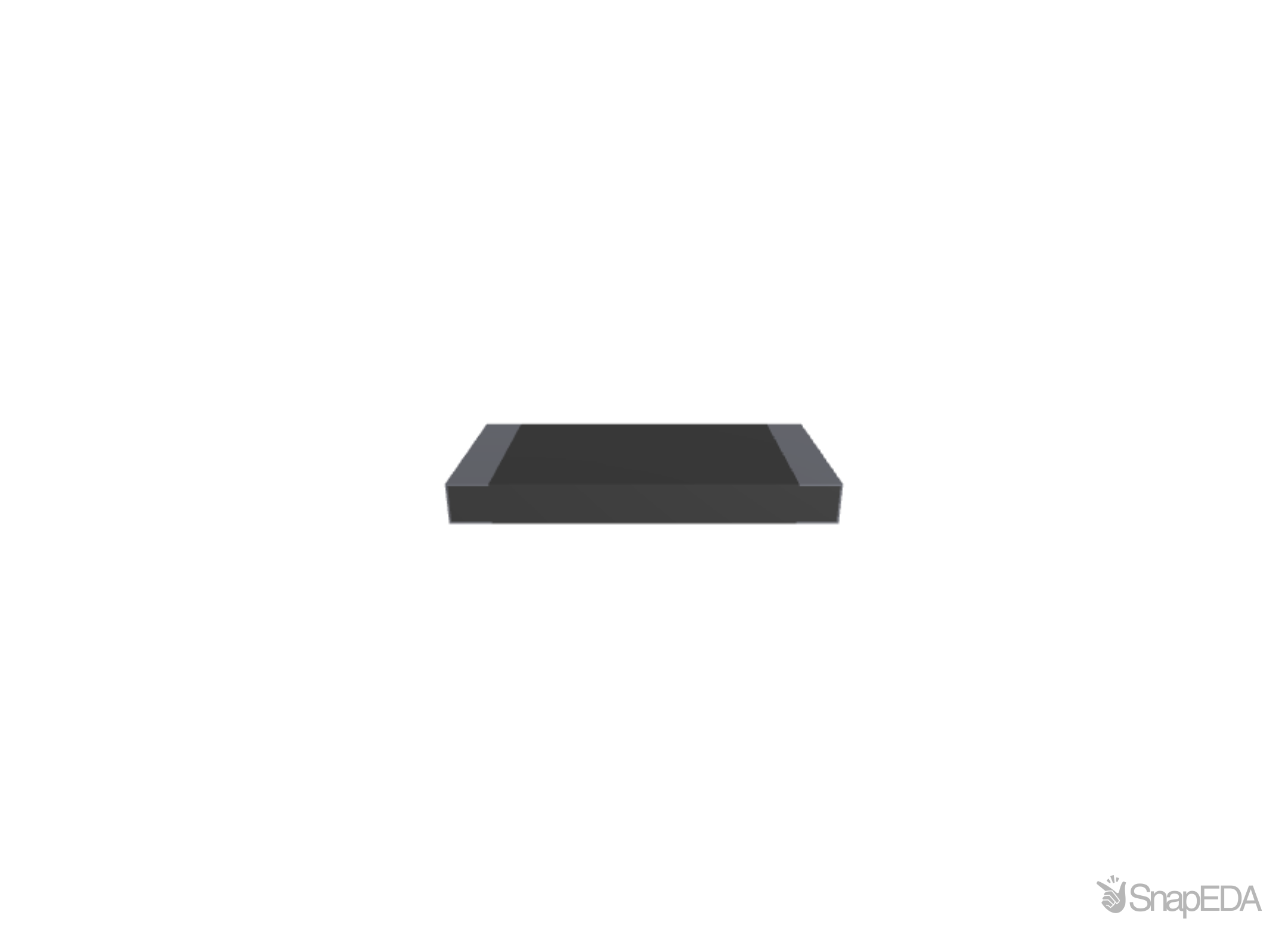

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 352033RJT
| Part Name | 352033RJT |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Mount Style | Surface Mount |
| Dimensions | 6.4 x 3.2 x .6 |
| Size Code | 2512 |
| Packaging Method | Taped & Reeled |
| Resistor Type | Power Resistor |
| Package | 2512 |
| Resistance Range | Up to 1kΩ |
| TE Internal Number | 4-1622820-0 |
| Temperature Coefficient | ±200 |
| Resistance | 33 |
| Voltage Rating (V) | 200 |
| Number of Resistors | 1 |
| Element Type | Thick Film |
| Number of Terminations | 2 |
| Termination Type | Solder |
| Power Rating | 1 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 2512 (6432M) |
| Series | 3520 |
| Resistance | 33 (Ω) |
| Temperature Coefficient | ±200 (ppm/°C) |
| Tolerance | ±5 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 1 (W) |
| Maximum Operating Temperature | +125 (°C) |
| Technology | Thick Film |
Inventory for the 352033RJT by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
18,341
|
|
Visit Site | |
|
★ Featured
|
18,687
|
|
Visit Site | |
| Farnell UK |
32,000
|
24,000 x $0.05
|
Visit Site | |
| Newark |
32,000
|
24,000 x $0.07
|
Visit Site | |
| Onlinecomponents |
352,000
|
|
Visit Site | |
| TE Store |
18,341
|
|
Visit Site | |
| Verical |
12,000
|
|
Visit Site | |
| element14 Singapore |
32,000
|
|
Visit Site |
No issues have been reported for the 352033RJT
