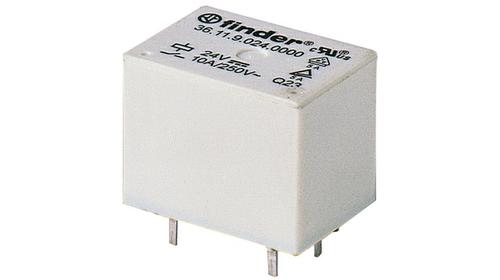

36.11.9.012.4011
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 10A/250VAC; 10A/30VDC
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 36.11.9.012.4011 by Finder and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 36.11.9.012.4011
| Part Name | 36.11.9.012.4011 |
| Manufacturer | Finder |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Coil Voltage (V) | 12 (V dc) |
| Application | Power |
| Terminal Type | Through Hole |
| Coil Resistance | 400 (Ω) |
| Life | 50 x 10³ Operations |
| Coil Power | 360 (mW) |
| Isolation Coil To Contact | 3 (kV) |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 10 (A) |
| Latching | No |
| Maximum Switching Voltage (Dc) (V) | 48 (V dc) |
| Maximum Switching Power (Dc) | 360 (mW) |
| Depth | 15.5 (mm) |
| Contact Configuration | SPDT |
| Number Of Poles | 2 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage (Ac) (V) | 250 (V ac) |
| Series | 36 Series |
| Length | 19 (mm) |
| Height | 15 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Silver Alloy |
