368388-1
40 Way Retainer For Use With MQS Series | TE Connectivity 368388-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 368388-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

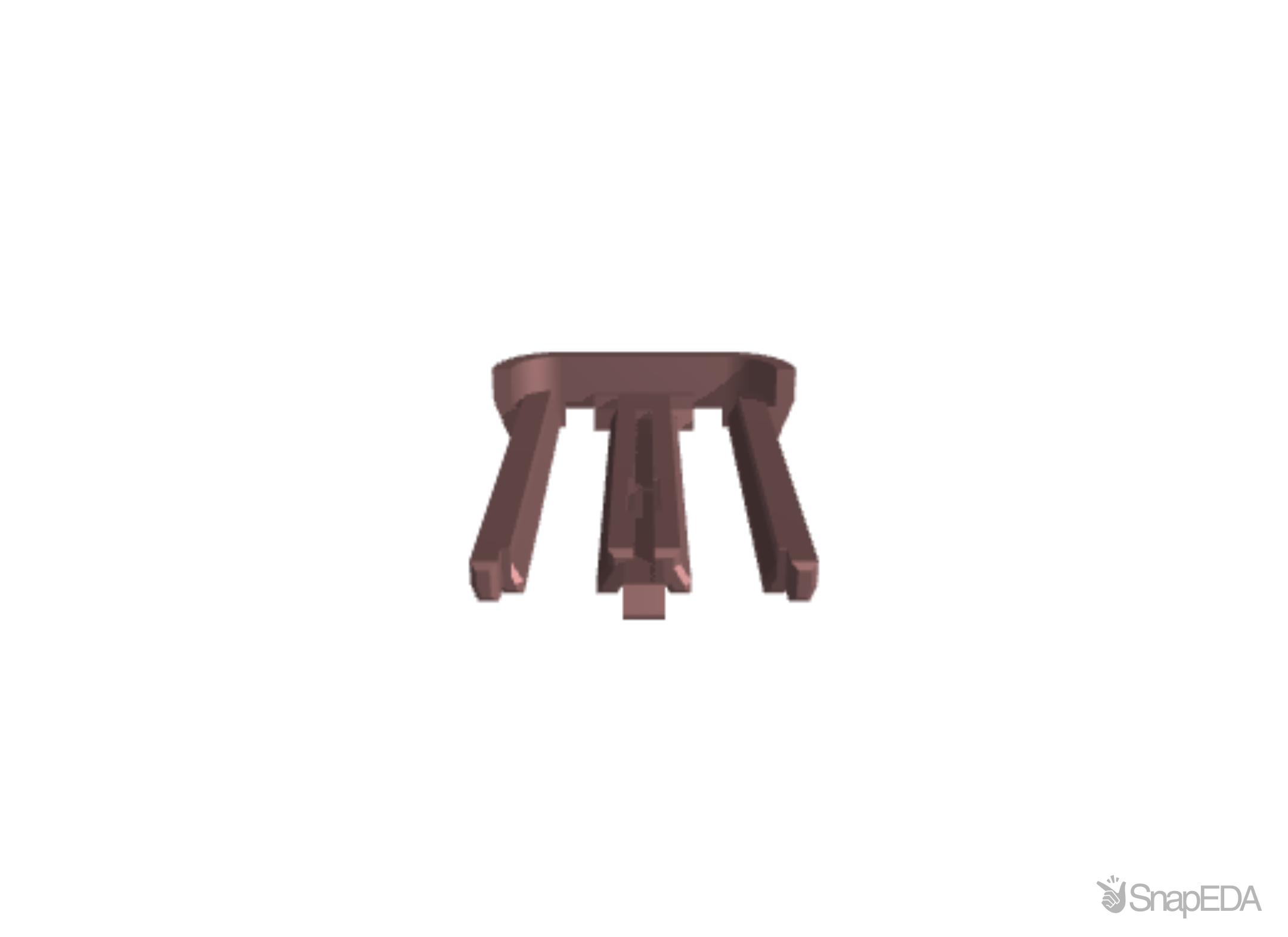

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 368388-1
| Part Name | 368388-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Connector System | Wire-to-Board |
| Operating Temperature Range | -40 to 284 |
| Color | Yellow |
| Material | PBT GF |
| Accessory Type | TPA (Terminal Position Assurance) |
| TE Internal Number | 368388-1 |
| Serviceable | Yes |
| UL Flammability Rating | UL 94-HB |
| ???? | Bag |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | MQS Series |
| Series | MQS |
| Accessory Type | Retainer |
Inventory for the 368388-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,529
|
|
Visit Site | |
|
★ Featured
|
2,435
|
|
Visit Site | |
|
★ Featured
|
1,180
|
8,880 x $0.03
|
Visit Site | |
| Arrow Europe |
1,877
|
|
Visit Site | |
| Onlinecomponents |
1,591
|
|
Visit Site | |
| Verical |
1,863
|
|
Visit Site |
No issues have been reported for the 368388-1
If you experienced any issues with this part, please report it.
