368544-1
Conn Housing PL 18 POS 3.5mm Crimp ST Cable Mount
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 368544-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

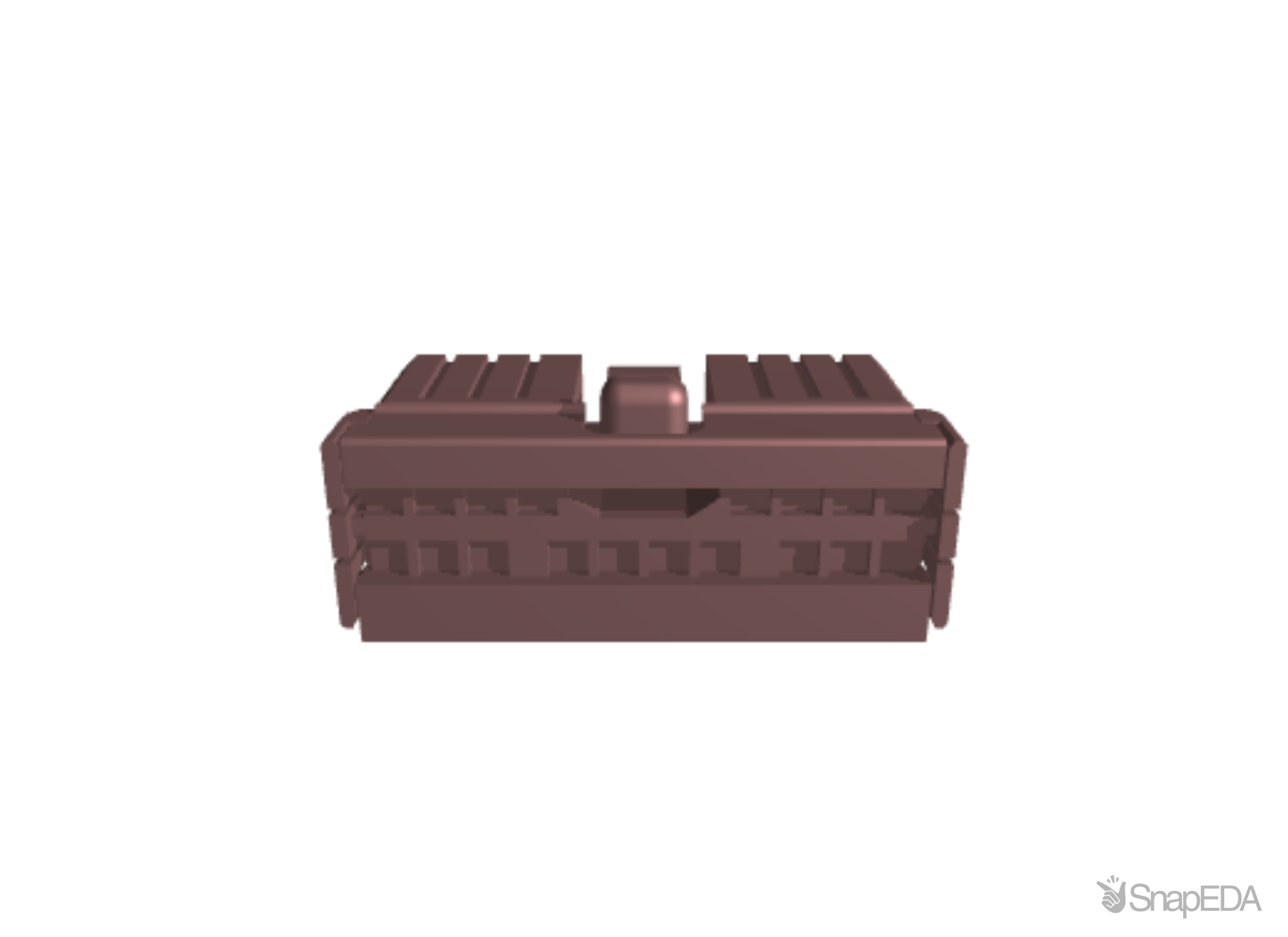

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 368544-1
| Part Name | 368544-1 |
| Manufacturer | TE Connectivity |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 25.5 |
| Connector Position Assurance Capable | No |
| Number of Positions | 18 |
| TE Internal Number | 368544-1 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Strain Relief | No |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Hybrid Connector | No |
| Packaging Method | Bag |
| Packaging Quantity | 150 |
| Body Material | PBT GF |
| RoHS | True |
| Mating Tab Width | .071 |
| Sealable | No |
| Color | White |
| Length | 42.3 |
| Height | 21.6 |
| Row-to-Row Spacing | 5.9 |
