36946
Terminal Inline, Individual Openings (Parallel) Connector Crimp 1/0 AWG
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 36946 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

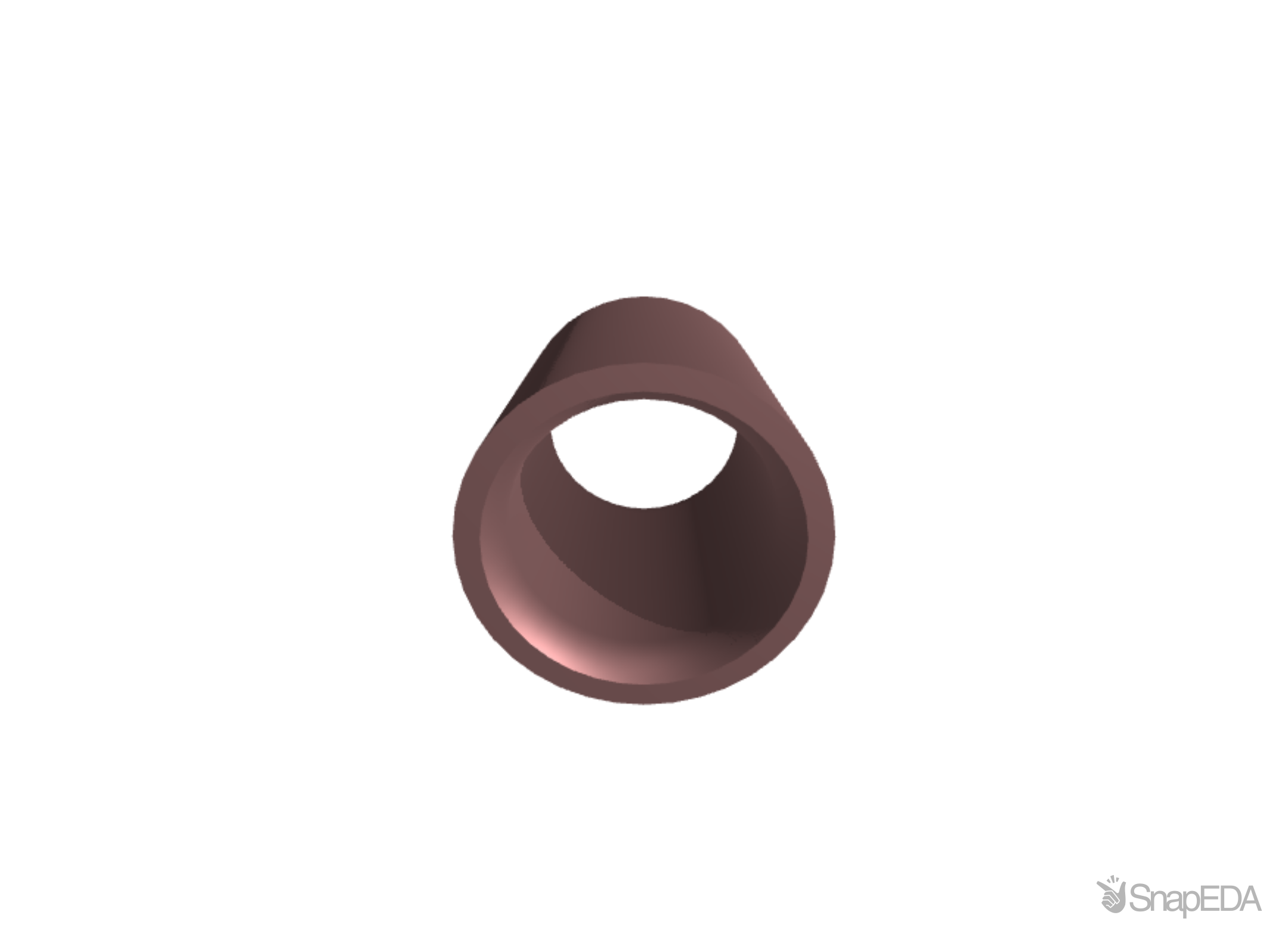

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 36946
| Part Name | 36946 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Plating Thickness | 100 |
| Material Thickness | 1.85 |
| Serrated | No |
| Support Style | Non - Insulation Support |
| Wire/Cable Type | Copper |
| Insulated | No |
| Splice Type | Parallel Splice |
| Barrel Inside Diameter | 11.27 |
| Plating Material | Tin |
| Contact Plating Material | Tin |
| TE Internal Number | 36946 |
| Military Category | No |
| Overall Length | 18.64 |
| Product Type | Splice |
| Wire Insulation Support | Without |
| Outside Diameter | .613 |
| Operating Temperature Range | 338 |
| Terminal & Splice Type | Splice |
| Packaging Method | Loose Piece |
| Packaging Quantity | 50 |
| Splice Features | Standard |
| Barrel Type | Closed Barrel |
| Splice Material | Copper |
| RoHS | True |
| Sealable | No |
| Weight per Piece | 15.245 |
| Heavy Duty | No |
| Accessory Type | Splice |
| Government Qualified | No |
| Wire Size | 41 – 60 |
