38-00-1336

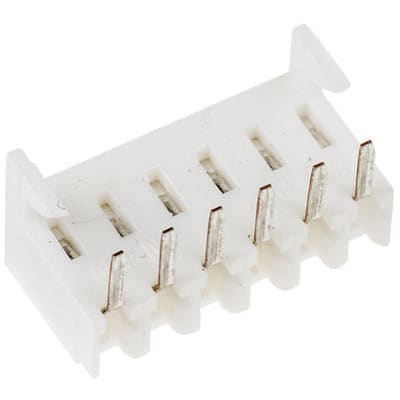

KK 254 Series 2.54mm 6 Way 1 Row Right Angle PCB Socket Strip | Molex Incorporated 38-00-1336
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 38-00-1336 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

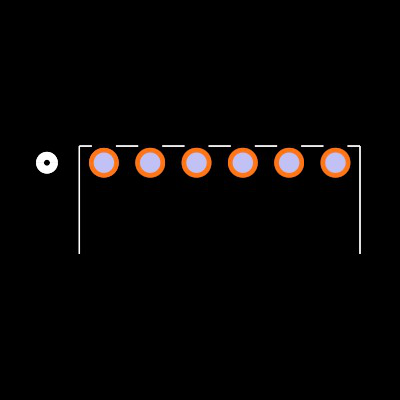

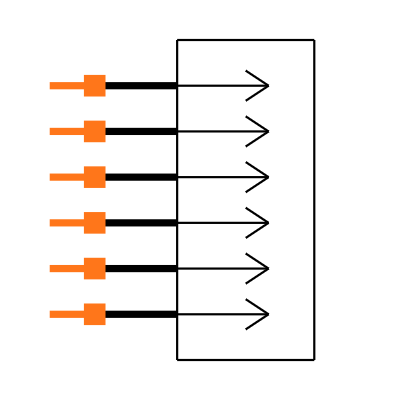

- Symbol and Footprint
- 3D Model

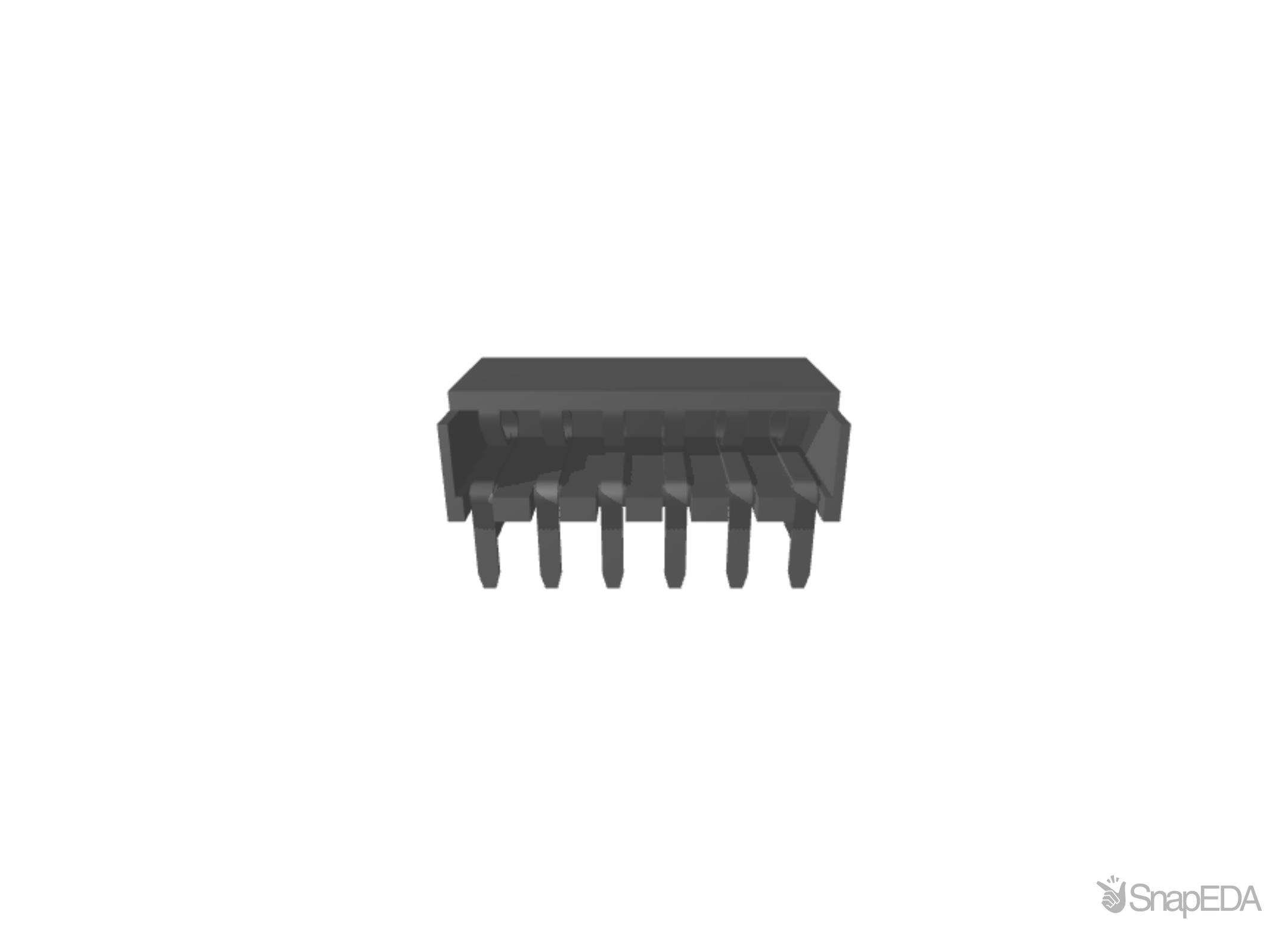

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 38-00-1336
| Part Name | 38-00-1336 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 2.5 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250 V |
| Series | KK 254 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Number Of Rows | 1 |
| Series Number | 4455 |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 6 |
| Type | Socket Strip |
| Contact Material | Bronze |
Inventory for the 38-00-1336 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5
|
|
Visit Site | |
| Onlinecomponents |
39
|
|
Visit Site | |
| Verical |
252
|
|
Visit Site |
No issues have been reported for the 38-00-1336
