382811-6

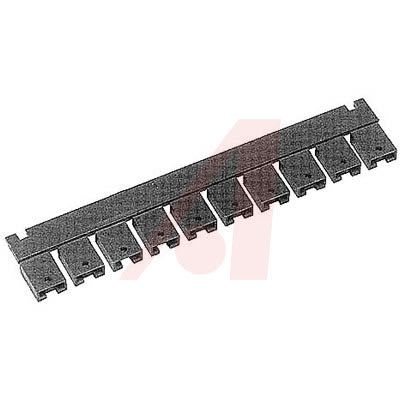

Shunt Assembly, 2-C, 0.1" Pin, Straight, Glass Filled, AMPMODU Series | TE Connectivity 382811-6
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 382811-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 382811-6
| Part Name | 382811-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 2.54 |
| Housing Material | Polyester - GF |
| Insulation Resistance | 1000 |
| Height | 6.35 |
| Number of Positions | 2 |
| Profile | Low |
| Handle | Without |
| Shunt Style | Open Top |
| TE Internal Number | 382811-6 |
| UL Rating | Recognized |
| Shunt Type | Economy |
| Housing Color | Black |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -65 – 105 |
| CSA Certified | Yes |
| Packaging Method | Box |
| Packaging Quantity | 1500 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Orientation | Straight |
| Gender | Female |
| Colour | Black |
| Pitch | 2.54 (mm) |
| Length | 63.45 (mm) |
| Width | 6.35 (mm) |
| Depth | 2.54 (mm) |
| Number Of Rows | 1 |
| Contact Plating | Gold over Nickel |
| Series | AMPMODU |
| Number Of Contacts | 2 |
| Type | Open Top |
| Contact Material | Phosphor Bronze |
Inventory for the 382811-6 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
193,105
|
|
Visit Site | |
|
★ Featured
|
262,575
|
|
Visit Site | |
|
★ Featured
|
30,000
|
1,040 x $0.29
|
Visit Site | |
| Arrow Europe |
35,523
|
|
Visit Site | |
| Avnet America |
400,807
|
1 x $0.09
|
Visit Site | |
| Heilind Americas |
39,292
|
|
Visit Site | |
| Onlinecomponents |
74,180
|
|
Visit Site | |
| Powell Electronics |
27
|
|
Visit Site | |
| RS UK |
41,250
|
10 x $0.15
|
Visit Site | |
| Sager |
76,500
|
|
Visit Site | |
| TE Connectivity |
46,840
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
102,000
|
1,500 x $0.07
|
Visit Site |
No issues have been reported for the 382811-6
