39-00-0040

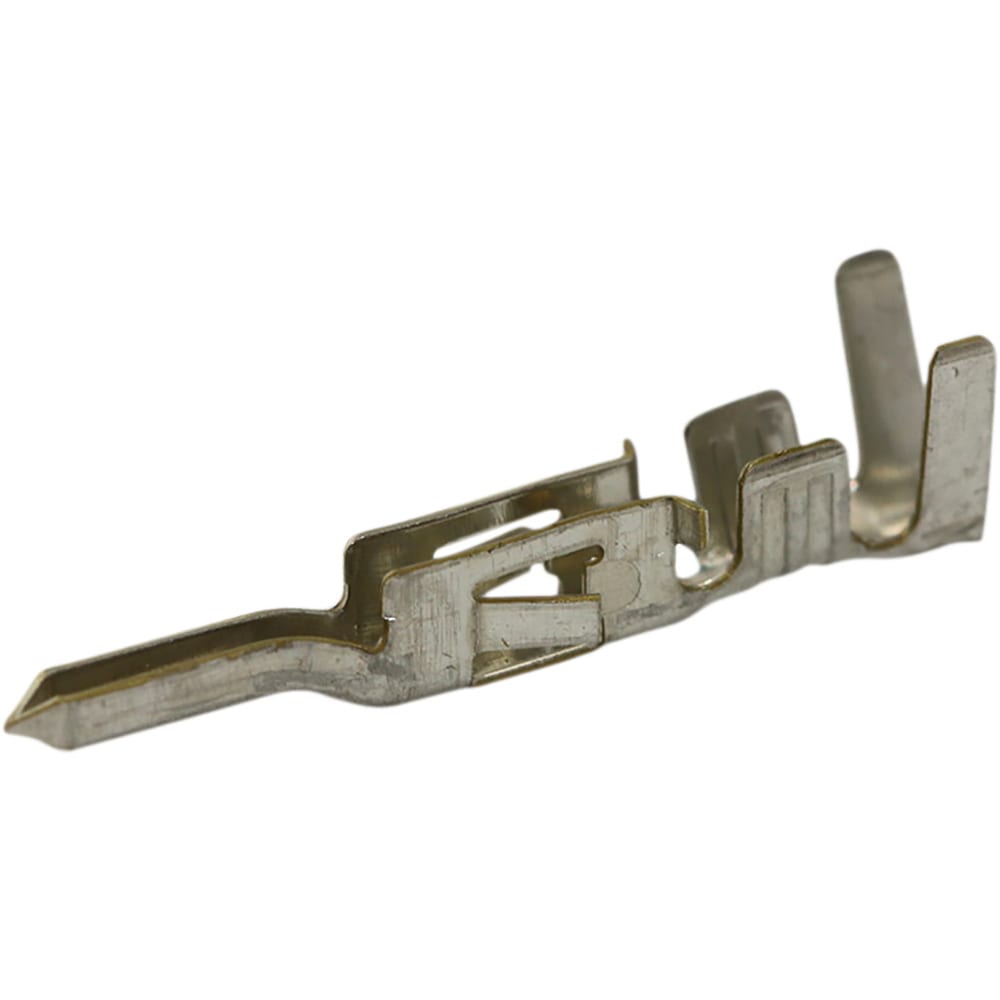

.165 pitch mini fit crimp terminal male 18-24 awg reel | Molex Incorporated 39-00-0040
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 39-00-0040 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 39-00-0040
| Part Name | 39-00-0040 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | Mini-Fit |
| Maximum Current (A) | 9 (A) |
| Minimum Wire Size (Mm²) | 0.2 (mm²) |
| Minimum Wire Size (Awg) | 24 (AWG) |
| Termination Method | Crimp |
| Maximum Wire Size (Mm²) | 0.8 (mm²) |
| Maximum Wire Size (Awg) | 18 (AWG) |
| Contact Plating | Tin |
| Gender | Male |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Material | Brass |
| Series Number | 5558 |
Inventory for the 39-00-0040 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
40,000
|
|
Visit Site | |
|
★ Featured
|
134,150
|
20,000 x $0.02
|
Visit Site | |
| Onlinecomponents |
172,000
|
|
Visit Site | |
| RS Americas |
42,000
|
|
Visit Site | |
| Verical |
176,000
|
4,000 x $0.03
|
Visit Site |
No issues have been reported for the 39-00-0040
