39-28-1083

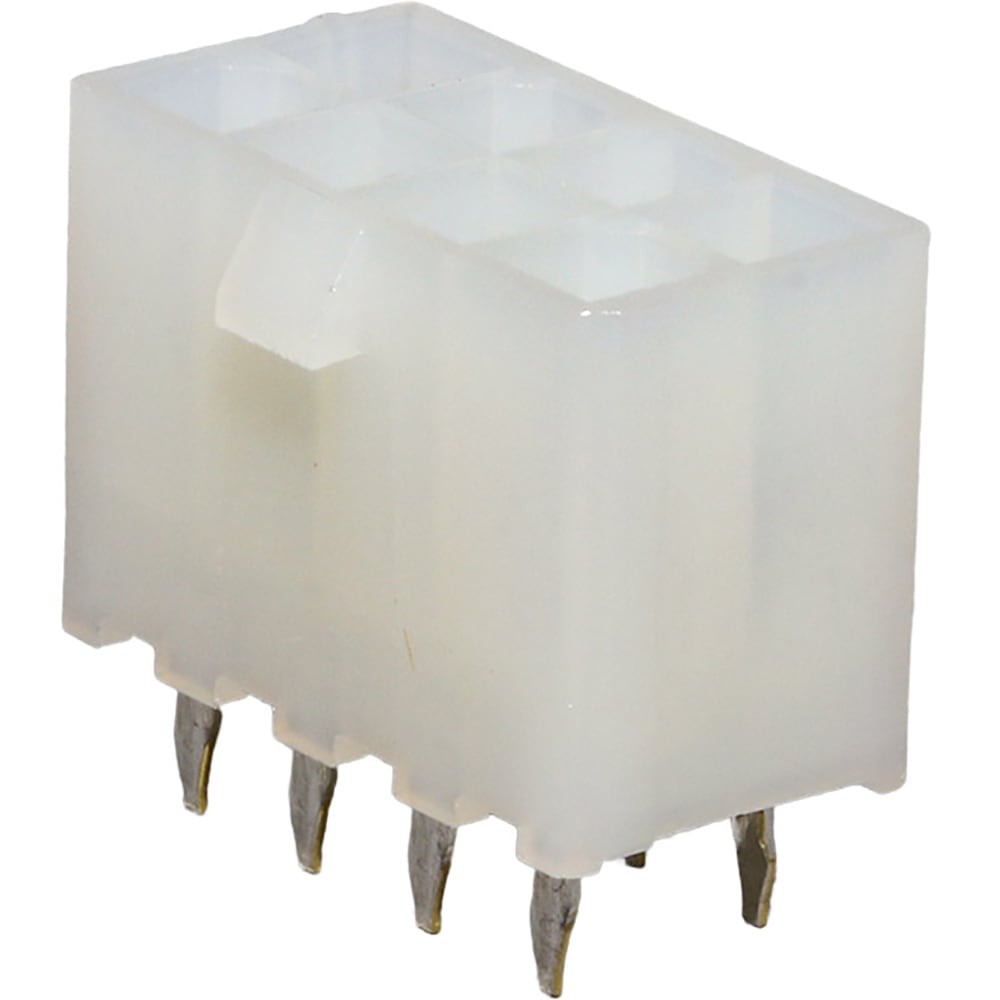

VERTICAL HEADER ASSEMBLIES-TIN PLATD 94V-2 8 CIRCUITS | Molex Incorporated 39-28-1083
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 39-28-1083 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

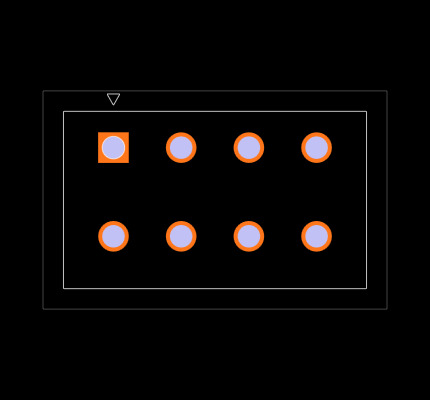

- Symbol and Footprint
- 3D Model

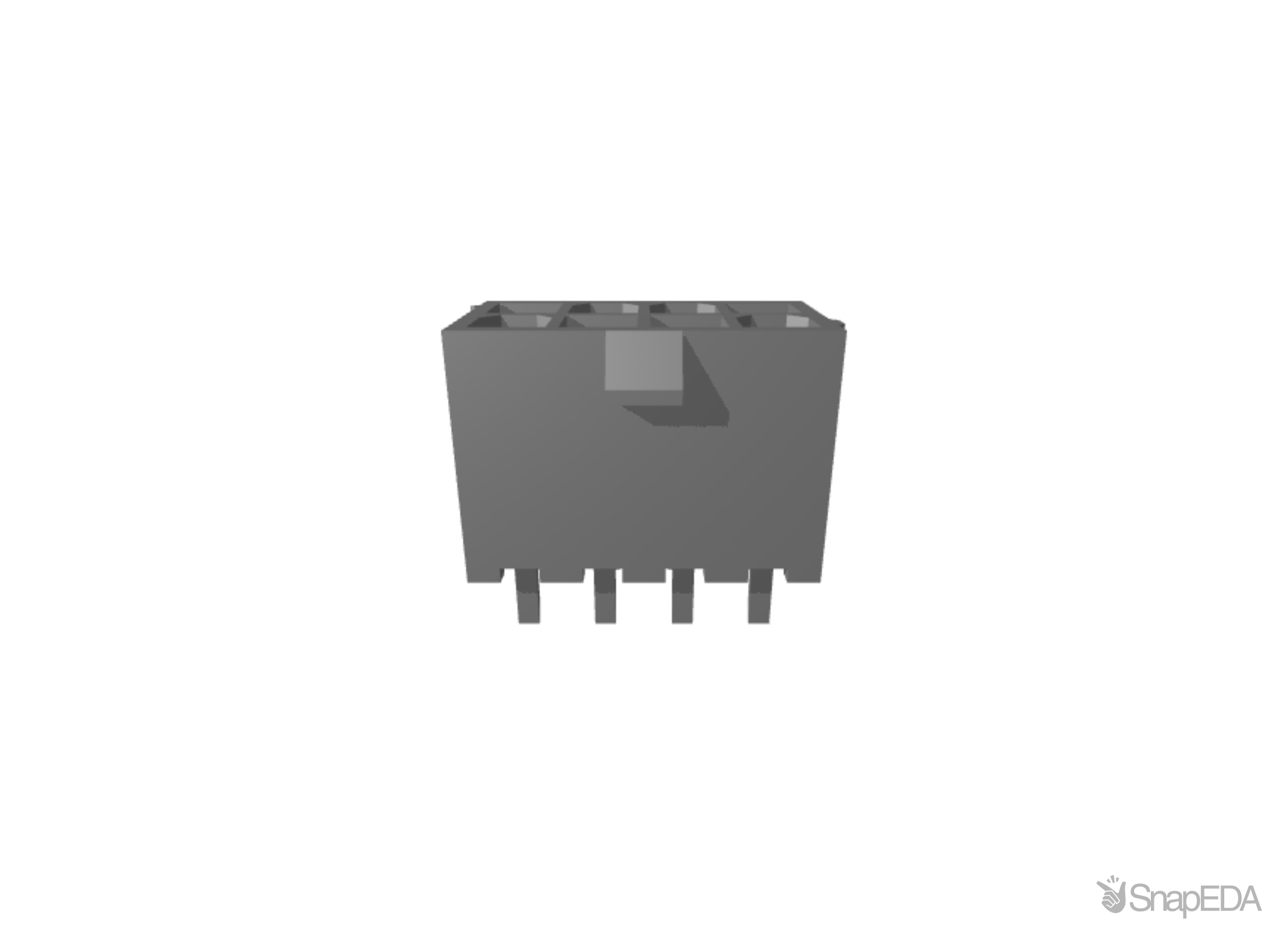

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 39-28-1083
| Part Name | 39-28-1083 |
| Manufacturer | Molex |
| Category | Connectors |
| Design Resource | https://www.molex.com/molex/custom-cable-creator/snapeda |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Current Rating (A) | 9.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600.0 V |
| Series | Mini-Fit Jr. |
| Body Orientation | Straight |
| Pitch | 4.2 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 8 |
| Series Number | 5566 |
Inventory for the 39-28-1083 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
13,027
|
1,225 x $0.25
|
Visit Site | |
| Onlinecomponents |
7,704
|
|
Visit Site | |
| RS Americas |
9,351
|
1 x $0.36
|
Visit Site | |
| Verical |
3,710
|
|
Visit Site |
No issues have been reported for the 39-28-1083
