39-28-8120

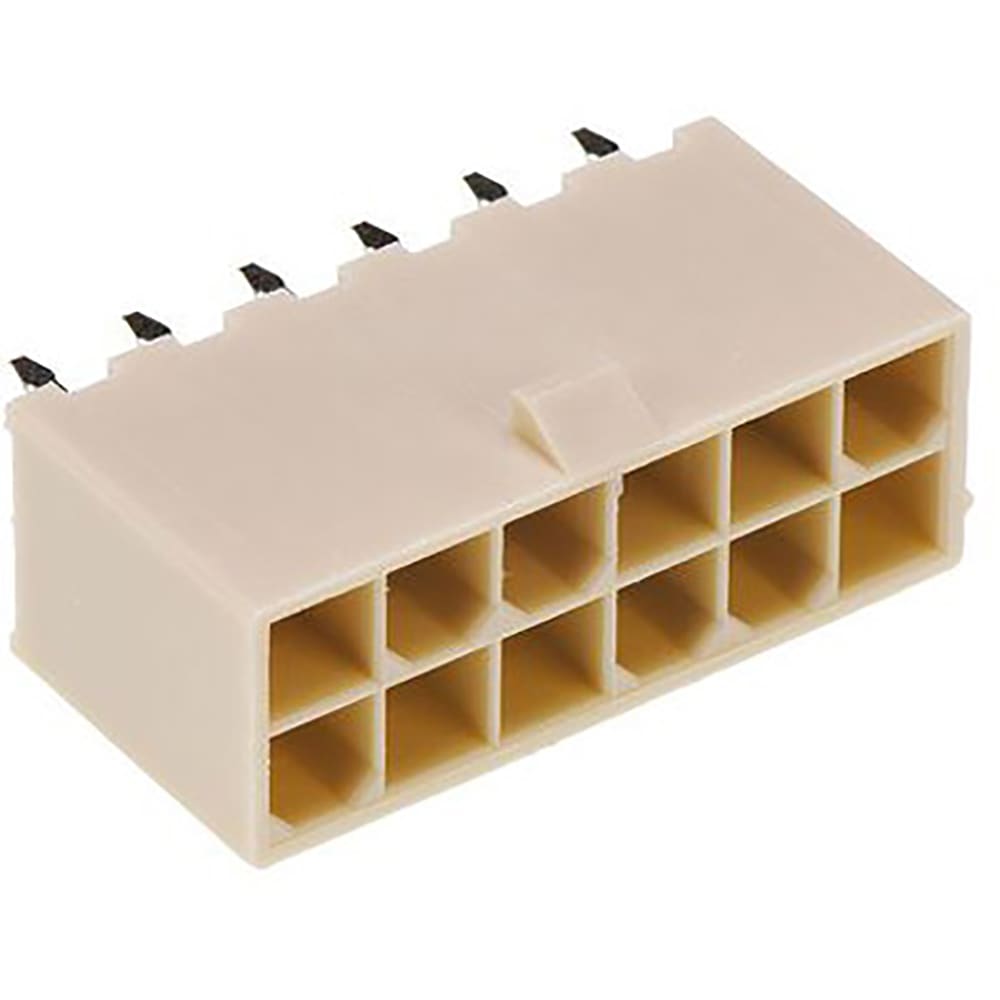

Header 4.20mm, dual row, vert, 12w, (sn) | Molex Incorporated 39-28-8120
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 39-28-8120 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

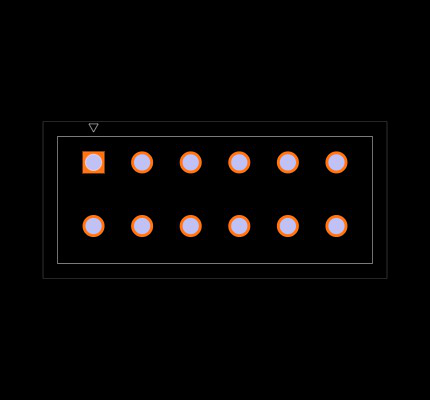

Footprint
No web preview
This Footprint is Available for

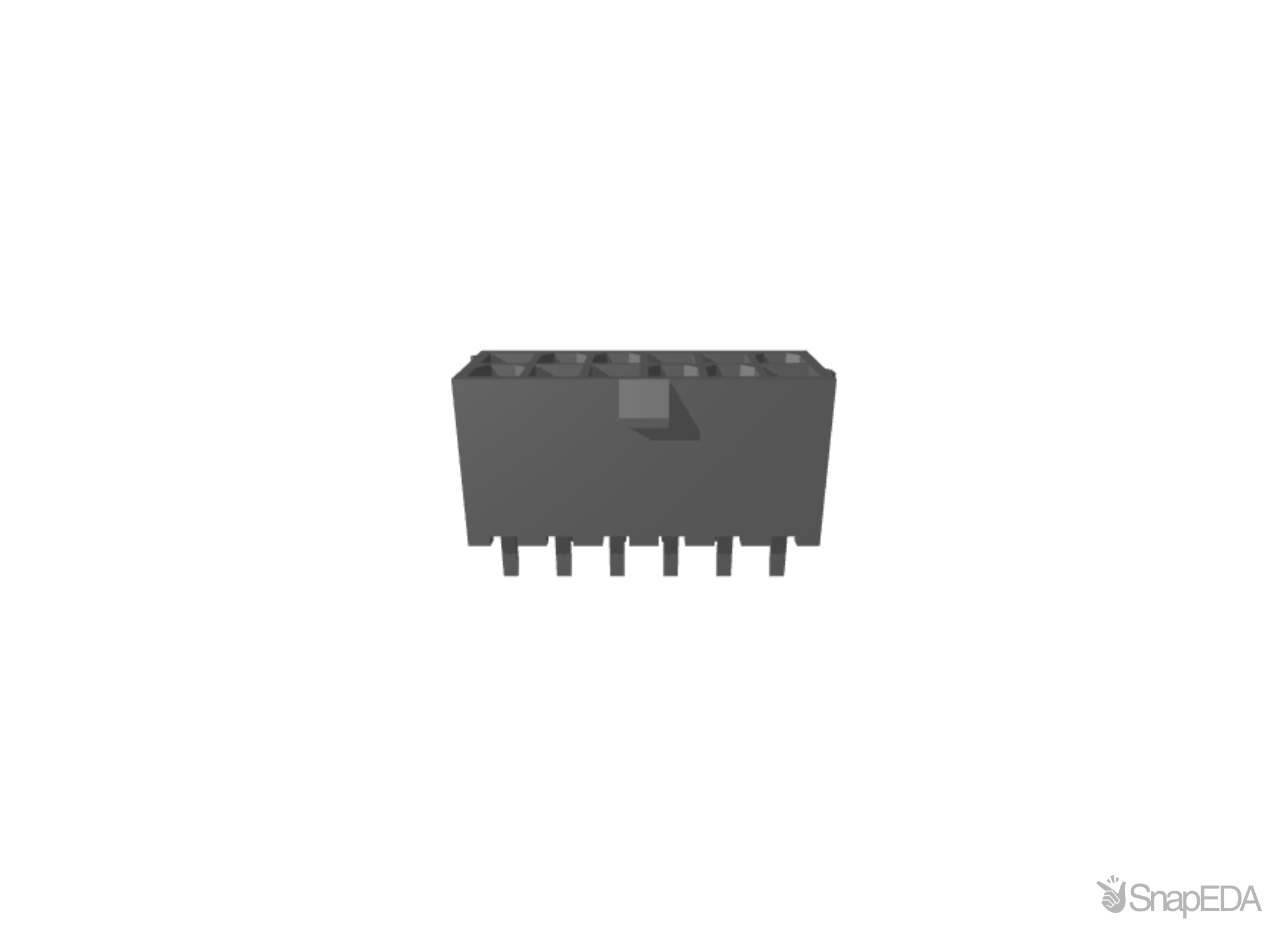

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 39-28-8120
| Part Name | 39-28-8120 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 6.0 (A) |
| Contact Plating | Tin |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600.0 V |
| Series | Mini-Fit Jr. |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 4.2 (mm) |
| Number Of Contacts | 12 |
| Series Number | 5566 |
| Contact Material | Brass |
Inventory for the 39-28-8120 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
5,707
|
|
Visit Site | |
| Chip One Stop |
14,247
|
|
Visit Site | |
| Compona AG |
|
1,600 x $0.66
|
Visit Site | |
| Conrad |
16,634
|
|
Visit Site | |
| Farnell UK |
15,865
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Interstate Connecting Components |
1,251
|
|
Visit Site | |
| Newark |
15,247
|
|
Visit Site | |
| Powell Electronics |
12,524
|
|
Visit Site | |
| Sager |
900
|
|
Visit Site | |
| TME |
72
|
|
Visit Site | |
| TTI Europe |
4,600
|
|
Visit Site | |
| element14 Singapore |
1,555
|
|
Visit Site |
No issues have been reported for the 39-28-8120
If you experienced any issues with the symbol or footprint, please report it.
