39-53-2144
14 way r/a ZIF FFC connector,1.25mm | Molex Incorporated 39-53-2144
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 39-53-2144 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

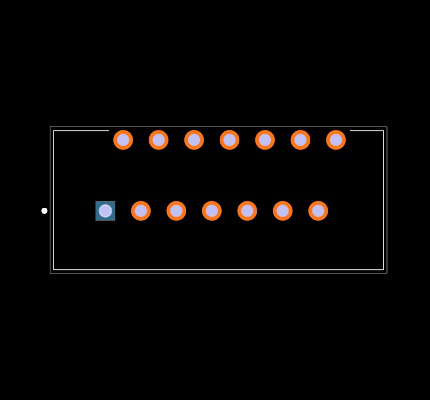

Footprint
No web preview
This Footprint is Available for

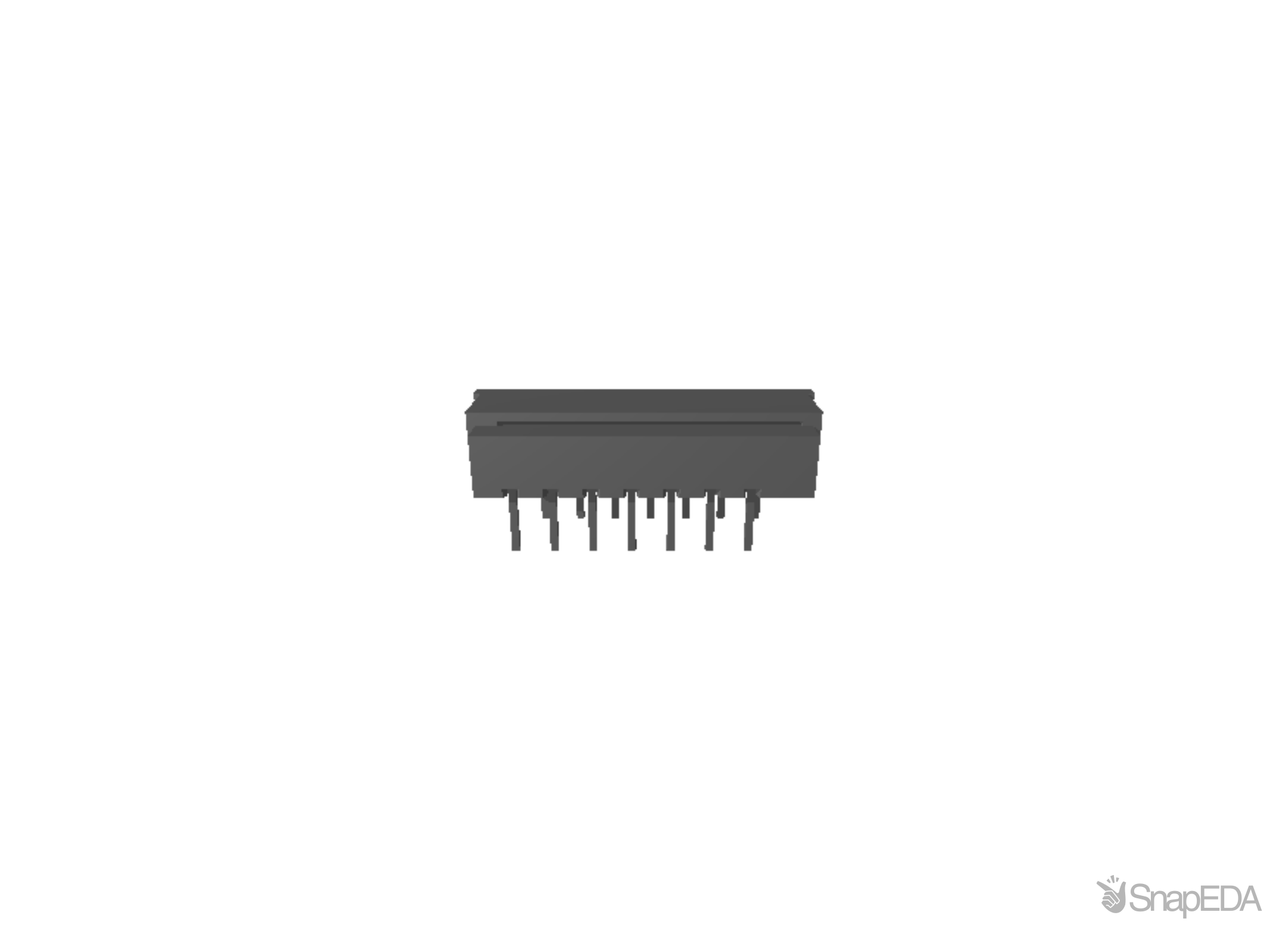

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 39-53-2144
| Part Name | 39-53-2144 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Current Rating (A) | 1 (A) |
| Minimum Operating Temperature | -20 (°C) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 200 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 1.25 (mm) |
| Housing Material | PBT |
| Number Of Rows | 1 |
| Termination Type | ZIF Top Contact |
| Termination Method | Solder |
| Contact Plating | Tin Bismuth over Nickel |
| Number Of Contacts | 14 |
| Maximum Operating Temperature | +80 (°C) |
| Series Number | 5597 |
Inventory for the 39-53-2144 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,472
|
|
Visit Site | |
|
★ Featured
|
320
|
245 x $1.24
|
Visit Site | |
| Avnet America |
2,557
|
|
Visit Site | |
| Conrad |
9
|
|
Visit Site | |
| Farnell UK |
4,018
|
|
Visit Site | |
| Heilind Americas |
1,425
|
|
Visit Site | |
| Interstate Connecting Components |
450
|
|
Visit Site | |
| Newark |
4,018
|
|
Visit Site | |
| Powell Electronics |
75
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
36
|
|
Visit Site | |
| TTI Europe |
1,600
|
|
Visit Site | |
| Verical |
36
|
|
Visit Site | |
| element14 Singapore |
4,018
|
|
Visit Site |
No issues have been reported for the 39-53-2144
