3CSH9

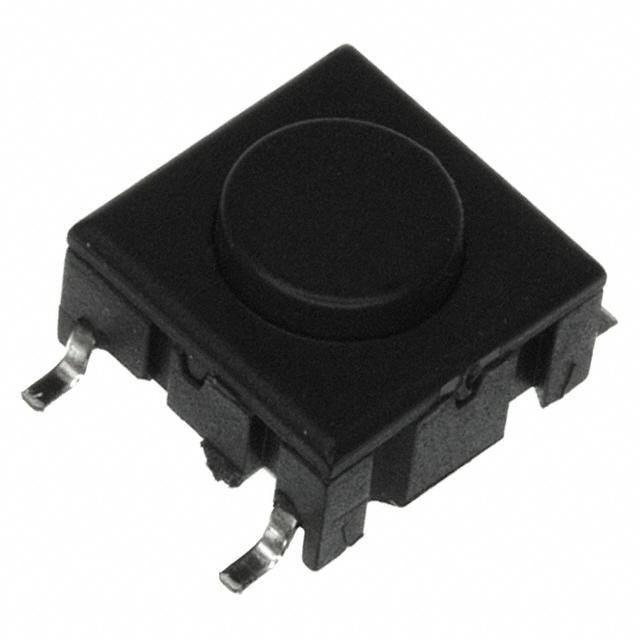

Tactile Switch SPST-NO Top Actuated Surface Mount
Availability: Out of Stock
Package Type: SOD-23
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3CSH9 by MEC Switches and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

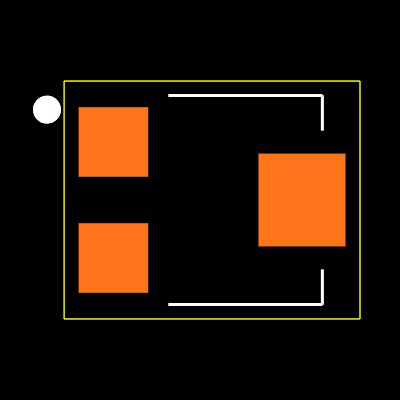

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3CSH9
| Part Name | 3CSH9 |
| Manufacturer | MEC Switches |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Actuator Length | 1.3 (mm) |
| Dimensions | 10.1 x 10.1 (mm) |
| Operating Temperature Range | -40 → +160 (°C) |
| Ip Rating | IP67 |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Voltage Rating (V) | 24 (V dc) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Configuration | SPST |
| Width | 10.1 (mm) |
| Length | 10.1 (mm) |
| Illuminated | No |
| Actuator Type | Button |
| Distrelec Product Id | 13568086 |
| Mechanical Life | 10000000 (Operations) |
| Height | 6.4 (mm) |
| Maximum Operating Temperature | +160 (°C) |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
No issues have been reported for the 3CSH9
If you experienced any issues with this part, please report it.
