3FL3

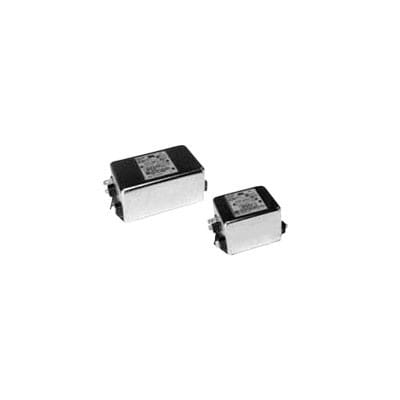

Corcom Power Line Filter EMI/RFI Filter And Accessories 3FL3=F5198 2-6609092-3 | TE Connectivity 3FL3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3FL3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3FL3
| Part Name | 3FL3 |
| Manufacturer | TE Connectivity |
| Category | Circuit Breakers, Fuses & Protection |
| Mount Style | Flanged |
| Current Rating (A) | 3.9 |
| Operating Temperature Range | -10 – 40 |
| Filter Performance Level | General Purpose |
| TE Internal Number | 2-6609092-3 |
| Output Type | Wire Lead |
| Leakage Current (Max) (250VAC, 50Hz) (A) | 4.9 |
| Leakage Current (Max) (120VAC, 60Hz) (A) | 3 |
| Ground Choke Option | No |
| Voltage (Max) (V) | 280 |
| Input Type | Wire Lead |
| Filter Type | Power Line |
| Filtered | Yes |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 3FL3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
70
|
|
Visit Site |
No issues have been reported for the 3FL3
If you experienced any issues with this part, please report it.
