3SBC1503A2
SnapVerified
RELAY, HIGH PERFORMANCE, 1/5 SIZE, 26.5VDC, 2A, DPDT, M39016/13-057L | TE Connectivity 3SBC1503A2
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3SBC1503A2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

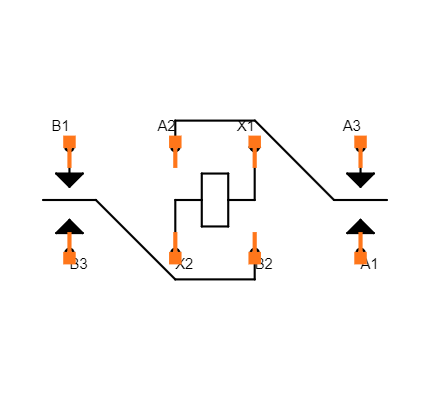

Symbol
No web preview
This Symbol is Available for

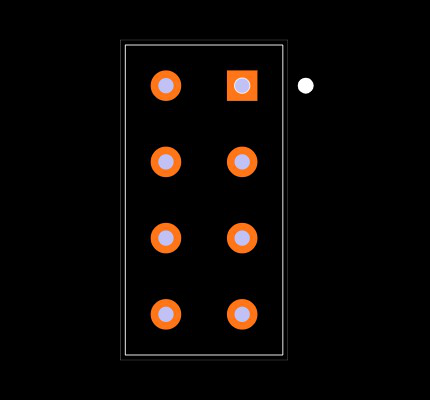

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3SBC1503A2
| Part Name | 3SBC1503A2 |
| Manufacturer | TE Connectivity |
| Category | Relays |
| Coil Power Rating (DC) | 520 |
| Coil Suppression Diode | Without |
| Relay Type | Military/Aerospace High Performance |
| MOSFET Driver | Without |
| Coil Resistance | 1350 |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Contact Current Rating (A) | 2 |
| Vibration | 30G's, 10 – 3000Hz |
| Coil Latching | Without |
| TE Internal Number | 2-1617072-2 |
| Input Voltage (V) | 26.5 |
| Product Type | Relay |
| Operating Temperature Range | -65 – 125 |
| Transistor Driver | Without |
| Coil Voltage Rating (V) | 26.5 |
| Shock | 75G's, 6ms |
| Enclosure Type | Hermetically Sealed |
| Coil Magnetic System | Non-Polarized, Monostable |
| Actuating System | DC |
| RoHS | N |
| Mounting Type | Printed Circuit Board |
| Coil Polarity Protection Diode | Without |
| Termination Type | PC Pins |
| Coil Power Measurement | Milliwatts |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 3SBC1503A2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10
|
1 x $180.94
|
Visit Site |
No issues have been reported for the 3SBC1503A2
